BQ24004 Series

Catalog

EVAL MOD FOR BQ24004

Part	Secondary Attributes	Type	Primary Attributes	Utilized IC / Part	Function	Supplied Contents	Programmable Features	Fault Protection	Operating Temperature [Max]	Operating Temperature [Min]	Battery Chemistry	Voltage - Supply (Max) [Max]	Supplier Device Package	Charge Current - Max [Max]	Battery Pack Voltage	Current - Charging	Number of Cells	Mounting Type	Package / Case	Package / Case [custom]	Package / Case

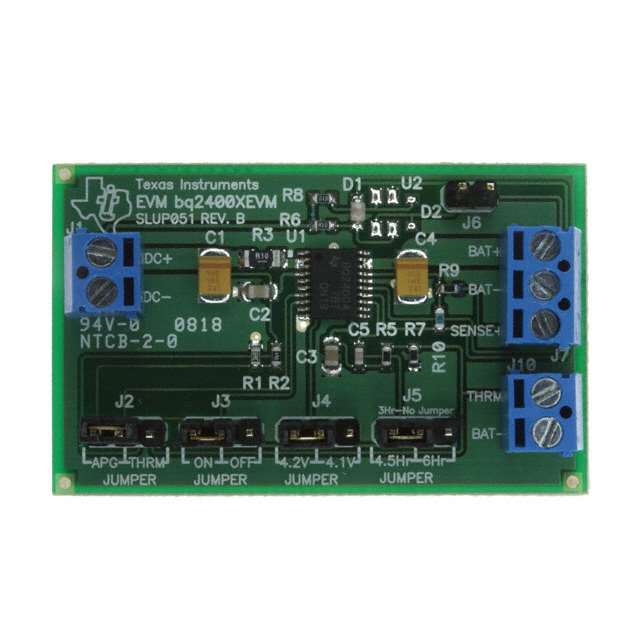

Texas Instruments BQ24004EVM	Cell Temperature Monitoring Safety Timer Status LEDs	Power Management	Li-Ion / Li-Pol (1 Cell)	BQ24004/5/6	Battery Charger	Board(s)
Texas Instruments BQ24004PWPG4							Current Timer	Over Temperature	70 °C	-40 °C	Lithium Ion	10 V	20-HTSSOP	1.2 A	8.4 V	Constant	2	Surface Mount	20-PowerTSSOP	4.4 mm	0.173 in
Texas Instruments BQ24004PWP							Current Timer	Over Temperature	70 °C	-40 °C	Lithium Ion	10 V	20-HTSSOP	1.2 A	8.4 V	Constant	2	Surface Mount	20-PowerTSSOP	4.4 mm	0.173 in
Texas Instruments BQ24004PWPRG4							Current Timer	Over Temperature	70 °C	-40 °C	Lithium Ion	10 V	20-HTSSOP	1.2 A	8.4 V	Constant	2	Surface Mount	20-PowerTSSOP	4.4 mm	0.173 in
