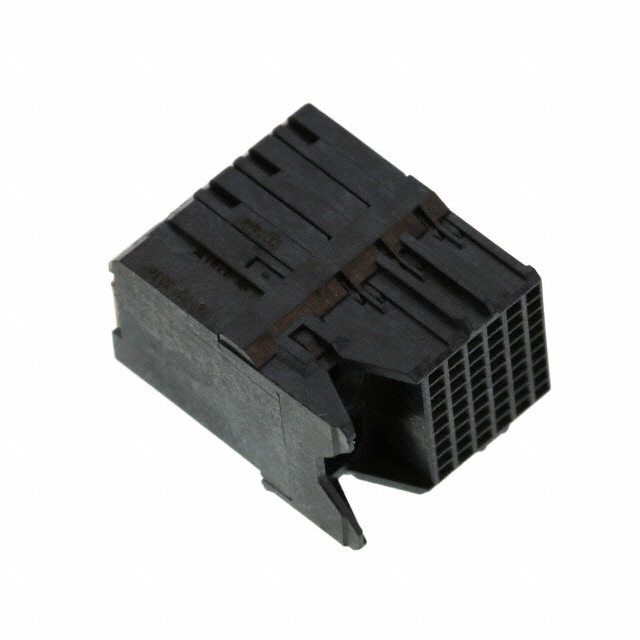

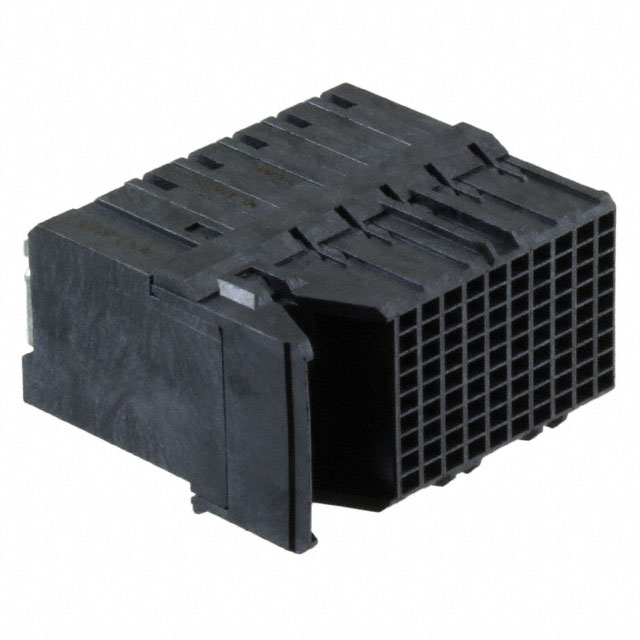

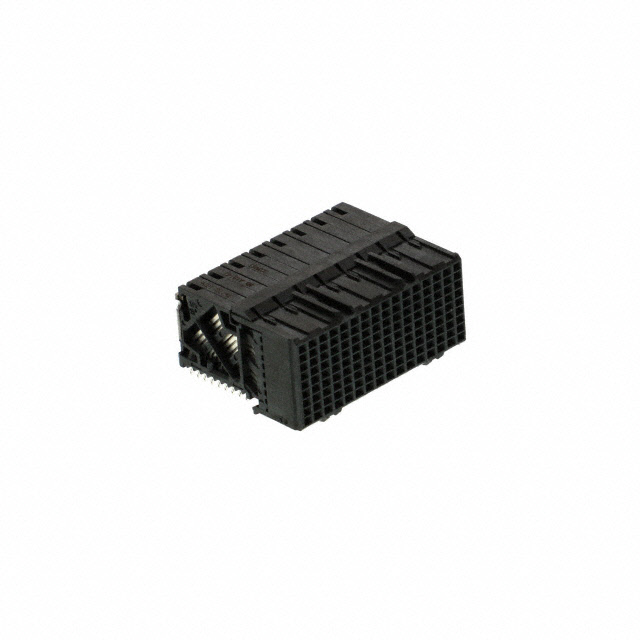

076170 Series

Manufacturer: Molex

Catalog

CONN RCPT IMPACT 54POS EDGE MNT

Part	Number of Rows	Material Flammability Rating	Mounting Type	Number of Positions	Number of Columns	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Pitch [x]	Pitch [x]	Color	Contact Layout, Typical	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Connector Style	Connector Type	Voltage Rating	Contact Layout, Typical	Current Rating (Amps)
Molex 0761703036	9	UL94 V-0	Board Edge Right Angle Through Hole	54	6	85 °C	-55 °C	All	0.053 in	1.35 mm	Black	18 Differential Pairs	Press-Fit	0.76 Ám	30 Áin	Gold	Board Guide	Guide Left Impact	Receptacle Female Sockets	30 VDC

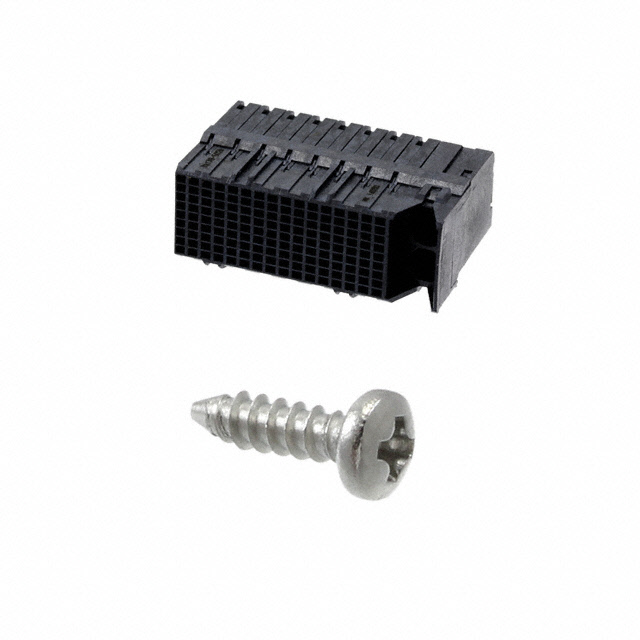

Molex 0761705026	9	UL94 V-0	Board Edge Right Angle Through Hole	144	16	85 °C	-55 °C	All	0.053 in	1.35 mm	Black		Press-Fit	0.76 Ám	30 Áin	Gold	Board Guide		Receptacle Female Sockets	30 VDC	48 Differential Pairs
Molex 0761703420	9	UL94 V-0	Board Edge Right Angle Through Hole	90	10	85 °C	-55 °C	All	0.053 in	1.35 mm	Black	30 Differential Pairs	Press-Fit	0.76 Ám	30 Áin	Gold	Board Guide	Guide Left Impact	Receptacle Female Sockets	30 VDC

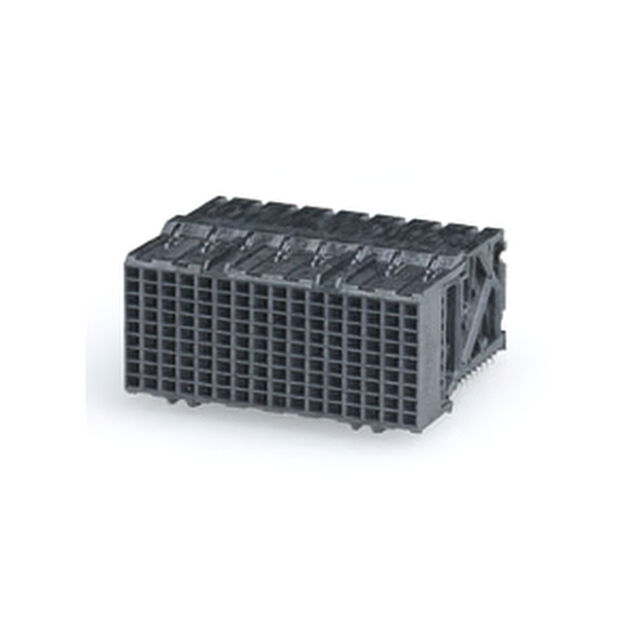

Molex 0761701016	9	UL94 V-0	Board Edge Right Angle Through Hole	144	16	85 °C	-55 °C	All	0.053 in	1.35 mm	Black		Press-Fit	0.76 Ám	30 Áin	Gold		Impact	Receptacle Female Sockets	30 VDC	48 Differential Pairs

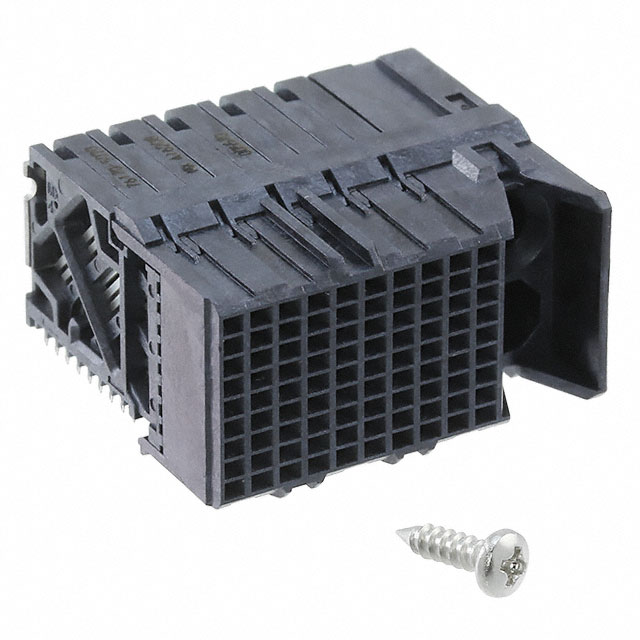

Molex 0761705020	9	UL94 V-0	Board Edge Right Angle Through Hole	90	10	85 °C	-55 °C	All	0.053 in	1.35 mm	Black	30 Differential Pairs	Press-Fit	0.76 Ám	30 Áin	Gold	Board Guide		Receptacle Female Sockets	30 VDC
Molex 0761703116	9	UL94 V-0	Board Edge Right Angle Through Hole	144	16	85 °C	-55 °C	All	0.053 in	1.35 mm	Black		Press-Fit	0.76 Ám	30 Áin	Gold	Board Guide	Guide Left Impact	Receptacle Female Sockets	30 VDC	48 Differential Pairs

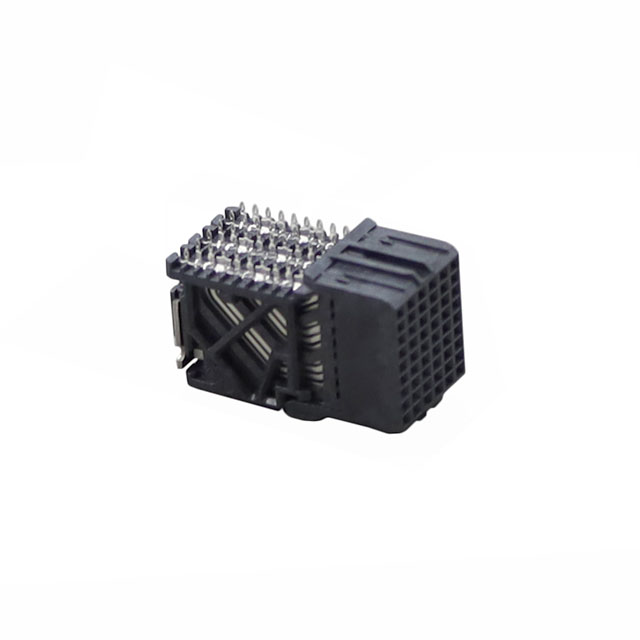

Molex 0761701036	9	UL94 V-0	Board Edge Right Angle Through Hole	54	6	85 °C	-55 °C	All	0.053 in	1.35 mm	Black	18 Differential Pairs	Press-Fit	0.76 Ám	30 Áin	Gold		Impact	Receptacle Female Sockets	30 VDC
Molex 0761705010	9	UL94 V-0	Board Edge Right Angle Through Hole	90	10	85 °C	-55 °C	All	0.053 in	1.35 mm	Black	30 Differential Pairs	Press-Fit	0.76 Ám	30 Áin	Gold	Board Guide		Receptacle Female Sockets	30 VDC
Molex 0761701026	9	UL94 V-0	Board Edge Right Angle Through Hole	144	16	85 °C	-55 °C	All	0.053 in	1.35 mm	Black		Press-Fit	0.76 Ám	30 Áin	Gold		Impact	Receptacle Female Sockets	30 VDC	48 Differential Pairs
Molex 0761705236	9	UL94 V-0	Board Edge Right Angle Through Hole	54	6	85 °C	-55 °C	All	0.075 in	1.9 mm	Black	18 Differential Pairs	Press-Fit	0.76 Ám	30 Áin	Gold	Board Guide		Receptacle Female Sockets	30 VAC		75 mA
