2339210 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

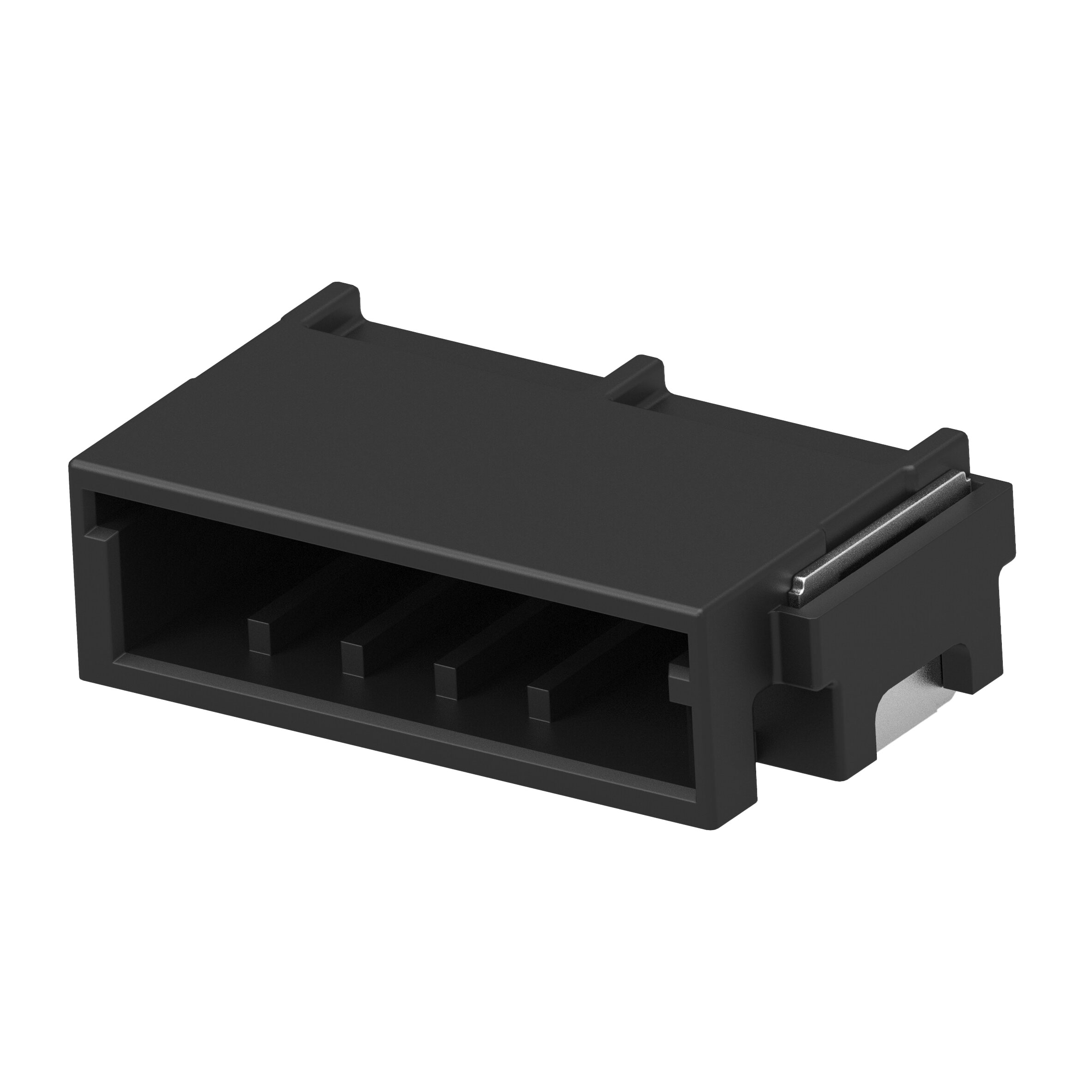

10POS,TAB0.5X0.4,HDR ASSY,90 DEG
| Part | Termination | Style | Number of Rows | Connector Type | Insulation Height | Insulation Height | Contact Shape | Insulation Color | Number of Positions | Mounting Type | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Contact Length - Mating | Contact Length - Mating | Features | Number of Positions Loaded | Voltage Rating | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Insulation Material | Material Flammability Rating | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Solder | Board to Cable/Wire | 1 | Header | 5.97 mm | 0.235 in | Square | Black | 10 | Surface Mount Right Angle | Copper Alloy | 12 µin | 0.3 µm | Tab | 4 mm | 0.157 in | Solder Retention | All | 12 V | Push-Pull | 39.4 µin | 1 µm | 0.05 in | 1.27 mm | Glass Filled Nylon 4T Polyamide (PA4T) | UL94 HB | Tin | 130 °C | -40 °C | Shrouded - 4 Wall |
