470047CY Series

Catalog

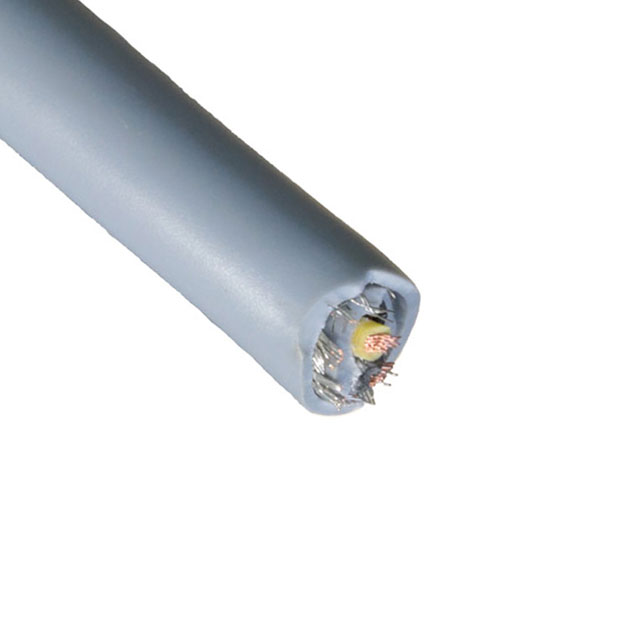

MULTICONDUCTOR CABLE, PRO-MET®, CY CONTROL, SHIELDED, 4 CONDUCTOR, 19 AWG, 0.75 MM², 164 FT, 50 M

Part	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Voltage	Wire Gauge	Cable Type	Shield Coverage	Conductor Insulation	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [diameter]	Shield Material	Features	Conductor Material	Shield Type	Usage	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 470047CY GE321	Gray	0.337 "	8.56 mm	80 °C	-40 C	50 m	164 ft	300 VDC	19 AWG	Multi-Conductor	80 %	Poly-Vinyl Chloride (PVC)	4	0.0354 in	0.9 mm	30	0.007 in	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	Braid	Industrial	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470047CY CL432	Clear	0.337 "	8.56 mm	80 °C	-40 C	1 m 10 m	3.28 ft 32.81 ft	300 VDC	19 AWG	Multi-Conductor	80 %	Poly-Vinyl Chloride (PVC)	4	0.0354 in	0.9 mm	30	0.007 in	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	Braid	Industrial	Poly-Vinyl Chloride (PVC)	98.43 ft 984.3 ft	30 m 300 m
ALPHA WIRE 470047CY GE432	Gray	0.337 "	8.56 mm	80 °C	-40 C	10 m 20 m	32.81 ft 65.62 ft	300 VDC	19 AWG	Multi-Conductor	80 %	Poly-Vinyl Chloride (PVC)	4	0.0354 in	0.9 mm	30	0.007 in	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	Braid	Industrial	Poly-Vinyl Chloride (PVC)	984.3 ft	300 m
ALPHA WIRE 470047CY CL321	Clear	0.337 "	8.56 mm	80 °C	-40 C	50 m	164 ft	300 VDC	19 AWG	Multi-Conductor	80 %	Poly-Vinyl Chloride (PVC)	4	0.0354 in	0.9 mm	30	0.007 in	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	Braid	Industrial	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470047CY GE033	Gray	0.337 "	8.56 mm	80 °C	-40 C			300 VDC	19 AWG	Multi-Conductor	80 %	Poly-Vinyl Chloride (PVC)	4	0.0354 in	0.9 mm	30	0.007 in	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	Braid	Industrial	Poly-Vinyl Chloride (PVC)	328.1 ft	100 m
ALPHA WIRE 470047CY CL033	Clear	0.337 "	8.56 mm	80 °C	-40 C			300 VDC	19 AWG	Multi-Conductor	80 %	Poly-Vinyl Chloride (PVC)	4	0.0354 in	0.9 mm	30	0.007 in	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	Braid	Industrial	Poly-Vinyl Chloride (PVC)	328.1 ft	100 m
