1.8HD Series
Manufacturer: Bivar Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

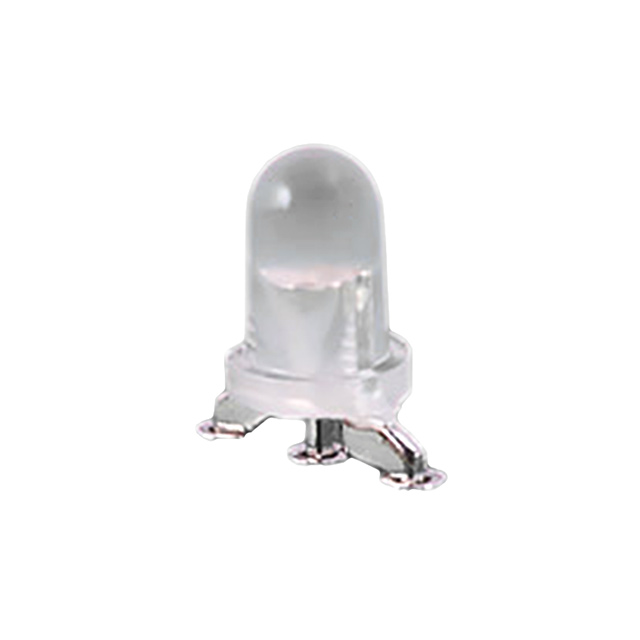

LED, THROUGH HOLE, 1.8MM, HE RED, 625NM, 2MCD, DIFFUSED LENS, 50 DEG VIEWING ANGLE, LOW CURRENT / BAG
| Part | Package / Case | Height (Max) | Millicandela Rating | Lens Style | Lens Transparency | Mounting Type | Configuration | Color | Lens Diameter | Viewing Angle | Package Type | Supplier Device Package Shape | Package Name | Package Dimension | Supplier Device Package Size | Wavelength - Peak | Current - Test | Lens Color | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | Radial | 3 mm | 2 mcd | Domed Top Round | Diffused | Through Hole | Standard | Red | 1.8 mm | 50 ° | Discrete LED | Discrete LED | 1.8mm Discrete LED | 1.8 mm | 1.8 mm | 625 nm | 2 mA | Red | 2 V |
Bivar Inc. | Radial | 3 mm | 20 mcd | Domed Top Round | Diffused | Through Hole | Standard | Red | 1.8 mm | 50 ° | Discrete LED | Discrete LED | 1.8mm Discrete LED | 1.8 mm | 1.8 mm | 625 nm | 20 mA | Red | 2 V |
