E150 Series

Manufacturer: SolaHD

Catalog

PWR XFMR LAMINATED 150VA CHAS MT

Part	Termination Style	Primary Winding(s)	Height - Seated (Max) [Max] [z]	Secondary Winding(s)	Power - Max [Max]	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Voltage - Secondary (Full Load)	Voltage - Primary
SolaHD E150JN	Quick Connect Solder	Multiple Taps Single	98.8 mm	Multiple Taps Single	150 VA	Laminated Core	Chassis Mount	132.3 mm	4.5 "
SolaHD E150EW	Quick Connect Solder				150 VA	Laminated Core	Chassis Mount	4.5 in	113.8 mm
SolaHD E150WA	Quick Connect Solder				150 VA	Laminated Core	Chassis Mount	4.5 in	113.8 mm
SolaHD E150TC	Quick Connect Solder	Multiple Taps Single	98.8 mm	Multiple Taps Single	150 VA	Laminated Core	Chassis Mount	132.3 mm	4.5 "

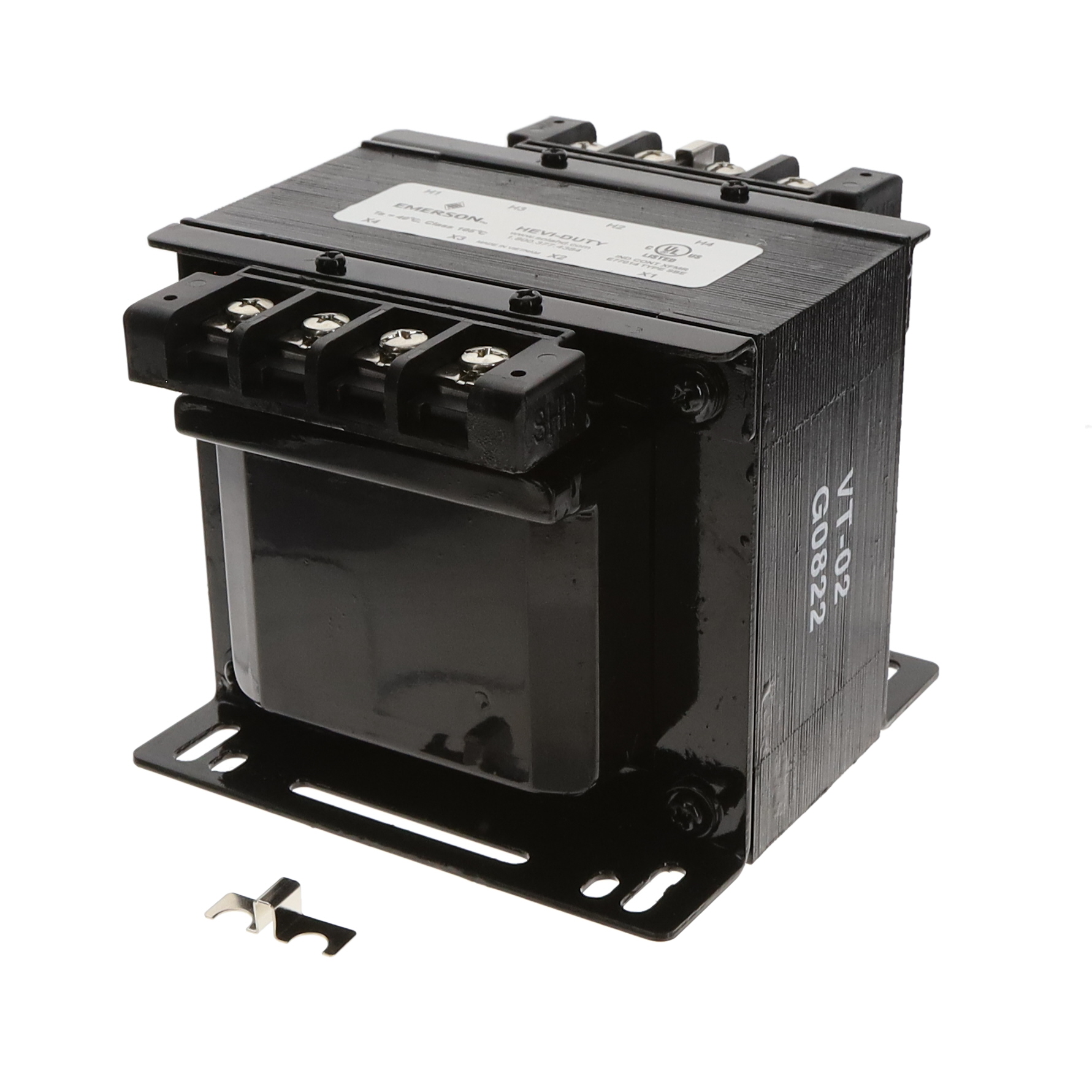

SolaHD E150TF	Quick Connect Solder	Dual Multiple Taps		Multiple Taps Single	150 VA	Laminated Core	Chassis Mount

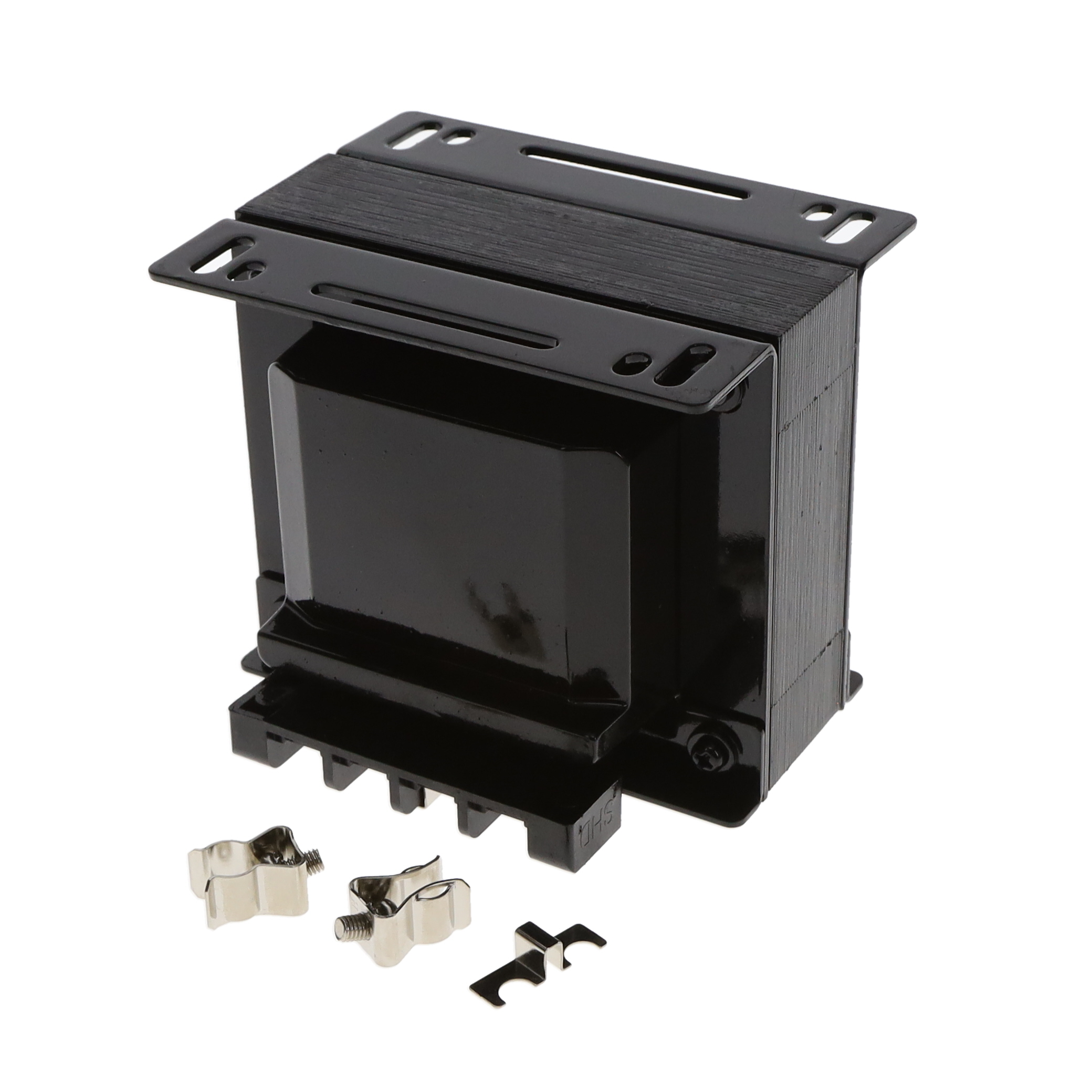

SolaHD E150E	Quick Connect Solder	Dual Multiple Taps		Single	150 VA	Laminated Core	Chassis Mount			24 V	120 V 240 V
SolaHD E150W	Quick Connect Solder				150 VA	Laminated Core	Chassis Mount	4.5 in	113.8 mm
SolaHD E150WB	Quick Connect Solder				150 VA	Laminated Core	Chassis Mount	4.5 in	113.8 mm
