SH05 Series

Catalog

PCB-PLUG WSCREW FLANGE 508MMPS 5

Part	Voltage - UL	Termination Style	Number of Levels	Wire Gauge or Range - mm²	Voltage - IEC	Contact Mating Finish	Plug Wire Entry Angle	Current - UL	Pitch	Mounting Type	Color	Type	Positions Per Level	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Features	Current - IEC	Number of Positions	Operating Temperature	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Insulation Height	Torque - Screw	Wire Strip Length	Screw Size	Material Flammability Rating	Housing Material
Altech Corporation SH05-5,08-K	300 V	Screw - Rising Cage Clamp	1	4 mm²	450 V	Nickel	180 °	12 A	5.08 mm	Free Hanging (In-Line)	Green	Female Sockets Plug	5	30 AWG	14 AWG	Retention Latches (Non-Wire Side)	16 A	5	105 °C
Altech Corporation SH05-10,00	300 V	Screw - Rising Cage Clamp	1	4 mm²	750 V	Nickel	180 °	12 A	0.394 in	Free Hanging (In-Line)	Green	Female Sockets Plug	5	30 AWG	14 AWG	Retention Latches (Non-Wire Side)	16 A	5	105 °C
Altech Corporation SH05-3,50/BL
Altech Corporation SH05-3,81	300 V	Screw - Rising Cage Clamp	1	1.5 mm²	130 V	Tin	180 °	8 A	0.15 in	Free Hanging (In-Line)	Green	Female Sockets Plug	5	30 AWG	16 AWG		8 A	5	105 °C
Altech Corporation SH05-10,16-K	600 V	Screw - Rising Cage Clamp	1		750 V	Nickel	180 °	12 A	0.4 in	Free Hanging (In-Line)	Green	Female Sockets Plug	5	30 AWG	14 AWG	Retention Latches (Non-Wire Side)	16 A	5	105 °C	2.5 mm²	0.05 mm²
Altech Corporation SH05-3,50	300 V	Screw - Rising Cage Clamp	1		160 V	Nickel	180 °	11 A	0.138 in	Free Hanging (In-Line)	Green	Female Sockets Plug	5	30 AWG	14 AWG		8 A	5		1.5 mm²	0.25 mm²	-30 °C	105 °C
Altech Corporation SH05-3,81-K	300 V	Screw - Leaf Spring Wire Guard	1		160 V	Nickel	180 °	11 A	0.15 in	Free Hanging (In-Line)	Green	Female Sockets Plug	5	30 AWG	14 AWG	Mating Flange	8 A	5		1.5 mm²	0.25 mm²	-30 °C	105 °C

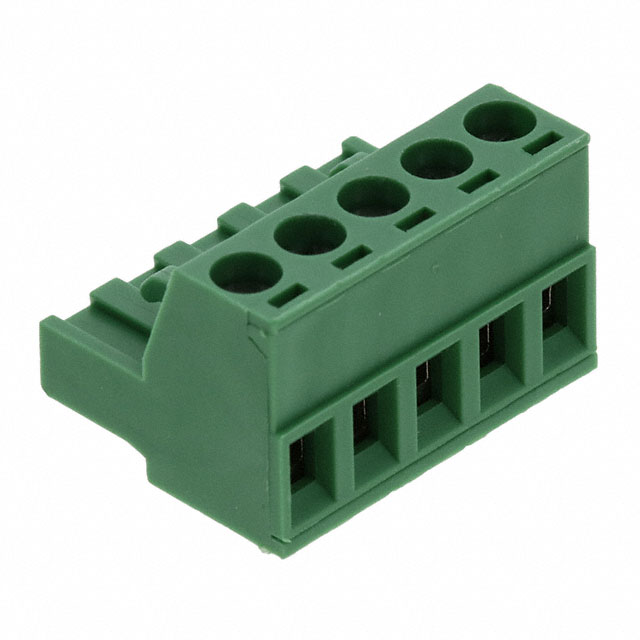

Altech Corporation SH05-5,00	300 V	Screw - Rising Cage Clamp	1	2.5 mm²	450 V	Nickel	180 °	12 A	0.197 in	Free Hanging (In-Line)	Green	Female Sockets Plug	5	30 AWG	14 AWG	Retention Latches (Non-Wire Side)	16 A	5						Brass	0.61 in	0.5 Nm	7.5 mm	M3	UL94 V-0	Nylon PA Polyamide
Altech Corporation SH05-10,16	300 V	Screw - Rising Cage Clamp	1	4 mm²	750 V	Nickel	180 °	12 A	0.4 in	Free Hanging (In-Line)	Green	Female Sockets Plug	5	30 AWG	14 AWG	Retention Latches (Non-Wire Side)	16 A	5	105 °C
