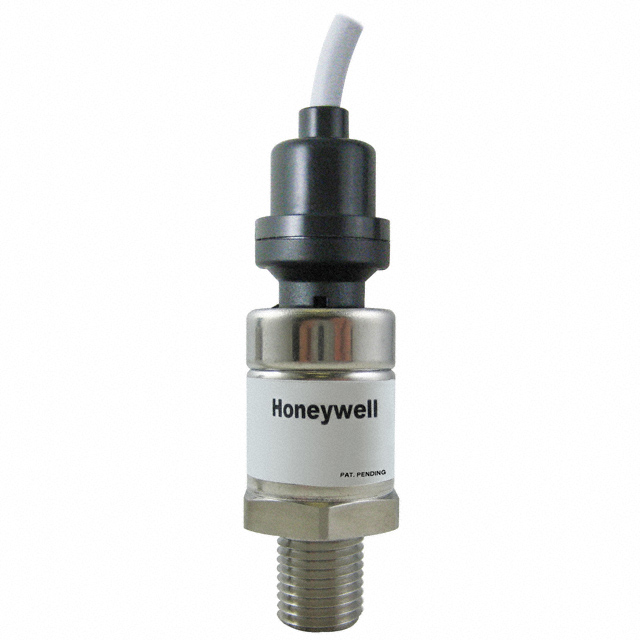

PX2EN1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

HEAVY DUTY PRESSURE TRANSDUCER

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Port Style	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Output [Min]	Output [Max]	Package / Case	Features	Pressure Type	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions PX2EN1XX01KPAAAX	Industrial Automation	125 °C	-40 °C	0.25 %	1000 PSI	6894.76 kPa	4.75 V	5.25 V	Wire Leads	2000 PSI	13789.51 kPa	Analog Voltage	Threaded	NPT	0.25 "	6.35 mm	Male	0.5 V	4.5 V	Cylinder	Temperature Compensated
Honeywell Sensing and Productivity Solutions PX2EN1XX250PSCHX	Industrial Automation	125 °C	-40 °C	0.25 %	250 PSI	1723.69 kPa	8 V	30 VDC	Wire Leads	750 PSI	5171.07 kPa	Analog Current	Threaded	NPT	0.25 "	6.35 mm	Male	4 mA	20 mA	Cylinder	Temperature Compensated	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2EN1XX100PSAAX	Industrial Automation	125 °C	-40 °C	0.25 %	100 PSI	689.48 kPa	4.75 V	5.25 V	Wire Leads	450 PSI	3102.64 kPa	Analog Voltage	Threaded	NPT	0.25 "	6.35 mm	Male	0.5 V	4.5 V	Cylinder	Temperature Compensated	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2EN1XX010BSACX	Industrial Automation	125 °C	-40 °C	0.25 %	145.04 PSI	10 bar	3.135 V	3.465 V	Wire Leads	449.62 PSI	3100 kPa	Analog Voltage	Threaded	NPT	0.25 "	6.35 mm	Male	0.33 V	2.97 V	Cylinder	Temperature Compensated	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2EN1XX150PSBEX
Honeywell Sensing and Productivity Solutions PX2EN1XX025BSCHX
Honeywell Sensing and Productivity Solutions PX2EN1XX300PSCHX	Industrial Automation	125 °C	-40 °C	0.25 %	300 PSI	2068.43 kPa	8 V	30 VDC	Wire Leads	1000 PSI	6894.76 kPa	Analog Current	Threaded	NPT	0.25 "	6.35 mm	Male	4 mA	20 mA	Cylinder	Temperature Compensated	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2EN1XX750PSBGX	Industrial Automation	125 °C	-40 °C	0.25 %	750 PSI	750 PSI	8 V	30 VDC	Wire Leads			Analog Voltage	Threaded	NPT	0.25 "	6.35 mm	Male	1 V	5 V	Cylinder	Temperature Compensated	Sealed Gauge	1500 PSI	10342.14 kPa
Honeywell Sensing and Productivity Solutions PX2EN1XX100PAAAX	Industrial Automation	125 °C	-40 °C	0.25 %	100 PSI	689.48 kPa	4.75 V	5.25 V	Wire Leads	450 PSI	3102.64 kPa	Analog Voltage	Threaded	NPT	0.25 "	6.35 mm	Male	0.5 V	4.5 V	Cylinder	Temperature Compensated
Honeywell Sensing and Productivity Solutions PX2EN1XX100PSCHX	Industrial Automation	125 °C	-40 °C	0.25 %	100 PSI	689.48 kPa	8 V	30 VDC	Wire Leads	450 PSI	3102.64 kPa	Analog Current	Threaded	NPT	0.25 "	6.35 mm	Male	4 mA	20 mA	Cylinder	Temperature Compensated	Sealed Gauge
