AA3527 Series

Catalog

LED GREEN CLEAR 4SMD

Part	Lens Diameter	Mounting Type	Configuration	Wavelength - Peak	Height (Max)	Package Name	Lens Color	Millicandela Rating	Color	Wavelength - Dominant	Lens Style	Size / Dimension Length	Size / Dimension Width	Voltage - Forward (Vf) (Typ)	Lens Transparency	Viewing Angle	Current - Test	Package / Case

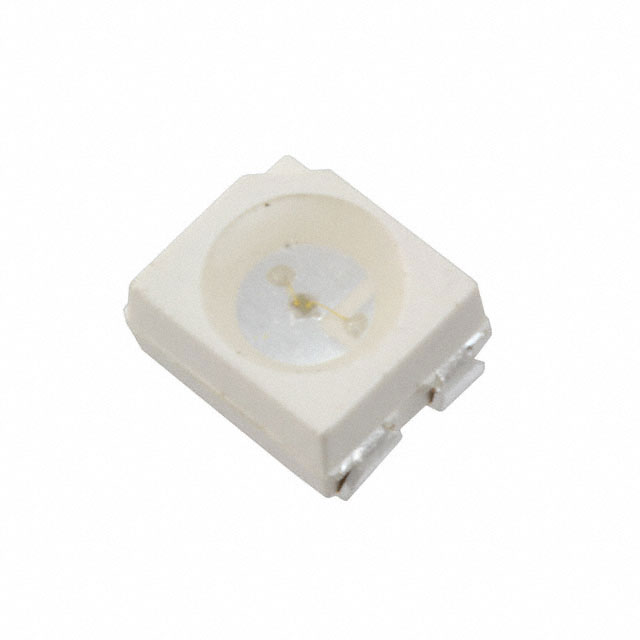

Kingbright AA3527AZGS-30MAV	2.4 mm	Surface Mount	Standard	515 nm	1.9 mm	4-SMD	Colorless	750 mcd	Green	525 nm	Flat Top Round	3.2 mm	2.7 mm	3.3 V	Clear	120 °	30 mA	4-SMD J-Lead

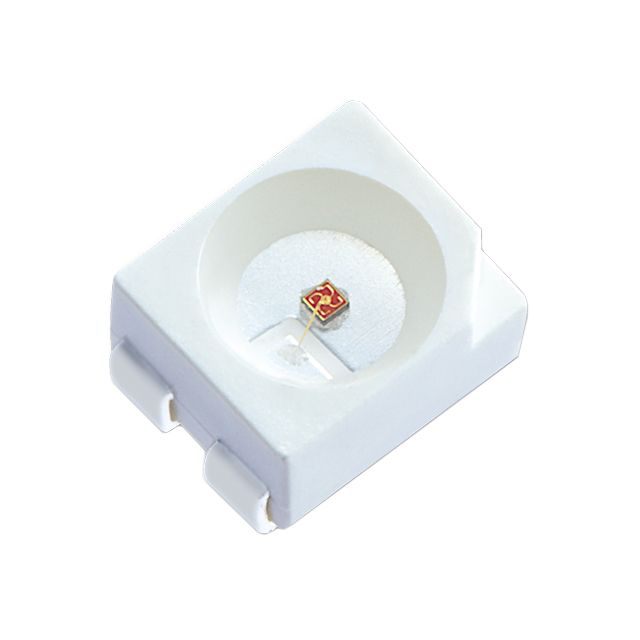

Kingbright AA3527ASYSK/J3-50MAV	2.4 mm	Surface Mount	Independent	590 nm	2.15 mm	4-SMD	Colorless	1500 mcd	Yellow	590 nm	Flat Top Round	3.2 mm	2.7 mm	2.3 V	Clear	120 °	50 mA	4-SMD J-Lead

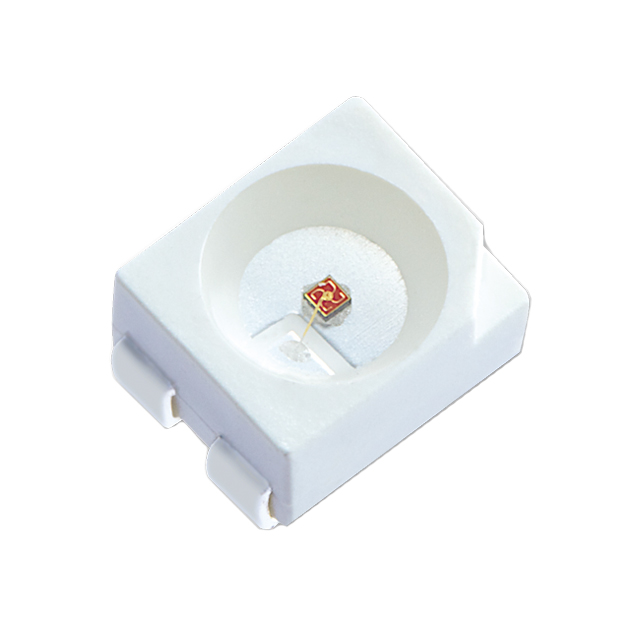

Kingbright AA3527AZGSK-30MAV	2.4 mm	Surface Mount	Independent	515 nm	2.15 mm	4-SMD	Colorless	700 mcd	Green	525 nm	Flat Top Round	3.2 mm	2.7 mm	3.5 V	Clear	120 °	30 mA	4-SMD J-Lead
Kingbright AA3527ASES-50MAV	2.4 mm	Surface Mount	Standard	610 nm	2.15 mm	SMD	Colorless	500 mcd	Orange	601 nm	Flat Top Round	3.2 mm	2.7 mm	2.1 V	Clear	120 °	50 mA	4-SMD J-Lead

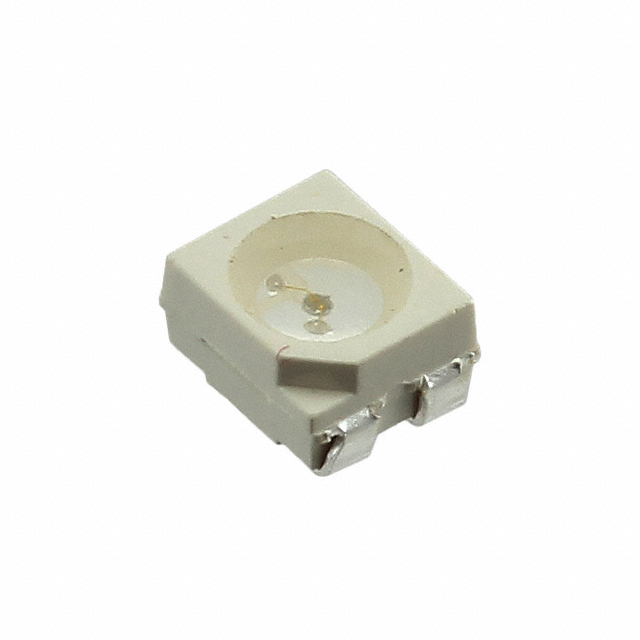

Kingbright AA3527AVBS/D-30MAV	2.4 mm	Surface Mount	Standard	465 nm	1.9 mm	4-SMD	Colorless	600 mcd	Blue	470 nm	Flat Top Round	3.2 mm	2.7 mm	3.5 V	Clear	120 °	30 mA	4-SMD J-Lead
Kingbright AA3527ASYS/J3-50MAV	2.4 mm	Surface Mount	Standard	590 nm	1.9 mm	4-SMD	Colorless	1600 mcd	Yellow	590 nm	Flat Top Round	3.2 mm	2.7 mm	2.3 V	Clear	120 °	50 mA	4-SMD J-Lead

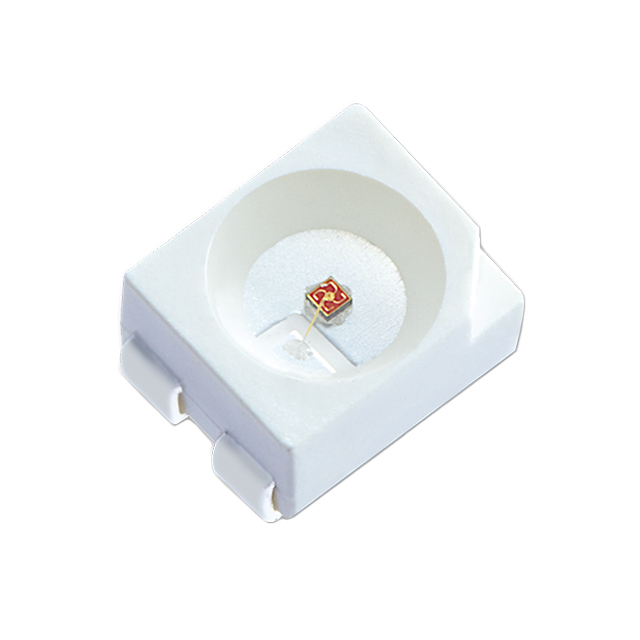

Kingbright AA3527ASESK-50MAV	2.4 mm	Surface Mount	Independent	610 nm	2.15 mm	4-SMD	Colorless	900 mcd	Orange	601 nm	Flat Top Round	3.2 mm	2.7 mm	2.25 V	Clear	120 °	50 mA	4-SMD J-Lead
Kingbright AA3527ASESK/J3-50MAV	2.4 mm	Surface Mount	Independent	640 nm	2.15 mm	4-SMD	Colorless	4200 mcd	Red	625 nm	Flat Top Round	3.2 mm	2.7 mm	2.5 V	Clear	120 °	50 mA	4-SMD J-Lead
