MPQ5073 Series

Catalog

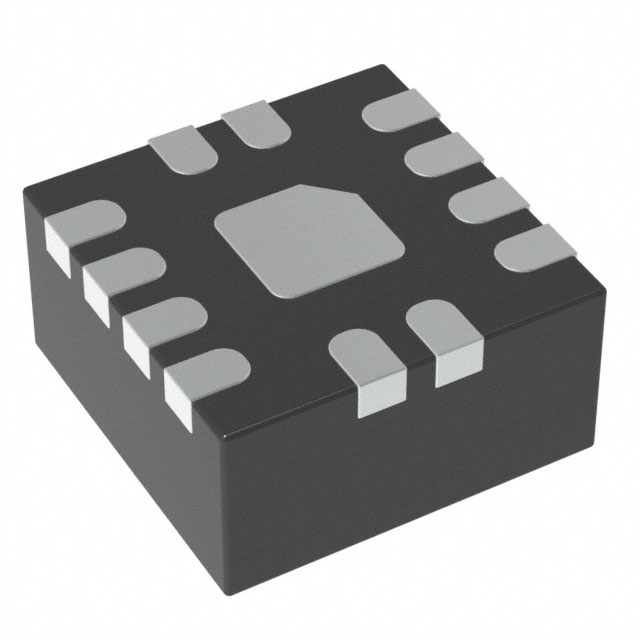

IC PWR SWITCH P-CHAN 1:1 12QFN

Part	Input Type	Switch Type	Rds On (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of Outputs	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]	Features	Package / Case	Ratio - Input:Output	Fault Protection	Output Configuration	Output Type	Mounting Type
Monolithic Power Systems Inc. MPQ5073GG-Z	CMOS	General Purpose	50 mOhm	-40 C	125 °C	2 A	0.5 V	5.5 V	1	12-QFN (2x2)	5.5 V	0.5 V	Slew Rate Controlled	12-VFQFN Exposed Pad	1:1	Over Temperature Short Circuit	High Side	P-Channel	Surface Mount
Monolithic Power Systems Inc. MPQ5073GG-AEC1-P	CMOS	General Purpose	50 mOhm	-40 C	125 °C	2 A	0.5 V	5.5 V	1	12-QFN (2x2)	5.5 V	0.5 V	Slew Rate Controlled	12-VFQFN Exposed Pad	1:1	Over Temperature Short Circuit	High Side	P-Channel	Surface Mount
Monolithic Power Systems Inc. MPQ5073GG-AEC1-Z	CMOS	General Purpose	50 mOhm	-40 C	125 °C	2 A	0.5 V	5.5 V	1	12-QFN (2x2)	5.5 V	0.5 V	Slew Rate Controlled	12-VFQFN Exposed Pad	1:1	Over Temperature Short Circuit	High Side	P-Channel	Surface Mount
Monolithic Power Systems Inc. MPQ5073GG-P	CMOS	General Purpose	50 mOhm	-40 C	125 °C	2 A	0.5 V	5.5 V	1	12-QFN (2x2)	5.5 V	0.5 V	Slew Rate Controlled	12-VFQFN Exposed Pad	1:1	Over Temperature Short Circuit	High Side	P-Channel	Surface Mount
