1393640 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

DIN 41612 CONNECTORS V42254B2235B640= PC612 FEDERLEI

Part	Material - Insulation	Number of Rows [custom]	Termination	Connector Type	Contact Finish	Style	Pitch	Pitch	Number of Positions	Mounting Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Positions Loaded	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions Loaded	Level, Class [custom]	Level, Class
TE Connectivity AMP Connectors 7-1393640-9	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	Solder	Receptacle Female Sockets	Gold Gold-Palladium	B	0.1 "	2.54 mm	64	Through Hole

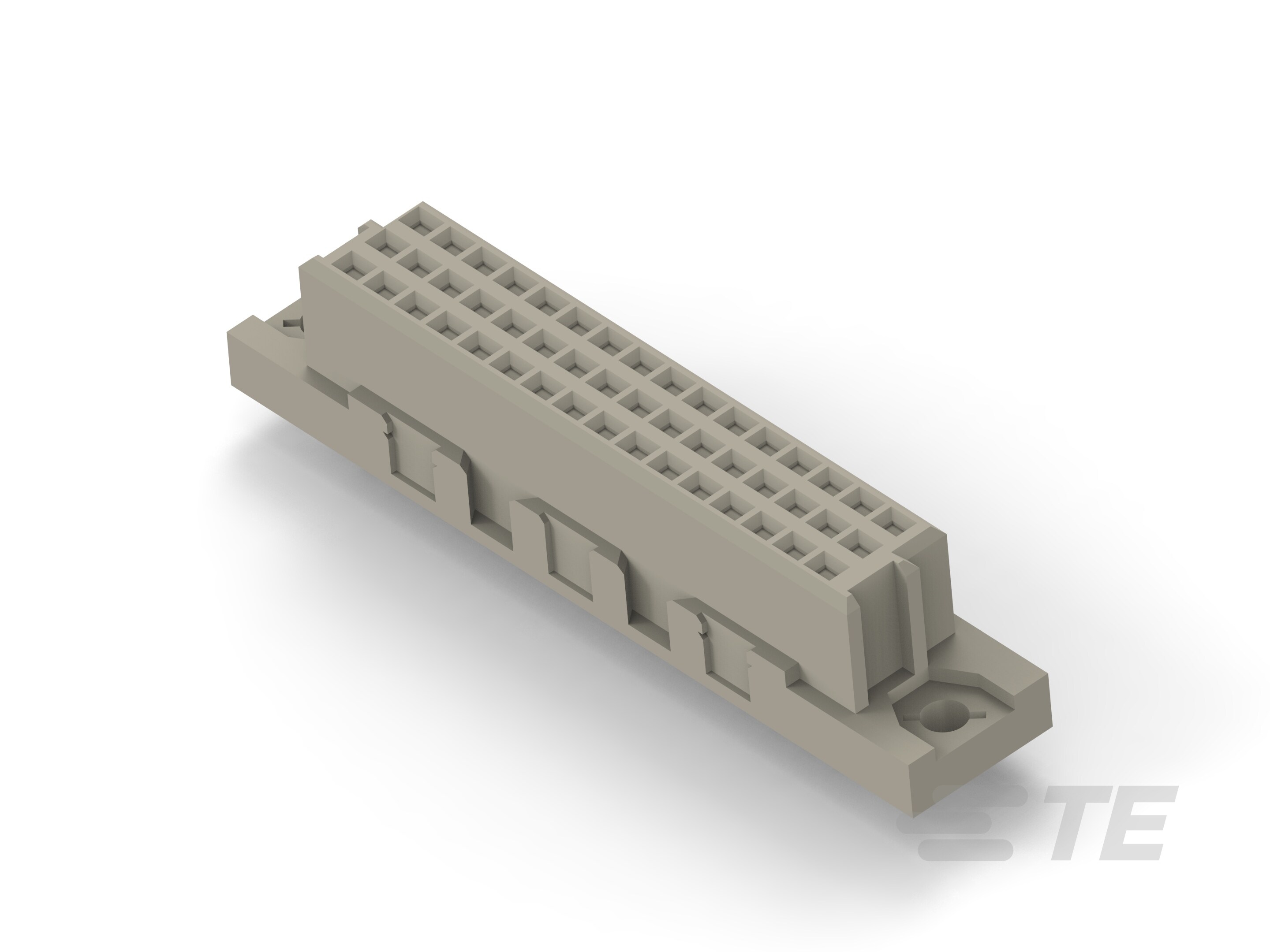

TE Connectivity AMP Connectors 8-1393640-3	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3	Solder	Receptacle Female Sockets	Gold Gold-Palladium	C/2	0.1 "	2.54 mm	48	Through Hole	UL94 V-0	-55 C	125 °C	1/2 C	All

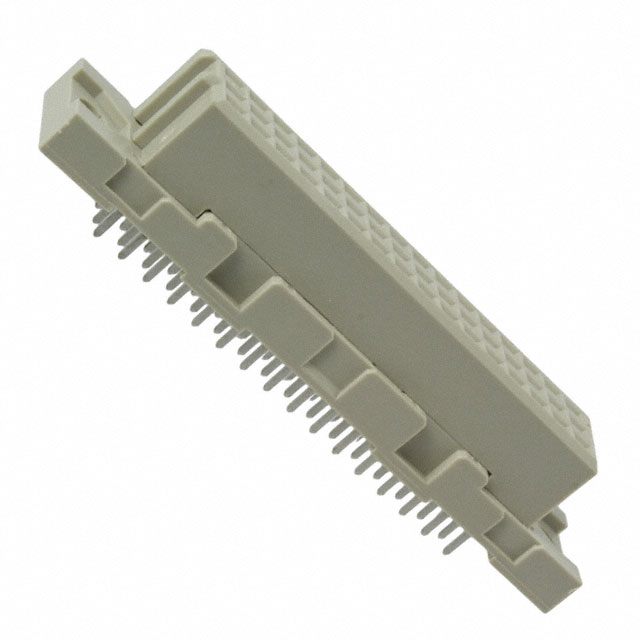

TE Connectivity AMP Connectors 8-1393640-5	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3	Solder	Receptacle Female Sockets	Gold Gold-Palladium	C C/2	0.1 "	2.54 mm	48	Through Hole	UL94 V-0	-55 C	125 °C	1/2 C	All	Board Guide
TE Connectivity AMP Connectors 4-1393640-3	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3	Solder	Receptacle Female Sockets	Gold Gold-Palladium	M	0.1 "	2.54 mm		Right Angle Through Hole	UL94 V-0	-55 C	125 °C				60	4	60	1

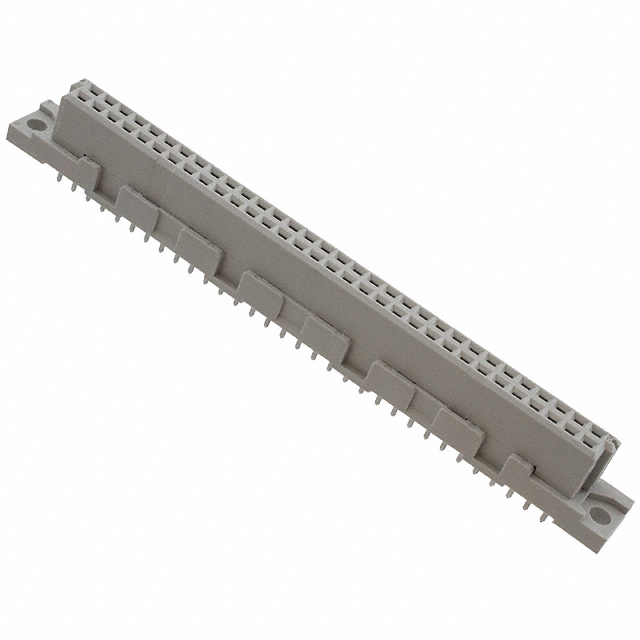

TE Connectivity AMP Connectors 7-1393640-8	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	Solder	Receptacle Female Sockets	Gold Gold-Palladium	B	0.1 "	2.54 mm	64	Through Hole	UL94 V-0	-55 C	125 °C		All
TE Connectivity AMP Connectors 1393640-7	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3	Solder	Receptacle Female Sockets	Gold Gold-Palladium	C/2	0.1 "	2.54 mm	48	Through Hole	UL94 V-0	-55 C	125 °C	1/2 C	All					1
TE Connectivity AMP Connectors 9-1393640-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3	Solder	Receptacle Female Sockets	Gold Gold-Palladium	C	0.1 "	2.54 mm	96	Through Hole	UL94 V-0	-55 C	125 °C						64
TE Connectivity AMP Connectors 8-1393640-6	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3	Solder	Receptacle Female Sockets	Gold Gold-Palladium	C	0.1 "	2.54 mm	48	Through Hole											3
TE Connectivity AMP Connectors 4-1393640-2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3	Solder	Receptacle Female Sockets	Gold Gold-Palladium	M	0.1 "	2.54 mm	48	Right Angle Through Hole	UL94 V-0	-55 C	125 °C						42	1
TE Connectivity AMP Connectors 7-1393640-4	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	Solder	Receptacle Female Sockets	Gold Gold-Palladium	B	0.1 "	2.54 mm		Through Hole					All
