46.52.8 Series

Catalog

RELAY GEN PURPOSE DPDT 8A 230V

Part	Coil Resistance	Must Operate Voltage	Load - Max Switching	Features	Must Release Voltage	Release Time	Coil Current	Coil Voltage	Coil Type	Operate Time	Contact Form	Relay Type	Approval Agency	Mounting Type	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Rating (Current)
Finder Relays, Inc. 46.52.8.230.0020	28 kOhms	184 VAC	3520 VA	Mechanical Indicator	46 VAC	3 ms	5 mA	230 VAC	Non Latching	10 ms	DPDT (2 Form C)	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	440 VAC	70 °C	-40 C	Silver Nickel (AgNi)	8 A
Finder Relays, Inc. 46.52.8.110.0040	6.9 kOhms	88 VAC/DC	3520 VA	Mechanical Indicator Test Button	22 VAC	3 ms	9.4 mA	110 VAC/DC	Non Latching	10 ms	DPDT (2 Form C)	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	440 VAC	70 °C	-40 C	Silver Nickel (AgNi)	8 A
Finder Relays, Inc. 46.52.8.120.0020	9 kOhms	96 VAC	3520 VA	Mechanical Indicator	24 VAC	3 ms	8.4 mA	120 VAC	Non Latching	10 ms	DPDT (2 Form C)	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	440 VAC	70 °C	-40 C	Silver Nickel (AgNi)	8 A

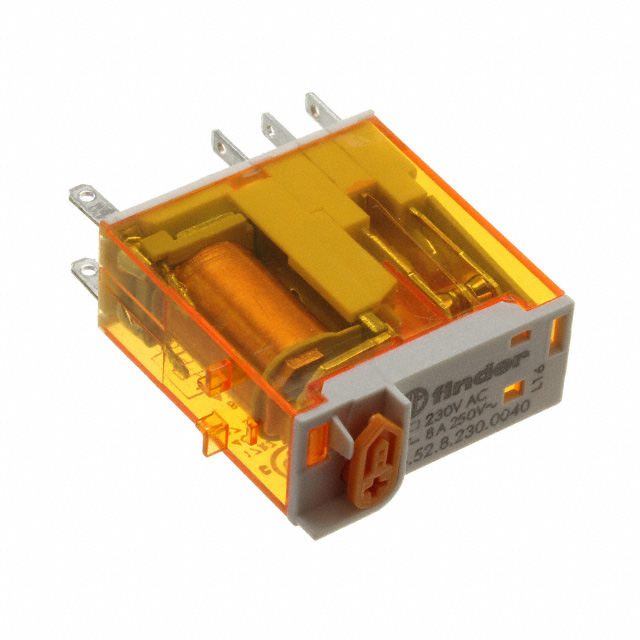

Finder Relays, Inc. 46.52.8.230.0040	28 kOhms	184 VAC	3520 VA	Mechanical Indicator Test Button	46 VAC	3 ms	5 mA	230 VAC	Non Latching	10 ms	DPDT (2 Form C)	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	440 VAC	70 °C	-40 C	Silver Nickel (AgNi)	8 A

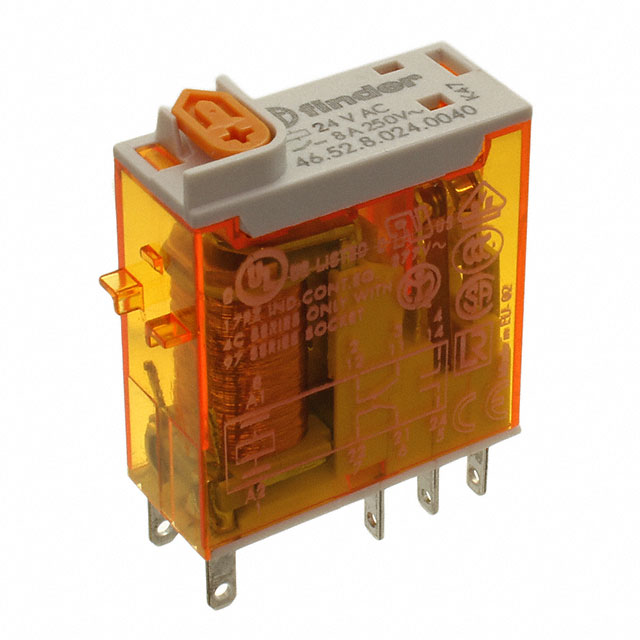

Finder Relays, Inc. 46.52.8.024.0040	533.3 Ohms	19.2 VAC	3520 VA	Mechanical Indicator Test Button	4.8 VAC	3 ms	45 mA	24 VAC	Non Latching	10 ms	DPDT (2 Form C)	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	440 VAC	70 °C	-40 C	Silver Nickel (AgNi)	8 A
Finder Relays, Inc. 46.52.8.240.0040	31.5 kOhms	192 VAC	3520 VA	Mechanical Indicator Test Button	48 VAC	3 ms	4.1 mA	240 VAC/DC	Non Latching	10 ms	DPDT (2 Form C)	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	440 VAC	70 °C	-40 C	Silver Nickel (AgNi)	8 A
Finder Relays, Inc. 46.52.8.240.0054	31.5 kOhms	192 VAC	3520 VA		48 VAC	3 ms	4.1 mA	240 VAC/DC	Non Latching	10 ms	DPDT (2 Form C)	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	440 VAC	70 °C	-40 C	Silver Nickel (AgNi)	8 A
