PCA.00 Series

Manufacturer: LEMO

Catalog

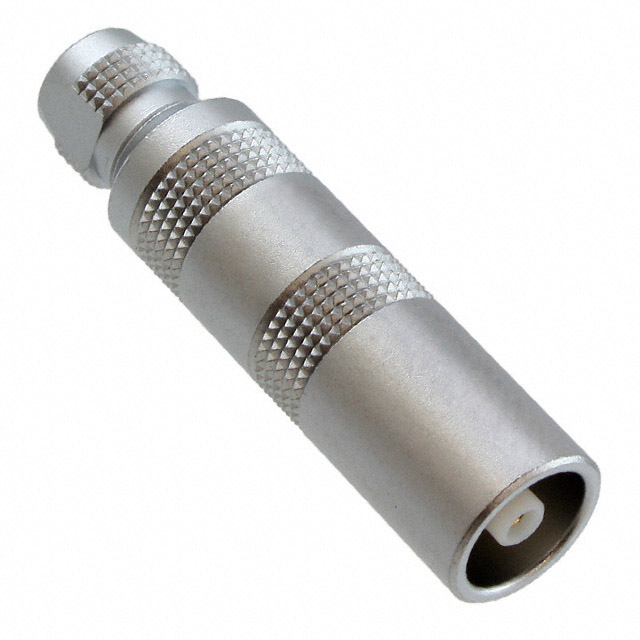

CONN NIMCAMAC RCPT STR 50 OHM

Part	Body Material	Center Contact Plating	Voltage Rating	Body Finish	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Mounting Type	Number of Ports	Connector Style	Fastening Type	Center Contact Material	Connector Type	Cable Group	Housing Color	Contact Termination	Ingress Protection	Impedance	Shield Termination	Contact Finish - Mating	Backshell Material, Plating	Color	Shell Material	Features	Orientation	Primary Material	Contact Material	Number of Positions	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Cable Opening	Cable Opening	Shielding	Current Rating (Amps)	Insert Material	Cable Opening [Min]	Cable Opening [Max]
LEMO PCA.00.250.CLLC27Z	Brass	Gold	700 VDC	Chrome	Polyetheretherketone (PEEK)	-55 C	260 °C	5000	Free Hanging (In-Line)	1	NIM-CAMAC CD/N 549	Push-Pull	Bronze	Receptacle Female Socket	RG-316	Silver	Solder	IP50 - Dust Protected	50 Ohms	Clamp
LEMO PCA.00.250.CTLC22	Brass	Gold	700 VDC	Chrome	Polytetrafluoroethylene (PTFE)	-55 C	260 °C	5000	Free Hanging (In-Line)		NIM-CAMAC CD/N 549	Push-Pull	Bronze	Receptacle Female Socket	196A RG-178B	Silver	Solder	IP50 - Dust Protected	50 Ohms	Clamp
LEMO PCA.00.113.CTLC29						-55 C	250 °C		Free Hanging (In-Line)			Push-Pull		Receptacle Female Sockets				IP50 - Dust Protected			Gold	Brass Chrome	Silver	Brass	Backshell	A	Metal	Bronze	1	113	1.5 Ám	59 Áin	Chrome	0.114 in	2.9 mm	Shielded	8 A	Polytetrafluoroethylene (PTFE)
LEMO PCA.00.250.CTAC29Z	Brass	Gold	700 VDC	Chrome	Polytetrafluoroethylene (PTFE)	-55 C	260 °C	5000	Free Hanging (In-Line)		NIM-CAMAC CD/N 549	Push-Pull	Brass	Receptacle Male Pin	RG-316	Silver	Solder	IP50 - Dust Protected	50 Ohms	Clamp
LEMO PCA.00.113.CTLC22						-55 C	250 °C		Free Hanging (In-Line)			Push-Pull		Receptacle Female Sockets				IP50 - Dust Protected			Gold	Brass Chrome	Silver	Brass	Backshell	A	Metal	Bronze	1	113	1.5 Ám	59 Áin	Chrome		1.7 mm 2.2 mm	Shielded	8 A	Polytetrafluoroethylene (PTFE)	0.067 in	0.087 "
LEMO PCA.00.250.CTLC27	Brass	Gold	700 VDC	Chrome	Polytetrafluoroethylene (PTFE)	-55 C	260 °C	5000	Free Hanging (In-Line)	1	NIM-CAMAC CD/N 549	Push-Pull	Bronze	Receptacle Female Socket	179B 187A 188A 316 RG-174	Silver	Solder	IP50 - Dust Protected	50 Ohms	Clamp
LEMO PCA.00.250.CTLC29Z	Brass	Gold	700 VDC	Chrome	Polytetrafluoroethylene (PTFE)	-55 C	260 °C	5000	Free Hanging (In-Line)	1	NIM-CAMAC CD/N 549	Push-Pull	Bronze	Receptacle Female Socket	RG-316	Silver	Solder	IP50 - Dust Protected	50 Ohms	Clamp
LEMO PCA.00.250.CTLC22Z	Brass	Gold	700 VDC	Chrome	Polytetrafluoroethylene (PTFE)	-55 C	260 °C	5000	Free Hanging (In-Line)		NIM-CAMAC CD/N 549	Push-Pull	Bronze	Receptacle Female Socket	196A RG-178B	Silver	Solder	IP50 - Dust Protected	50 Ohms	Clamp
LEMO PCA.00.250.NTLC27	Brass	Gold	700 VDC	Nickel	Polytetrafluoroethylene (PTFE)	-55 C	260 °C	5000	Free Hanging (In-Line)	1	NIM-CAMAC CD/N 549	Push-Pull	Bronze	Receptacle Female Socket	174A 179 187 188 316 RG-174	Silver	Solder	IP50 - Dust Protected	50 Ohms	Clamp
LEMO PCA.00.250.CLLC31	Brass	Gold	700 VDC	Chrome	Polyetheretherketone (PEEK)	-55 C	260 °C	5000	Free Hanging (In-Line)		NIM-CAMAC CD/N 549	Push-Pull	Bronze	Receptacle Female Socket	RG-174A	Silver	Solder	IP50 - Dust Protected	50 Ohms	Clamp
