6206C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

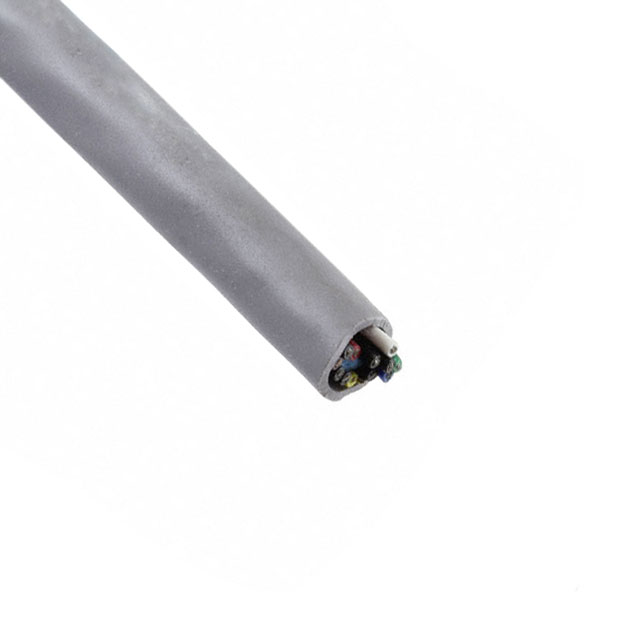

MULTI-PAIR 12COND 24AWG 1000'
| Part | Shield Coverage | Shield Material | Features | Number of Conductors | Voltage | Cable Type | Ratings | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Insulation | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Drain Wire Rip Cord | 12 | 300 VDC | Multi-Pair | UL Style 2919 | Copper Tinned | 0.351 in | 8.92 mm | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 7 | 32 AWG | 304.8 m | 1000 ft | Foil | 80 °C | -20 ░C | 24 AWG | Foam Polypropylene (FPP) | Slate |
