86002CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

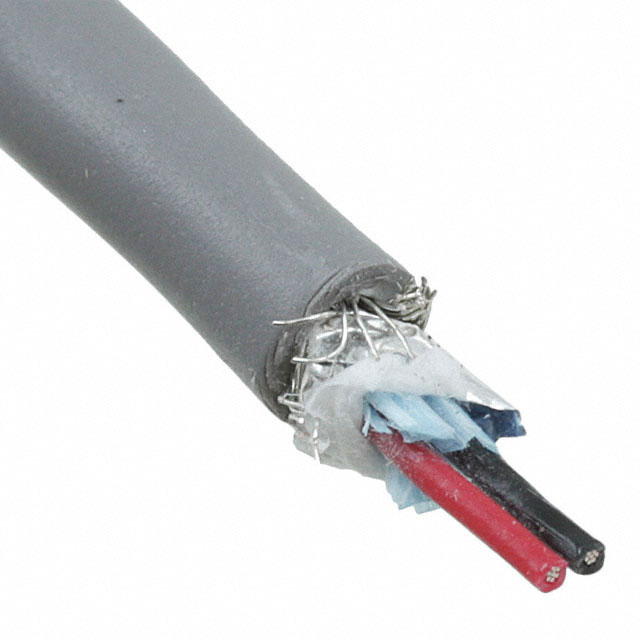

CABLE 2COND 28AWG SHLD 100=100'
| Part | Shield Material | Shield Coverage | Cable Type | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Features | Conductor Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Wire Gauge | Number of Conductors | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Braid Foil | 1.016 mm | 0.04 in | 300 VDC | Biological Compatibility Drain Wire | Copper Tinned | ISO 10993 UL Style 2661 | 7 | 36 AWG | Poly-Vinyl Chloride (PVC) | 28 AWG | 2 | Slate | 0.174 in | 4.42 mm | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Braid Foil | 1.016 mm | 0.04 in | 300 VDC | Biological Compatibility Drain Wire | Copper Tinned | ISO 10993 UL Style 2661 | 7 | 36 AWG | Poly-Vinyl Chloride (PVC) | 28 AWG | 2 | Slate | 0.174 in | 4.42 mm | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Braid Foil | 1.016 mm | 0.04 in | 300 VDC | Biological Compatibility Drain Wire | Copper Tinned | ISO 10993 UL Style 2661 | 7 | 36 AWG | Poly-Vinyl Chloride (PVC) | 28 AWG | 2 | Slate | 0.174 in | 4.42 mm | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
