R7FA6M4AF3 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
ARM MICROCONTROLLERS - MCU MCU RA6 ARM CM33 200MHZ 1M/256K QFP64
| Part | Package / Case | Mounting Type | Connectivity | Operating Temperature [Min] | Operating Temperature [Max] | Core Size | RAM Size | Core Processor | Program Memory Type | Peripherals | Data Converters | Supplier Device Package | Program Memory Size | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | EEPROM Size | Oscillator Type | Speed | Number of I/O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 64-LQFP | Surface Mount | CANbus EBI/EMI I2C LINbus QSPI SCI SPI SSI UART/USART USB | -40 °C | 105 °C | 32-Bit | 256 K | ARM® Cortex®-M33 | FLASH | AES DMA LVD POR PWM RSA SHA Temp Sensor WDT | A/D 11x12b SAR D/A 2x12b | 64-LFQFP (10x10) | 1 MB | 3.6 V | 2.7 V | 8 8 K | Internal | 200 MHz | 41 |
 Renesas Electronics Corporation | 144-LFBGA | Surface Mount | CANbus EBI/EMI Ethernet I2C LINbus QSPI SCI SPI SSI UART/USART USB | -40 °C | 105 °C | 32-Bit | 256 K | ARM® Cortex®-M33 | FLASH | AES DMA LVD POR PWM RSA SHA Temp Sensor WDT | A/D 22x12b SAR D/A 2x12b | 144-LFBGA (7x7) | 1 MB | 3.6 V | 2.7 V | 8 8 K | Internal | 200 MHz | 109 |
 Renesas Electronics Corporation | 100-LQFP | Surface Mount | CANbus EBI/EMI Ethernet I2C MMC/SD QSPI SCI SPI SSI UART/USART USB | -40 °C | 105 °C | 32-Bit | 256 K | ARM® Cortex®-M33 | FLASH | AES DMA LVD POR PWM RSA SHA Temp Sensor WDT | A/D 20x12b SAR D/A 2x12b | 100-LFQFP (14x14) | 1 MB | 3.6 V | 2.7 V | 8 8 K | Internal | 200 MHz | 75 |

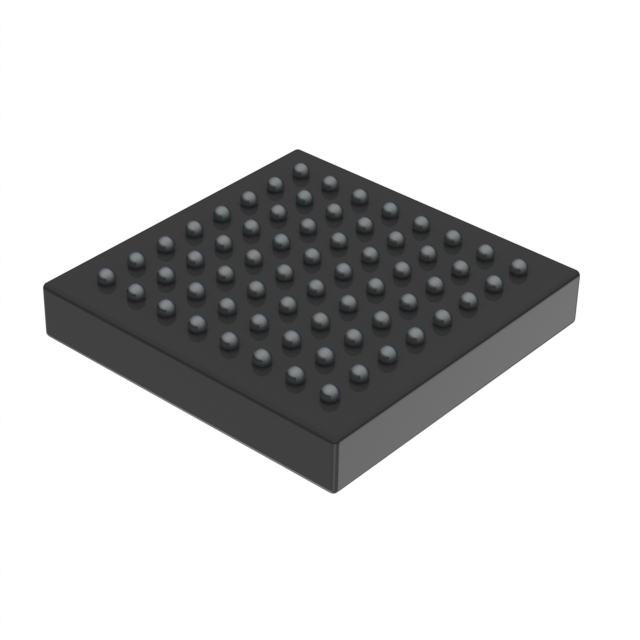

 Renesas Electronics Corporation | 64-LFBGA | Surface Mount | CANbus EBI/EMI Ethernet I2C LINbus QSPI SCI SPI SSI UART/USART USB | -40 °C | 105 °C | 32-Bit | 256 K | ARM® Cortex®-M33 | FLASH | AES DMA LVD POR PWM RSA SHA Temp Sensor WDT | A/D 11x12b SAR D/A 2x12b | 64-LFBGA (6x6) | 1 MB | 3.6 V | 2.7 V | 8 8 K | Internal | 200 MHz | 45 |
 Renesas Electronics Corporation | 144-LQFP | Surface Mount | CANbus EBI/EMI Ethernet I2C MMC/SD QSPI SCI SPI SSI UART/USART USB | -40 °C | 105 °C | 32-Bit | 256 K | ARM® Cortex®-M33 | FLASH | AES DMA LVD POR PWM RSA SHA Temp Sensor WDT | A/D 22x12b SAR D/A 2x12b | 144-LFQFP (20x20) | 1 MB | 3.6 V | 2.7 V | 8 8 K | Internal | 200 MHz | 109 |
