PCAP01 Series
Manufacturer: ScioSense
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

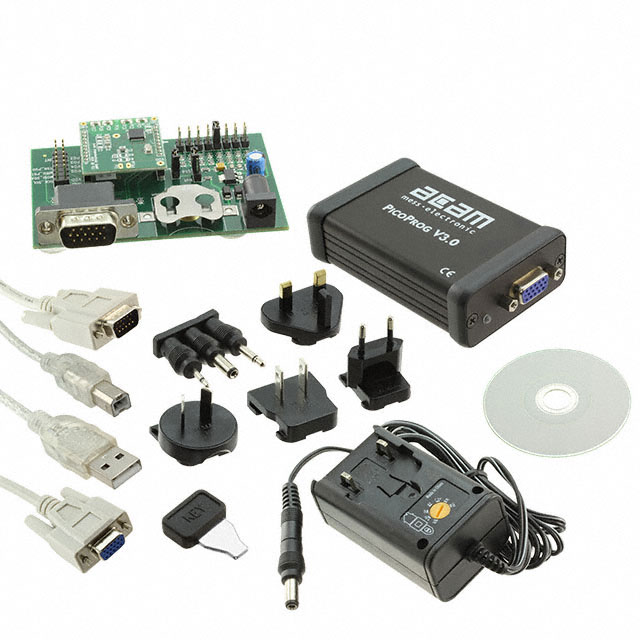

EVAL BOARD FOR PCAP01
| Part | Contents | Utilized IC / Part | Function | Type | Embedded | Voltage Supply Source | Data Interface | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Number of Channels | Package Width | Package Name | Package Length | Resolution (Bits) | Package / Case | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ScioSense | Board | PCap01 | Capacitance-to-Digital Converter | Interface | DSP Yes | ||||||||||||||
 ScioSense | Capacitance-to-Digital Converter | Single Supply | I2C SPI | 125 °C | -40 °C | Surface Mount | 8 | 5 mm | 32-QFN | 5 mm | 17 b | 32-VFQFN Exposed Pad | 2.1 V | 3.6 V | |||||
 ScioSense | Capacitance-to-Digital Converter | Single Supply | I2C SPI | 125 °C | -40 °C | Surface Mount | 8 | Die | 17 b | Die | 2.1 V | 3.6 V | 500 kHz |
