TPS652 Series

Catalog

EVAL MODULE FOR TPS65287

Part	Main Purpose	Current - Output	Outputs and Type	Outputs and Type	Voltage - Output	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Regulator Topology	Supplied Contents	Frequency - Switching	Frequency - Switching [Min]	Frequency - Switching [Max]	Function	Type	Secondary Attributes [Max]	Secondary Attributes [Min]	Primary Attributes	Secondary Attributes	Contents
Texas Instruments TPS65287EVM	DC/DC Step Down	2 A 3 A	Non-Isolated	3	1.2 V 1.8 V 3.3 V	TPS65287	18 V	4.5 V	Fully Populated	Buck	Board(s)	500 kHz

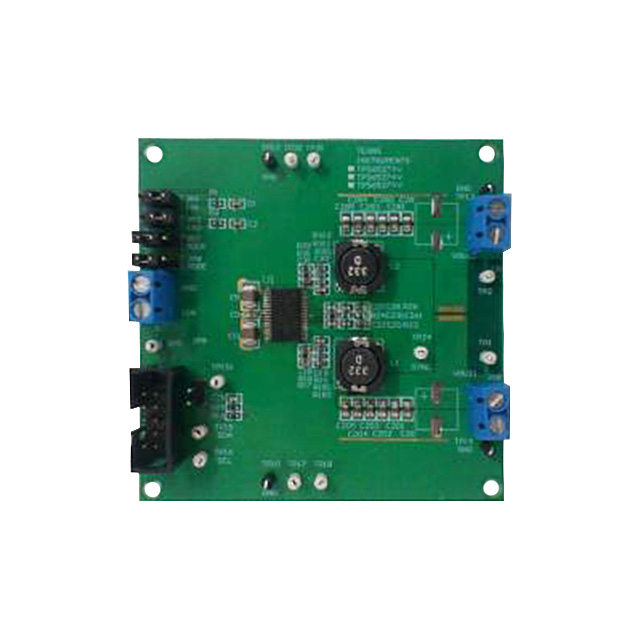

Texas Instruments TPS65276VTEVM	DC/DC Step Down	3.5 A 6 A	Non-Isolated	2	1 V 1.1 V	TPS65276V	18 V	4.5 V	Fully Populated	Buck	Board(s)	500 kHz

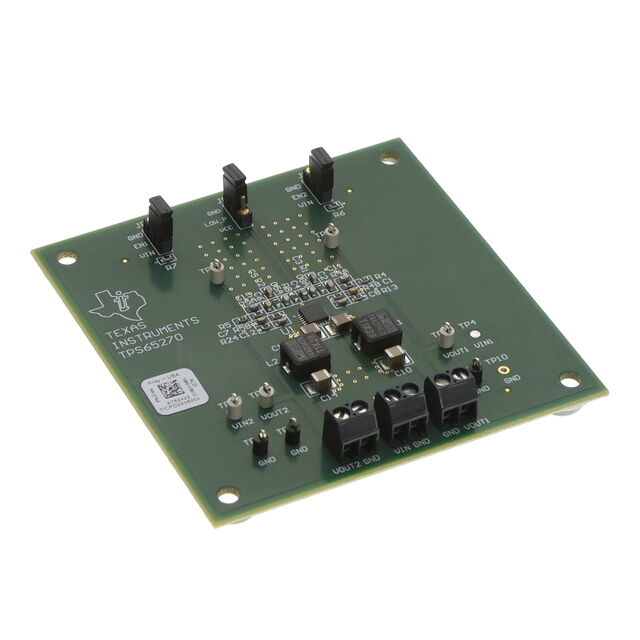

Texas Instruments TPS65270QEVM	DC/DC Step Down	2 A 3 A	Non-Isolated	2	1.2 V 1.8 V	TPS65270	16 V	4.5 V	Fully Populated	Buck	Board(s)		300 kHz	1.4 MHz

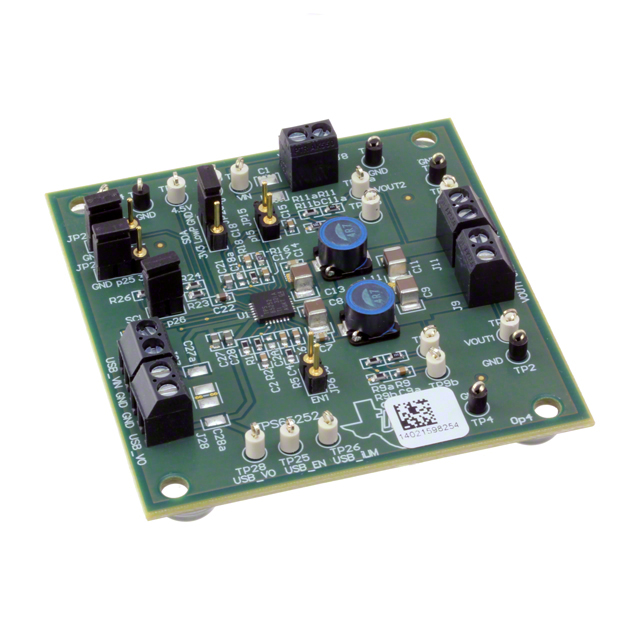

Texas Instruments TPS65252EVM						TPS65252					Board(s)				Integrated Power Supply	Power Management	16 V	4.5 V

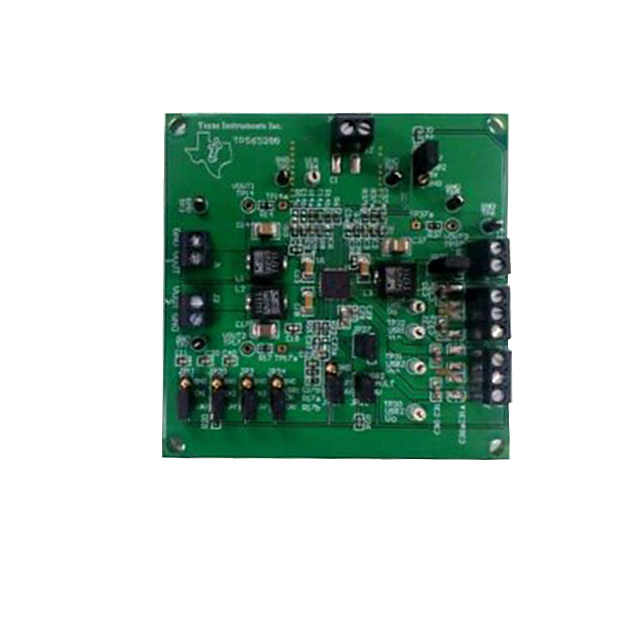

Texas Instruments TPS65288EVM	DC/DC Step Down	2 A 3 A	Non-Isolated	3	1.2 V 1.8 V 3.3 V	TPS65288	18 V	4.5 V	Fully Populated	Buck	Board(s)	500 kHz
Texas Instruments TPS65217BEVM						TPS65217					Accessories Board(s) Cable(s)				Battery Charger Power Supply	Power Management			2 Inputs 3 Cells	USB Powered
Texas Instruments TPS65258EVM	DC/DC Step Down	2 A 3 A	Non-Isolated	3		TPS65258	16 V	4.5 V	Fully Populated	Buck	Board(s)		300 kHz	2.2 MHz

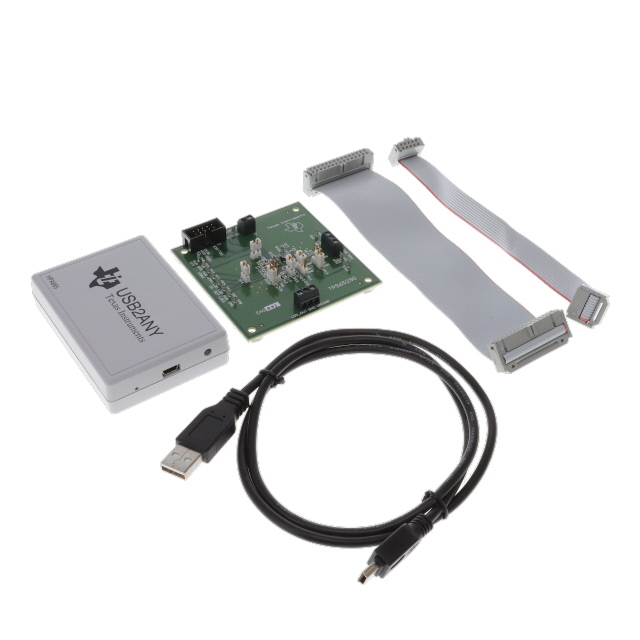

Texas Instruments TPS65290ZBEVM						TPS65290					Board(s)				Power Distribution Switch (Load Switch)	Power Management					Board(s)
