717-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

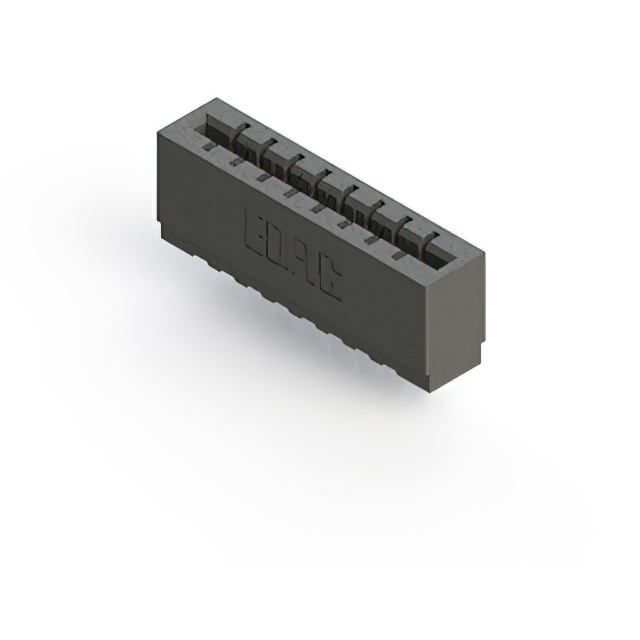

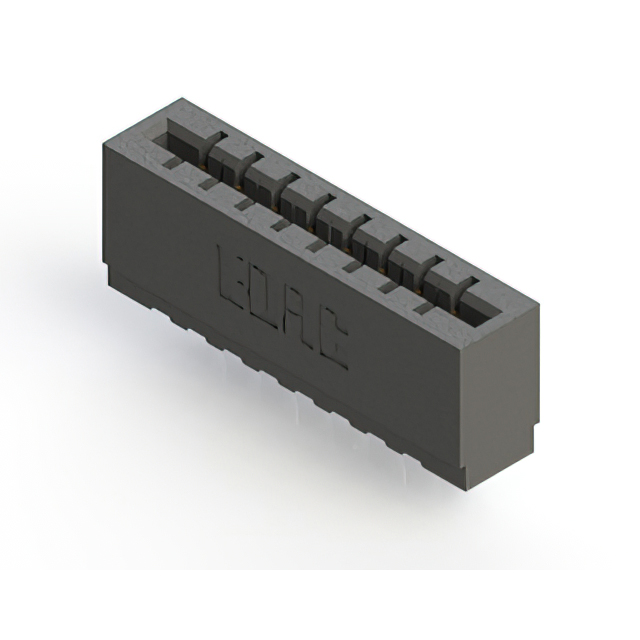

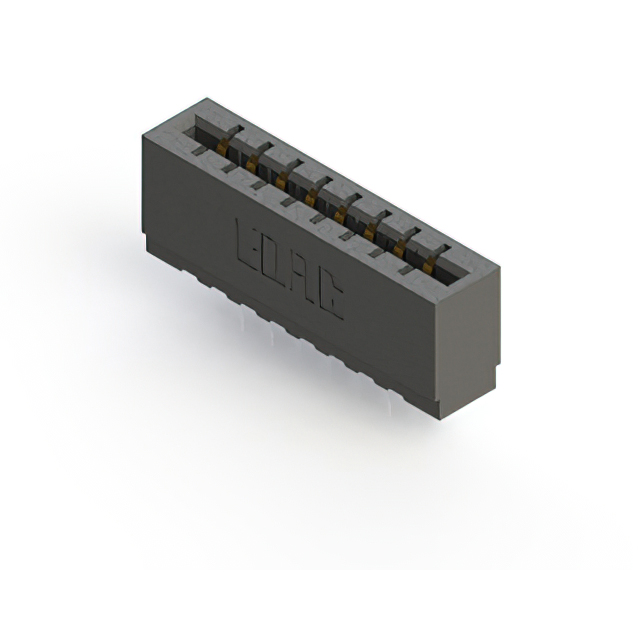

CONN EDGE SGL FMALE 8POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Color | Gender | Number of Positions | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Contact Finish | Read Out | Pitch | Pitch | Mounting Type | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Cantilever | Copper Alloy | Black | Female | 8 | Press-Fit Wire Wrap | -40 C | 105 ░C | 8 | Gold | Single | 3.96 mm | 0.156 in | Through Hole | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge |
 EDAC Inc. | 1 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Cantilever | Copper Alloy | Black | Female | 8 | Press-Fit | -40 C | 105 ░C | 8 | Gold | Single | 3.96 mm | 0.156 in | Through Hole | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge |
 EDAC Inc. | 1 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Cantilever | Copper Alloy | Black | Female | 8 | Press-Fit Wire Wrap | -40 C | 105 ░C | 8 | Gold | Single | 3.96 mm | 0.156 in | Through Hole | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge |
