147106 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

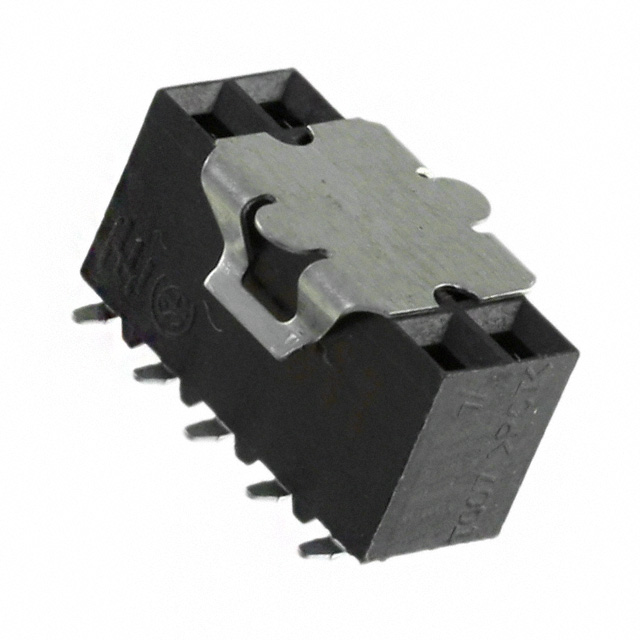

CONN RCPT 10POS 0.1 TIN-LEAD SMD
| Part | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Connector Type | Contact Shape | Number of Positions Loaded | Termination | Contact Type | Features | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Insulation Height | Insulation Height | Current Rating (Amps) | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Finish - Post | Contact Material | Fastening Type | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | 150 Áin | 3.81 Ám | Surface Mount | Receptacle Bottom or Top Entry | Square | All | Solder | Female Socket | Pick and Place | Tin-Lead | 150 Áin | 3.81 Ám | Board to Board Cable | 6.73 mm | 0.265 in | 2 A | 2.54 mm | 0.1 in | 10 | 125 °C | -65 ░C | 0.1 in | 2.54 mm | Polyester Glass Filled | Tin-Lead | Phosphor Bronze | Push-Pull | Black |
