SI8273 Series

Catalog

DGTL ISO 2.5KV 2CH GT DVR 14LGA

Part	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Isolation	Pulse Width Distortion (Max)	Package / Case	Approval Agency	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Technology	Common Mode Transient Immunity (Min) [Min]	Current - Peak Output	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ)	Mounting Type	Supplier Device Package	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Supplied Contents	Function	Type	Utilized IC / Part	Contents	Number of Channels [custom]	Grade	Package / Case	Qualification

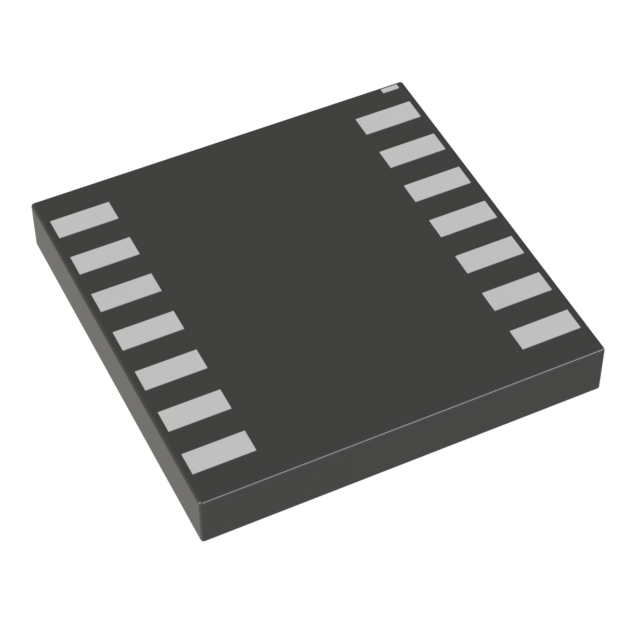

Skyworks Solutions Inc. SI8273ABD-IMR	75 ns	75 ns	2500 Vrms	8 ns	14-VFLGA	CQC CSA UR VDE	4 A	1.8 A	RF Coupling	200 V/ns	4 A	2	125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	14-LGA (5x5)	4.6 V	30 V

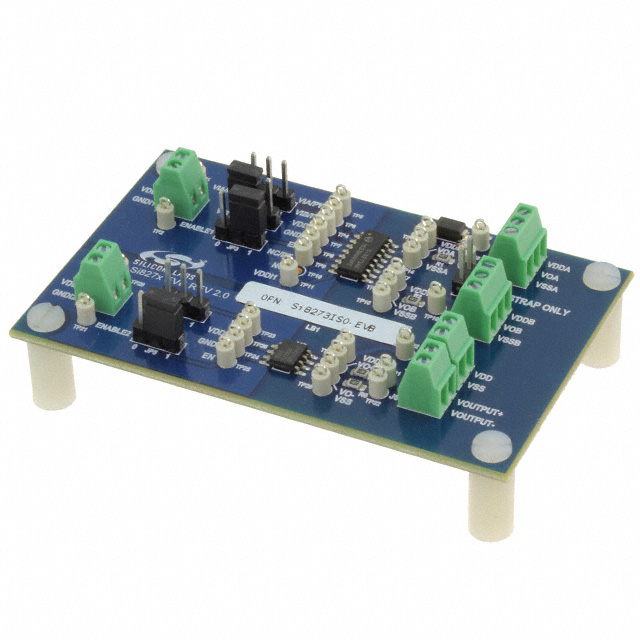

Skyworks Solutions Inc. SI8273ISO-KIT																				Board(s)	Digital Isolator	Interface	Si8273	Board(s)
Skyworks Solutions Inc. SI8273AB-IM1R	75 ns	75 ns	2500 Vrms	8 ns	14-VDFN	CQC CSA UR VDE	4 A	1.8 A	RF Coupling	200 V/ns	4 A	2	125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	14-QFN (5x5)	4.2 V	30 V

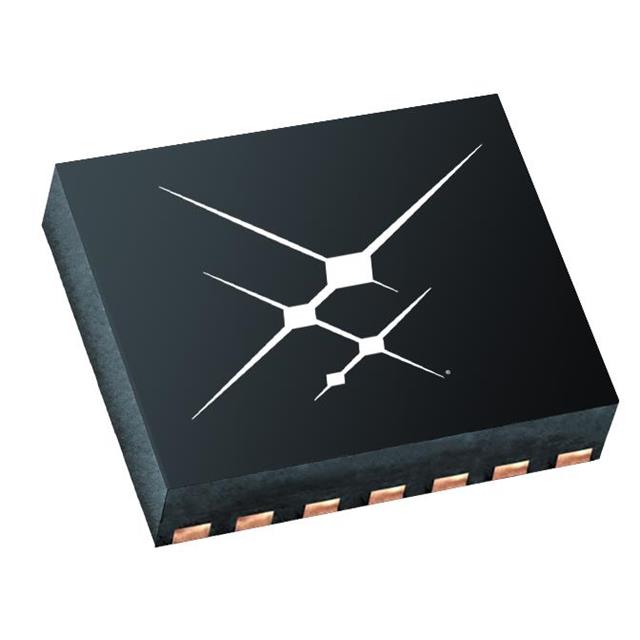

Skyworks Solutions Inc. SI8273GA-IM1	75 ns	75 ns	1000 VAC	8 ns	14-VDFN	CQC CSA UL VDE	4 A	1.8 A	RF Coupling	200 V/ns	4 A		125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	14-DFN (5x5)	4.2 V	30 V						1
Skyworks Solutions Inc. SI8273GB-IM1	75 ns	75 ns	2500 Vrms	8 ns	14-VDFN	CQC CSA UL VDE	4 A	1.8 A	RF Coupling	200 V/ns	4 A		125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	14-DFN (5x5)	4.2 V	30 V						1
Skyworks Solutions Inc. SI8273DBD-AS1	75 ns	75 ns	2500 Vrms	8 ns	16-SOIC	CQC CSA UL VDE	4 A	1.8 A	RF Coupling	200 V/ns	4 A	2	125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	16-SOIC	4.2 V	30 V							Automotive	0.154 in 3.9 mm	AEC-Q100
Skyworks Solutions Inc. SI8273ABD-IM	75 ns	75 ns	2500 Vrms	8 ns	14-VFLGA	CQC CSA UR VDE	4 A	1.8 A	RF Coupling	200 V/ns	4 A	2	125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	14-LGA (5x5)	4.6 V	30 V
Skyworks Solutions Inc. SI8273AB-IM	60 ns	60 ns	2500 Vrms	8 ns	14-VFLGA	CQC CSA UR VDE	4 A	1.8 A	RF Coupling	150 kV/µs	4 A	2	125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	14-LGA (5x5)	4.6 V	30 V
Skyworks Solutions Inc. SI8273ABD-IS1	75 ns	75 ns	2500 Vrms	8 ns	16-SOIC	CQC CSA UR VDE	4 A	1.8 A	RF Coupling	200 V/ns	4 A	2	125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	16-SOIC	4.6 V	30 V								0.154 in 3.9 mm
Skyworks Solutions Inc. SI8273BB-IS1	75 ns	75 ns	2500 Vrms	8 ns	16-SOIC	CQC CSA UR VDE	4 A	1.8 A	RF Coupling	200 V/ns	4 A	2	125 °C	-40 C	10.5 ns 13.3 ns	Surface Mount	16-SOIC	9.6 V	30 V								0.154 in 3.9 mm
