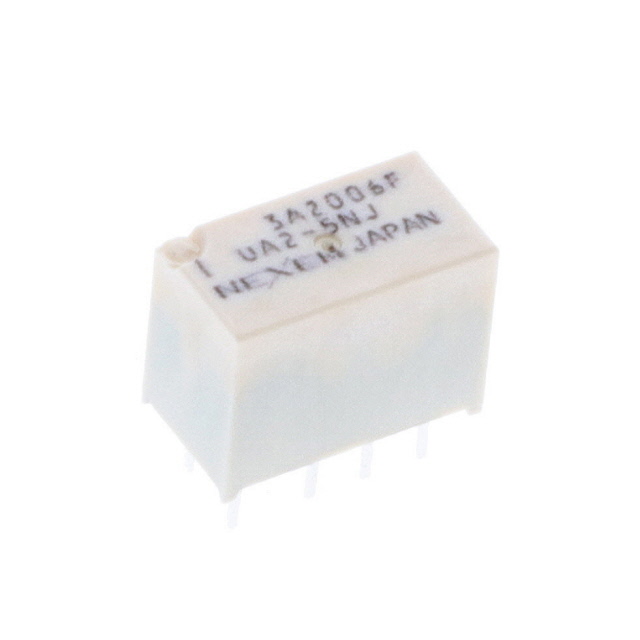

UA2-5N Series
Manufacturer: KEMET
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 5V
| Part | Coil Resistance | Coil Type | Coil Current | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Must Release Voltage | Switching Voltage [Max] | Contact Form | Termination Style | Release Time | Mounting Type | Coil Voltage | Approval Agency | Contact Rating (Current) | Relay Type | Must Operate Voltage | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 250 Ohms | Non Latching | 0.02 A | 220 W 250 VA | 85 °C | -40 C | 2 ms | 0.5 VDC | 220 VDC 250 VAC | DPDT (2 Form C) | PC Pin | 1 ms | Through Hole | 5 VDC | CSA TUV UL | 1 A | General Purpose | 3.75 VDC | Gold Alloy Silver Alloy |
 KEMET | 178 Ohms | Non Latching | 28.1 mA | 220 W 250 VA | 85 °C | -40 C | 2 ms | 0.5 VDC | 220 VDC 250 VAC | DPDT (2 Form C) | PC Pin | 1 ms | Through Hole | 5 VDC | CSA TUV UL | 1 A | General Purpose | 3.75 VDC | Gold Alloy Silver Alloy |
