316370 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

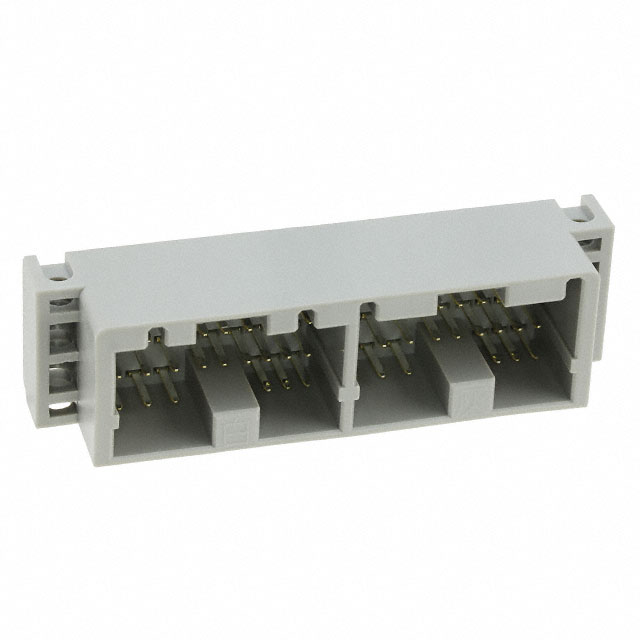

CONN HEADER R/A 48POS
| Part | Fastening Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Insulation Material | Termination | Contact Shape | Insulation Color | Features | Number of Positions Loaded | Mounting Type | Shrouding | Contact Finish - Post | Number of Positions | Style | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Number of Rows | Insulation Height [z] | Insulation Height [z] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Locking Ramp | Automotive General Purpose | -40 °C | 120 °C | Tab | Polybutylene Terephthalate (PBT) | Solder | Rectangular | Gray | Mounting Flange | All | Through Hole Right Angle | Shrouded - 4 Wall | Tin | 48 | Board to Cable/Wire | Varies by Wire Gauge | 7 mm | 0.276 in | 3 | 19.89 mm | 0.783 in | Brass |
