2.00mm Pitch Milli-Grid Header, Through Hole, Vertical, 28 Circuits, 0.38µm Gold (Au) Selective Plating, Pocket Tray Packaging, Lead-Free
2.00mm Pitch Milli-Grid Header, Through Hole, Vertical, 28 Circuits, 0.38µm Gold (Au) Selective Plating, Pocket Tray Packaging, Lead-Free
2.00mm Pitch Milli-Grid Header, Through Hole, Vertical, 28 Circuits, 0.38µm Gold (Au) Selective Plating, Pocket Tray Packaging, Lead-Free
| Part | Row Spacing - Mating | Row Spacing - Mating | Applications | Contact Shape | Insulation Height | Insulation Height | Contact Finish - Mating | Style | Number of Rows | Contact Length - Mating | Contact Length - Mating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Overall Contact Length [x] | Overall Contact Length [x] | Number of Positions Loaded | Connector Type | Termination | Insulation Color | Material Flammability Rating | Fastening Type | Contact Length - Post | Contact Length - Post | Contact Material | Number of Positions | Insulation Material | Contact Finish - Post | Shrouding | Pitch - Mating [x] | Pitch - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

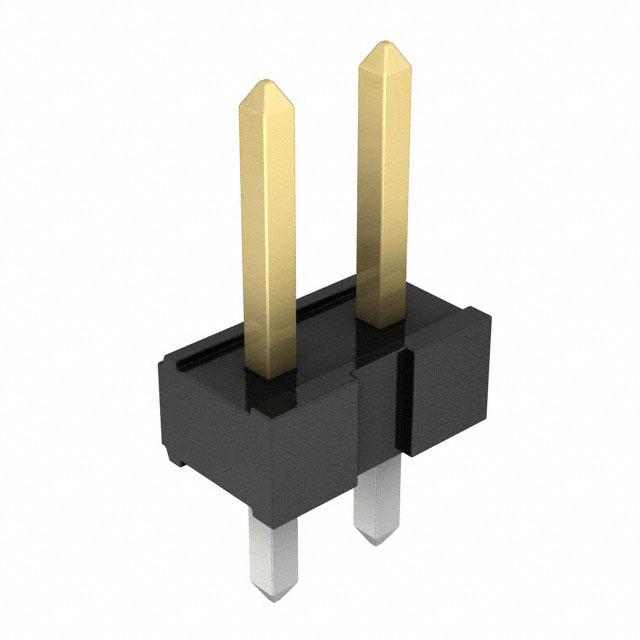

 Molex | 0.079 in | 2 mm | Automotive General Purpose Telecommunications | Square | 1.5 mm | 0.059 " | Gold | Board to Board Cable | 2 | 4 mm | 0.157 in | Through Hole | 15 µin | 0.38 µm | Male Pin | 8.1 mm | 0.319 in | All | Breakaway Header | Solder | Black | UL94 V-0 | Push-Pull | 0.102 in | 2.6 mm | Phosphor Bronze | 2 | Glass Filled Nylon 4/6 Polyamide (PA46) | Tin | Unshrouded | ||
 Molex | ||||||||||||||||||||||||||||||||

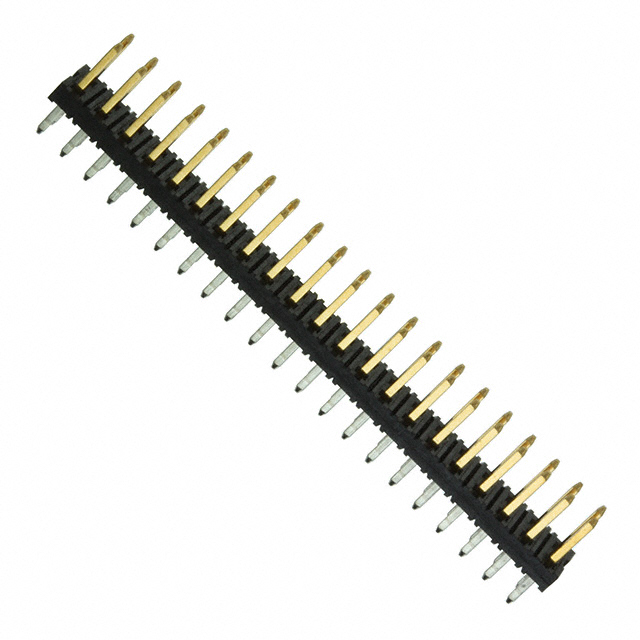

 Molex | 0.079 in | 2 mm | Automotive General Purpose Telecommunications | Square | 1.5 mm | 0.059 " | Gold | Board to Board Cable | 2 | 4 mm | 0.157 in | Through Hole | 15 µin | 0.38 µm | Male Pin | 8.1 mm | 0.319 in | All | Breakaway Header | Solder | Black | UL94 V-0 | Push-Pull | 0.102 in | 2.6 mm | Phosphor Bronze | 42 | Glass Filled Nylon Polyamide (PA) | Tin | Unshrouded | 0.079 in | 2 mm |

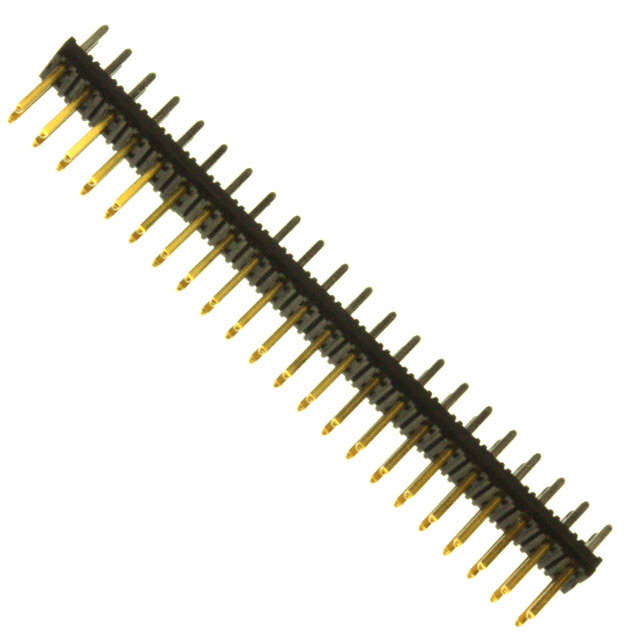

 Molex | 0.079 in | 2 mm | Automotive General Purpose Telecommunications | Square | 1.5 mm | 0.059 " | Gold | Board to Board Cable | 2 | 4 mm | 0.157 in | Through Hole | 15 µin | 0.38 µm | Male Pin | 8.1 mm | 0.319 in | All | Breakaway Header | Solder | Black | UL94 V-0 | Push-Pull | 0.102 in | 2.6 mm | Phosphor Bronze | 44 | Glass Filled Nylon Polyamide (PA) | Tin | Unshrouded | 0.079 in | 2 mm |
 Molex | 0.079 in | 2 mm | Automotive General Purpose Telecommunications | Square | 1.5 mm | 0.059 " | Gold | Board to Board Cable | 2 | 4 mm | 0.157 in | Through Hole | 15 µin | 0.38 µm | Male Pin | 8.1 mm | 0.319 in | All | Breakaway Header | Solder | Black | UL94 V-0 | Push-Pull | 0.102 in | 2.6 mm | Phosphor Bronze | 18 | Glass Filled Nylon 4/6 Polyamide (PA46) | Tin | Unshrouded | 0.079 in | 2 mm |
