NYW14025012 Series
Manufacturer: YS TECH USA
Beta
⌘K

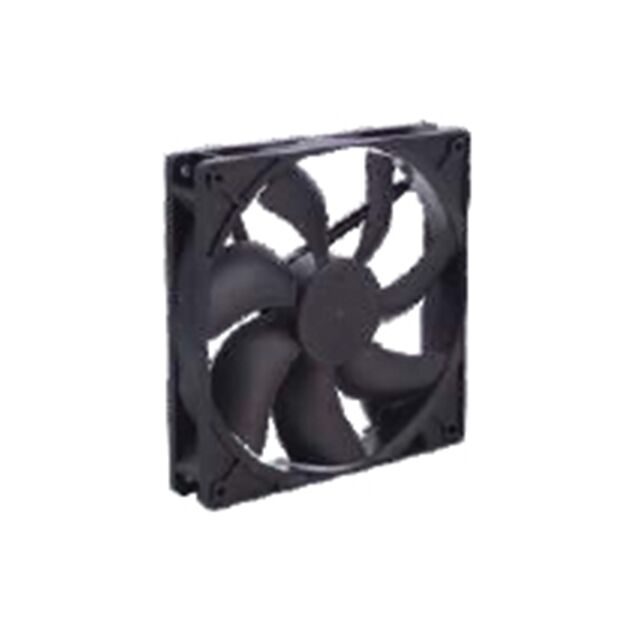

FAN AXIAL 140X25MM 12VDC WIRE
| Part | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Fan Type | Width [y] | Static Pressure | Static Pressure | Termination | Voltage - Rated | Size / Dimension [x] | Size / Dimension [y] | Bearing Type | Noise | Power (Watts) | Air Flow | Air Flow | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | 70 mA | Polybutylene Terephthalate (PBT) | 40 °C 50000 Hrs | 7 V | 13.2 VDC | Tubeaxial | 25 mm | 12.7 Pa | 0.051 in H2O | 2 Wire Leads | 12 VDC | 140 mm | 140 mm | Sintec | 21.7 dB(A) | 840 mW | 1.74 mł/min | 62.1 CFM | 1050 RPM |
