CFM260 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 12V 18.34(CONVECTION)A/21.67(FORCED AIR)A 260W 10-PIN

Part	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Voltage - Output 1	Efficiency	Number of Outputs	Voltage - Isolation	Applications	Current - Output 1	Features	Power (Watts)	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]
Cincon Electronics Co. LTD CFM260S120C	Enclosed	40.5 mm	2.52 in	4.6 "	116.8 mm	1.59 in	64 mm	Chassis Mount	12 V	92 %	1	3000 V	Household Appliances ITE (Commercial)	21.67 A	PFC Universal Input	260 Watts	60335-1 62368-1	80 °C	-30 °C

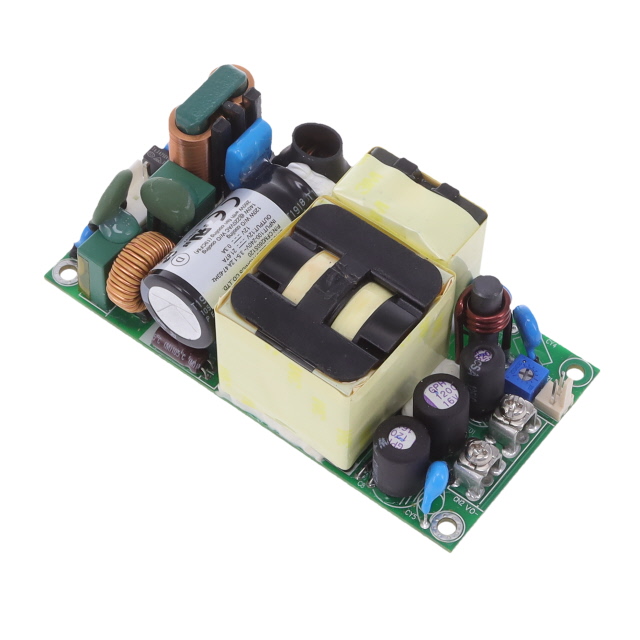

Cincon Electronics Co. LTD CFM260S120	Open Frame		2 in	4 "	101.6 mm	1.32 in		Chassis Mount	12 V	92 %	1	3000 V	Household Appliances ITE (Commercial)	21.67 A	PFC Universal Input	260 Watts	60335-1 62368-1	80 °C	-30 °C	33.6 mm	50.8 mm

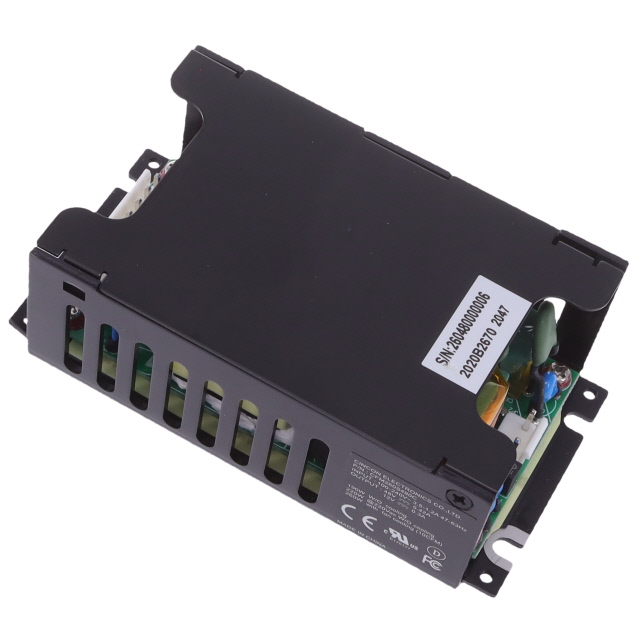

Cincon Electronics Co. LTD CFM260S480C	Enclosed	40.5 mm	2.52 in	4.6 "	116.8 mm	1.59 in	64 mm	Chassis Mount	48 V	93 %	1	3000 V	Household Appliances ITE (Commercial)	5.42 A	PFC Universal Input	260 Watts	60335-1 62368-1	80 °C	-30 °C
Cincon Electronics Co. LTD CFM260S240	Open Frame		2 in	4 "	101.6 mm	1.32 in		Chassis Mount	24 V	93 %	1	3000 V	Household Appliances ITE (Commercial)	10.83 A	PFC Universal Input	260 Watts	60335-1 62368-1	80 °C	-30 °C	33.6 mm	50.8 mm

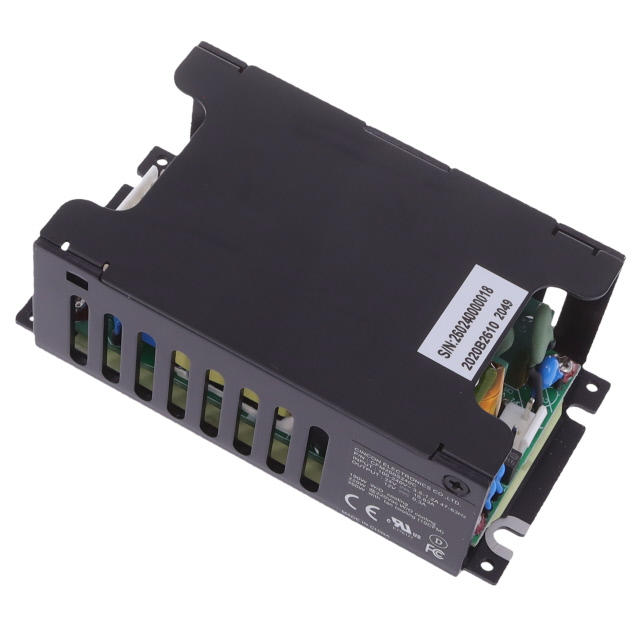

Cincon Electronics Co. LTD CFM260S240C	Enclosed	40.5 mm	2.52 in	4.6 "	116.8 mm	1.59 in	64 mm	Chassis Mount	24 V	93 %	1	3000 V	Household Appliances ITE (Commercial)	10.83 A	PFC Universal Input	260 Watts	60335-1 62368-1	80 °C	-30 °C
