CXM-3-40 Series
Manufacturer: Luminus Devices Inc.
Beta
⌘K

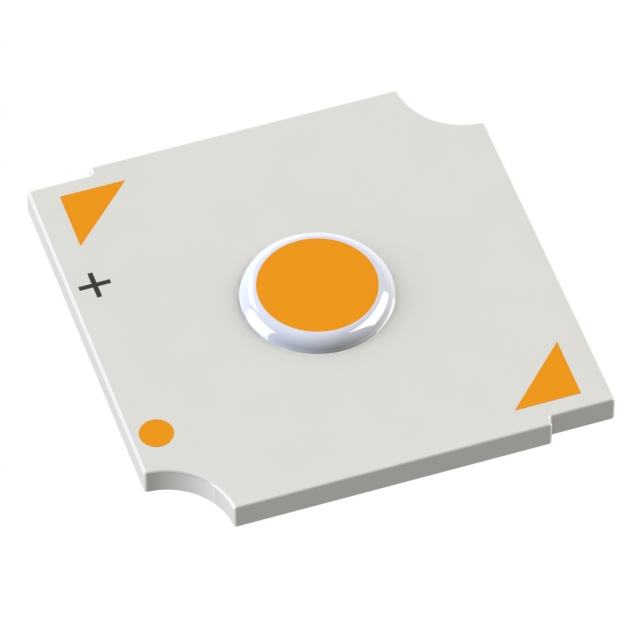

LED COB CXM-3 NEUT WHT SQU 4000K
| Part | Lens Type | Light Emitting Surface (LES) [diameter] | Color | Viewing Angle | CRI (Color Rendering Index) | Current - Max [Max] | Lumens/Watt @ Current - Test | Type | Configuration | Luminous Flux @ Current/Temperature | CCT (K) | CCT (K) | Voltage - Forward (Vf) (Typ) | Size / Dimension [y] | Size / Dimension [x] | Temperature - Test | Height [z] | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminus Devices Inc. | Flat | 3.5 mm | Neutral White | 120 ° | 95 | 400 mA | 110 lm/W | Chip On Board (COB) | Square | 300 lm | 4000 K | 3-Step MacAdam Ellipse | 17.1 V | 13.5 mm | 13.5 mm | 25 °C | 1.37 mm | |
Luminus Devices Inc. | Flat | 3.5 mm | Neutral White | 120 ° | 95 | 200 mA | 110 lm/W | Chip On Board (COB) | Square | 300 lm | 4000 K | 3-Step MacAdam Ellipse | 34.2 V | 13.5 mm | 13.5 mm | 25 °C | 1.37 mm | 80 mA |
Luminus Devices Inc. | Flat | 3.5 mm | Neutral White | 120 ° | 90 | 200 mA | 119 lm/W | Chip On Board (COB) | Square | 325 lm | 4000 K | 3-Step MacAdam Ellipse | 34.2 V | 13.5 mm | 13.5 mm | 25 °C | 1.37 mm | 80 mA |
