WZ-2RQ Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPST-NC 10A 125V
| Part | Features | Operating Position | Operating Position | Release Force | Pretravel | Pretravel | Overtravel [custom] | Overtravel [custom] | Switch Function | Mounting Type | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Operating Force [Max] | Operating Force [Min] | Termination Style | Circuit | Current Rating (Amps) | Mechanical Life | Differential Travel | Differential Travel | Actuator Type | Operating Force | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Steel Plunger | 38.1 mm | 1.5 in | 113 gf | 0.015 " | 0.4 mm | 5.6 mm | 0.219 " | On-Mom | Chassis Mount | 125 V | -55 C | 85 °C | 125 VDC | 368 gf | 255 gf | Screw Terminal | SPST-NC | 0.5 mA 10 A | 20000000 Cycles | 0.05 mm | 0.002 in | Overtravel Plunger | ||

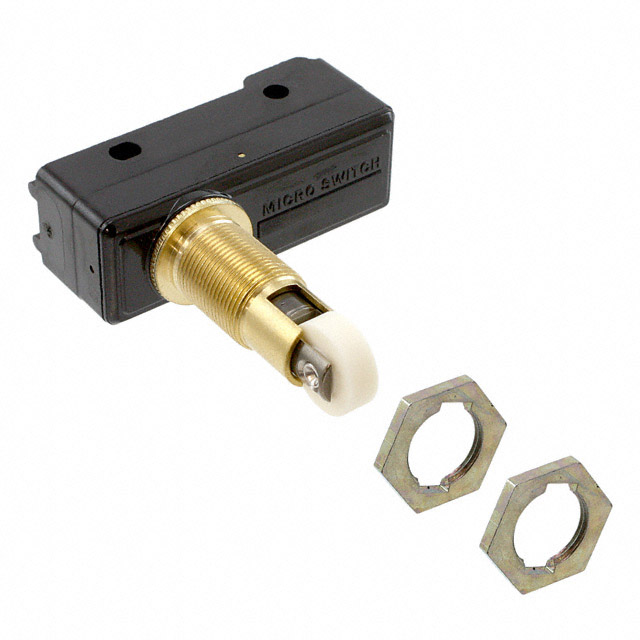

 Honeywell Sensing and Productivity Solutions | Nylon Roller | 33.4 mm | 1.313 in | 113 gf | 0.015 " | 0.4 mm | 3.6 mm | 0.141 " | On-Mom | Panel Mount | 125 V | -55 C | 85 °C | 125 VDC | 368 gf | 255 gf | Solder Lug | SPST-NC | 15 A 500 mA | 20000000 Cycles | 0.05 mm | 0.002 in | Cross Roller Plunger | ||
 Honeywell Sensing and Productivity Solutions | Steel Plunger | 21.8 mm | 0.859 in | 113 gf | 0.015 " | 0.4 mm | 5.6 mm | 0.219 " | On-Mom | Panel Mount | 125 V | -55 C | 85 °C | 125 VDC | 368 gf | 255 gf | Screw Terminal | SPST-NC | 15 A 500 mA | 20000000 Cycles | 0.05 mm | 0.002 in | Overtravel Plunger | ||

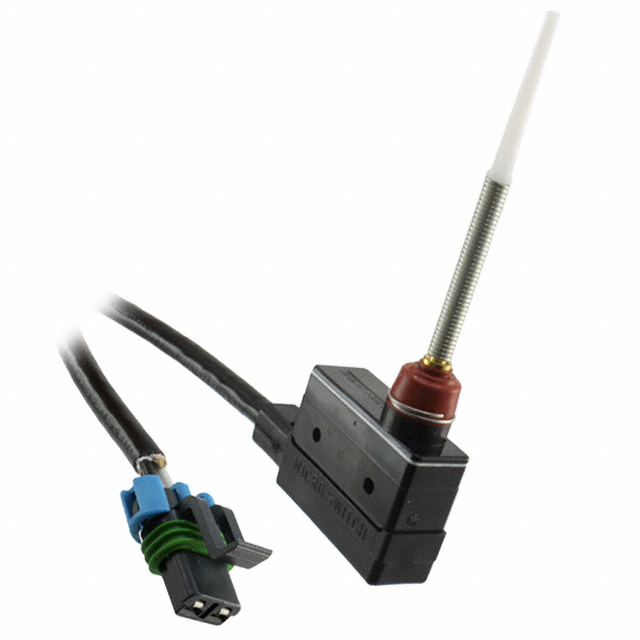

 Honeywell Sensing and Productivity Solutions | 0.5 " | 12.7 mm | On-Mom | Chassis Mount | 125 V | -55 C | 85 °C | Cable with Connector Connector | SPST-NC | 15 A | 20000000 Cycles | Rod Spring | 71 gf | Splash Proof |
