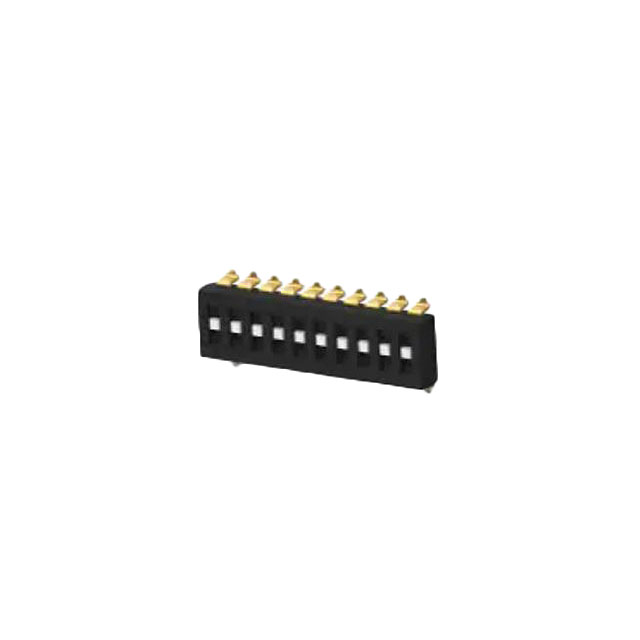

TDS10 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Length | Length | Mechanical Life | Circuit | Electrical Life | Body Material | Contact Finish | Termination Style | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Voltage Rating | Contact Material | Mounting Type | Pitch | Pitch | Actuator Type | Actuator Level | Washable | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 26.57 mm | 1.046 in | 2000 Cycles | SPDT SPST | 2000 Steps | Polyamide (PA) Nylon | Gold | Gull Wing | 3.7 mm | 0.146 in | 85 °C | -20 ░C | 10 | 24 VDC | Copper Alloy | Surface Mount | 2.54 mm | 0.1 " | Slide (Standard) | Flush Recessed | 25 mA |
