SUS61212 Series

Catalog

DC DC CONVERTER 12V

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Isolation	Voltage - Output 1	Features	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Package / Case	Type	Mounting Type	Applications	Power (Watts)

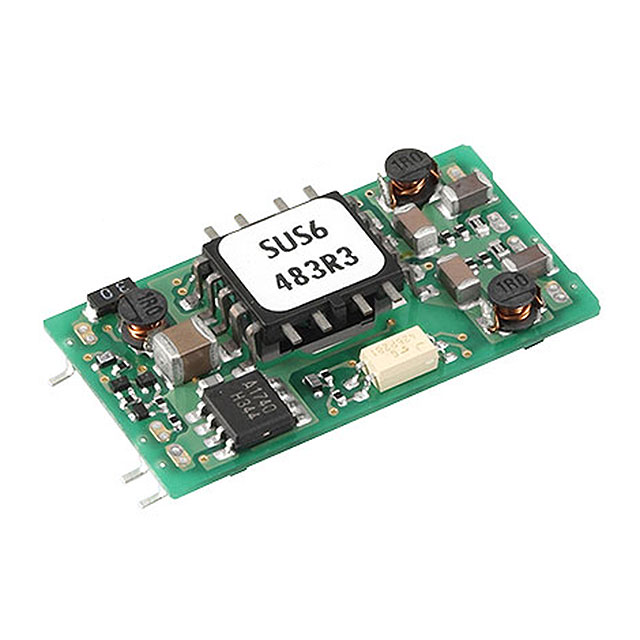

Cosel USA, Inc. SUS61212B	500 mA	9 V	-40 °C	85 °C	1	500 V	12 V	OCP Remote On/Off	18 V	0.71 in	6.5 mm	1.24 in	18.1 mm	0.26 in	31.6 mm	85 %	6-SMD Module	Isolated Module	Surface Mount	ITE (Commercial)
Cosel USA, Inc. SUS61212BP-G	500 mA	9 V	-40 °C	85 °C	1	500 V	12 V		18 V	0.71 in	6.5 mm	1.24 in	18.1 mm	0.26 in	31.6 mm	85 %	6-SMD Module	Isolated Module	Surface Mount	ITE (Commercial)	6 W
Cosel USA, Inc. SUS61212BP	500 mA	9 V	-40 °C	85 °C	1	500 V	12 V		18 V	0.71 in	6.5 mm	1.24 in	18.1 mm	0.26 in	31.6 mm	85 %	6-SMD Module	Isolated Module	Surface Mount	ITE (Commercial)	6 W

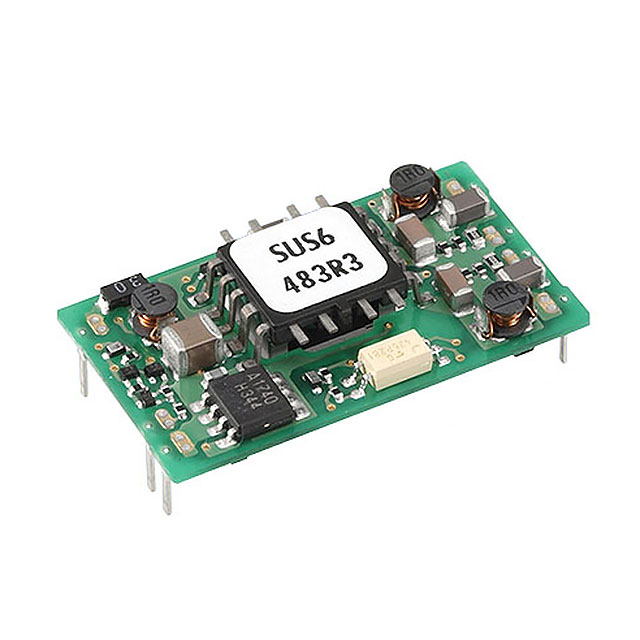

Cosel USA, Inc. SUS61212C	500 mA	9 V	-40 °C	85 °C	1	500 V	12 V	OCP Remote On/Off	18 V	0.71 in	6.5 mm	1.24 in	18.1 mm	0.26 in	31.6 mm	85 %	6-DIP Module	Isolated Module	Through Hole	ITE (Commercial)
