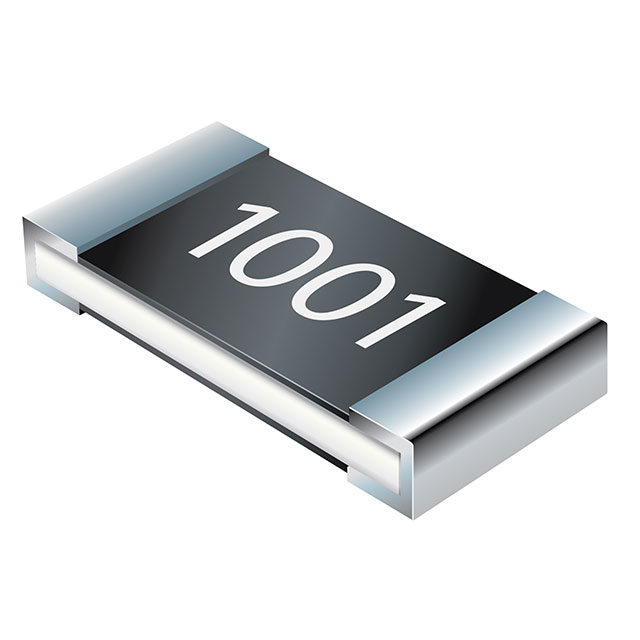

CRS1206A Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES 5.1 OHM 1% 1/2W 1206
| Part | Ratings | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) | Power (Watts) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Temperature Coefficient | Composition | Features | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Supplier Device Package | Number of Terminations [custom] | Tolerance | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | AEC-Q200 | 0.063 " | 1.6 mm | 0.122 " | 3.1 mm | 0.5 W | 0.5 W | 0.026 in | 0.65 mm | 100 ppm/°C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 155 C | -55 C | 1206 (3216 Metric) | 1206 | 2 | 1 % | 5.1 Ohms |
Bourns Inc. | AEC-Q200 | 0.063 " | 1.6 mm | 0.122 " | 3.1 mm | 0.5 W | 0.5 W | 0.026 in | 0.65 mm | 200 ppm/°C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 155 C | -55 C | 1206 (3216 Metric) | 1206 | 2 | 5 % | 150 Ohms |
Bourns Inc. | AEC-Q200 | 0.063 " | 1.6 mm | 0.122 " | 3.1 mm | 0.5 W | 0.5 W | 0.026 in | 0.65 mm | 100 ppm/°C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 155 C | -55 C | 1206 (3216 Metric) | 1206 | 2 | 1 % | 22 kOhms |
 Bourns Inc. | AEC-Q200 | 0.063 " | 1.6 mm | 0.122 " | 3.1 mm | 0.5 W | 0.5 W | 0.026 in | 0.65 mm | 200 ppm/°C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 155 C | -55 C | 1206 (3216 Metric) | 1206 | 2 | 5 % | 10 Ohms |
