M13244 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

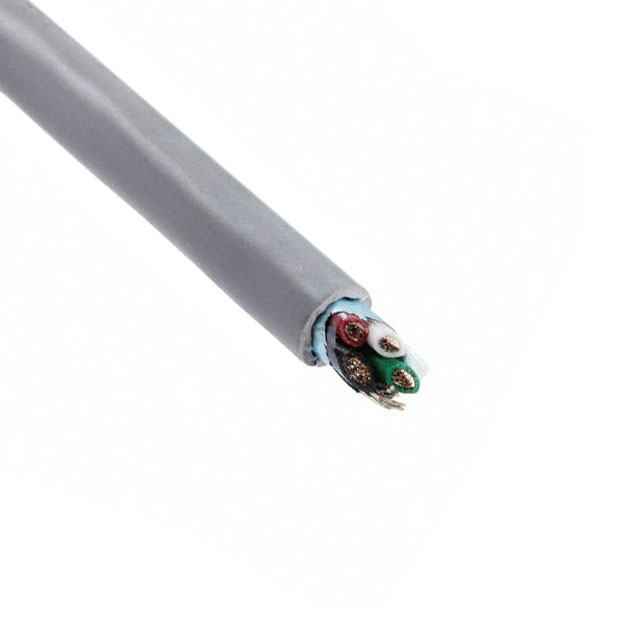

CABLE 4COND 18AWG SHLD 1000'
| Part | Jacket (Insulation) Material | Shield Type | Jacket Color | Shield Coverage | Conductor Material | Wire Gauge | Features | Ratings | Length | Length | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Number of Conductors | Voltage | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Foil | Slate | 100 % | Copper Tinned | 18 AWG | Drain Wire Rip Cord | UL Style 2464 | 1000 ft | 304.8 m | Aluminum | -20 C | 80 C | Poly-Vinyl Chloride (PVC) | 4 | 300 V | Multi-Conductor | 0.889 mm | 0.035 in | 0.249 in | 6.32 mm | 19 | 30 AWG | ||
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Foil | Slate | 100 % | Copper Tinned | 18 AWG | Drain Wire Rip Cord | UL Style 2464 | 3000 ft | 914.4 m | Aluminum | -20 C | 80 C | Poly-Vinyl Chloride (PVC) | 4 | 300 V | Multi-Conductor | 0.889 mm | 0.035 in | 0.249 in | 6.32 mm | 19 | 30 AWG | ||
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Foil | Slate | 100 % | Copper Tinned | 18 AWG | Drain Wire Rip Cord | UL Style 2464 | Aluminum | -20 C | 80 C | Poly-Vinyl Chloride (PVC) | 4 | 300 V | Multi-Conductor | 0.889 mm | 0.035 in | 0.249 in | 6.32 mm | 19 | 30 AWG | 500 ' | 152.4 m |
