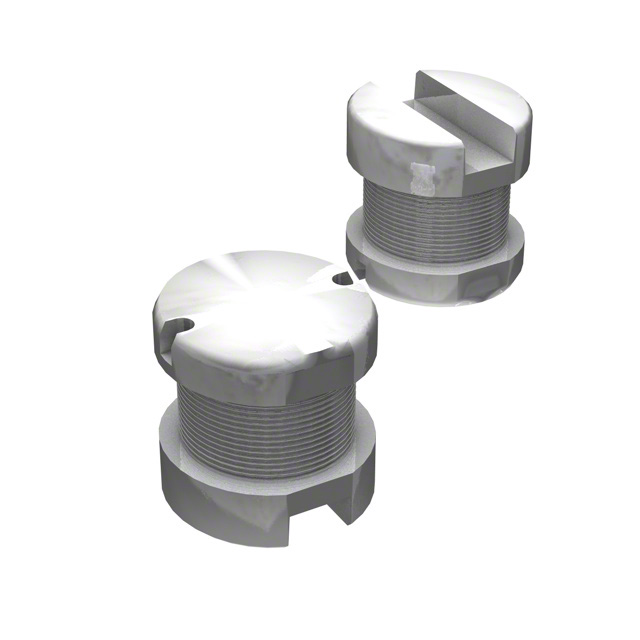

SDR0604 Series

Catalog

SURFACE MOUNT POWER INDUCTOR, SDR0604 SERIES, 180 H, 10%, UNSHIELDED, 1.38 OHM, 0.38 A ROHS COMPLIANT: YES

Part	Mounting Type	Current - Saturation (Isat)	DC Resistance (DCR)	Type	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Package / Case	Tolerance	Inductance Frequency - Test	Inductance	DC Resistance (DCR) [Max]	Q @ Freq	Q @ Freq [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]
Bourns Inc. SDR0604-181KL	Surface Mount	500 mA	1.38 Ohm	Drum Core Wirewound	6 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	0.38 A	20	796 kHz	Ferrite	125 °C	-40 C	Unshielded	Nonstandard	10 %	1 kHz	180 µH
Bourns Inc. SDR0604-471KL	Surface Mount	300 mA		Drum Core Wirewound	3 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	0.21 A			Ferrite	125 °C	-40 C	Unshielded	Nonstandard	10 %	1 kHz	470 µH	3.3 Ohm	25 796 kHz
Bourns Inc. SDR0604-2R2ML	Surface Mount	5.1 A		Drum Core Wirewound	79 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	2.8 A	33		Ferrite	125 °C	-40 C	Unshielded	Nonstandard	20 %	1 kHz	2.2 µH			7.96 MHz
Bourns Inc. SDR0604-5R6ML	Surface Mount	2.7 A		Drum Core Wirewound	30 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	1.7 A	20		Ferrite	125 °C	-40 C	Unshielded	Nonstandard	20 %	1 kHz	5.6 µH	80 mOhm		7.96 MHz
Bourns Inc. SDR0604-150YL	Surface Mount	1.6 A		Drum Core Wirewound	20 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	1.3 A			Ferrite	125 °C	-40 C	Unshielded	Nonstandard	15 %	1 kHz	15 µH	140 mOhm	2.52 MHz 30
Bourns Inc. SDR0604-121KL	Surface Mount	0.6 A		Drum Core Wirewound	7 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	480 mA			Ferrite	125 °C	-40 C	Unshielded	Nonstandard	10 %	1 kHz		930 mOhm	22 796 kHz
Bourns Inc. SDR0604-100KL	Surface Mount			Drum Core Wirewound						0.189 "	4.8 mm				Ferrite	125 °C	-40 C	Unshielded	Nonstandard	10 %	1 kHz	10 µH				0.228 "	5.8 mm
Bourns Inc. SDR0604-821KL	Surface Mount	200 mA		Drum Core Wirewound	2 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	140 mA			Ferrite	125 °C	-40 C	Unshielded	Nonstandard	10 %	1 kHz	820 µH	5.2 Ohm	25 252 kHz
Bourns Inc. SDR0604-680KL	Surface Mount	840 mA		Drum Core Wirewound	10 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	0.62 A			Ferrite	125 °C	-40 C	Unshielded	Nonstandard	10 %	1 kHz	68 µH	520 mOhm	22
Bourns Inc. SDR0604-1R2ML	Surface Mount			Drum Core Wirewound	155 MHz	0.228 in	5.8 mm	0.228 in	5.8 mm	0.189 "	4.8 mm	4.2 A	35		Ferrite	125 °C	-40 C	Unshielded	Nonstandard	20 %	1 kHz	1.2 µH	20 mOhm		7.96 MHz
