CHM-9-27 Series

Catalog

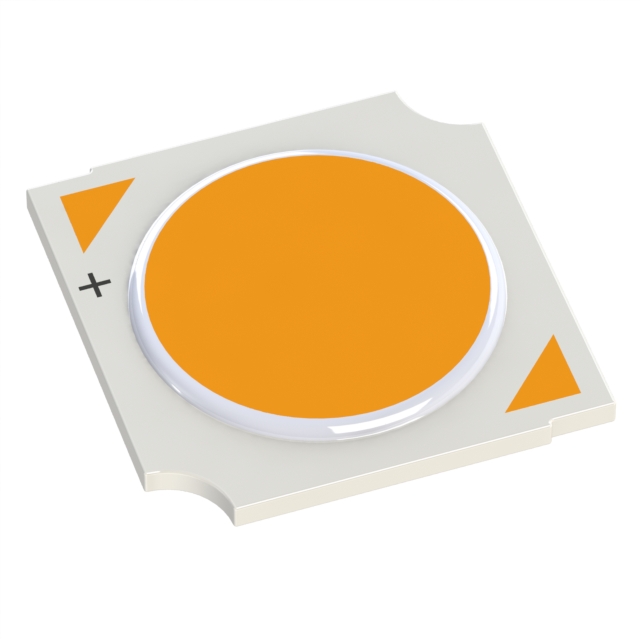

LED COB CHM9 WM WH SQUARE 2700K

Part	Height [z]	Color	Configuration	Current - Max [Max]	Current - Test	Type	Temperature - Test	CCT (K)	CCT (K)	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Lens Type	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Viewing Angle
Luminus Devices Inc. CHM-9-27-80-36-XD20-F4-3	1.37 mm	Warm White	Square	990 mA	360 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse	34 V	1600 lm	Flat	131 lm/W	15 mm	15 mm	9.6 mm	80	120 °
Luminus Devices Inc. CHM-9-27-95-36-XD20-F4-3	1.37 mm	Warm White	Square	990 mA	360 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse	34 V	1260 lm	Flat	103 lm/W	15 mm	15 mm	9.6 mm	95	120 °
Luminus Devices Inc. CHM-9-27-90-36-AC00-F2-3	1.37 mm	Warm White	Square	720 mA	360 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse	35 V	1020 lm	Flat	81 lm/W	13.5 mm	13.5 mm	9 mm	90	120 °
Luminus Devices Inc. CHM-9-27-95-36-XH00-F2-2	1.37 mm	Warm White	Square	1.05 A	720 mA	Chip On Board (COB)	85 °C	2700 K	2-Step MacAdam Ellipse	36 V	1730 lm	Flat	67 lm/W	19 mm	19 mm	9 mm	95	120 °
Luminus Devices Inc. CHM-9-27-90-36-XD20-F4-3	1.37 mm	Warm White	Square	990 mA	360 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse	34 V	1315 lm	Flat	108 lm/W	15 mm	15 mm	9.6 mm	90	120 °
Luminus Devices Inc. CHM-9-27-80-18-AC10-F3-3	1.37 mm	Warm White	Square	545 mA	360 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse	18 V		Flat		13.5 mm	13.5 mm	9 mm	80	120 °
Luminus Devices Inc. CHM-9-27-95-36-AA00-F2-3	1.37 mm	Warm White	Square	545 mA	360 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse	35 V	965 lm	Flat	77 lm/W	15 mm	15 mm	9 mm	95	120 °
Luminus Devices Inc. CHM-9-27-95-36-AC10-F3-3	1.37 mm	Warm White	Square	720 mA	360 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse	35.5 V	1125 lm	Flat	88 lm/W	13.5 mm	13.5 mm	9 mm	95	120 °
Luminus Devices Inc. CHM-9-27-95-18-AC10-F3-3	1.37 mm	Warm White	Square		720 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse		1330 lm	Flat	109 lm/W	13.5 mm	13.5 mm	9.6 mm	95	120 °
Luminus Devices Inc. CHM-9-27-80-36-XH00-F2-3	1.37 mm	Warm White	Square	1.05 A	720 mA	Chip On Board (COB)	85 °C	2700 K	3-Step MacAdam Ellipse	36 V	2430 lm	Flat	94 lm/W	19 mm	19 mm	9 mm	80	120 °
