0372-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Socket Depth	Socket Depth	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall	Length - Overall
Mill-Max Manufacturing Corp. 0372-0-15-80-13-14-10-0	-55 C	125 °C	Gold	Beryllium Copper	5.72 mm	0.225 in	1.22 mm	0.064 in	0.048 in	1.63 mm	0.25 Ám	10 Áin	2.24 mm	0.088 "	Solder	3 mm	0.118 in	No Tail	0.102 in	2.59 mm	5.72 mm	0.225 in

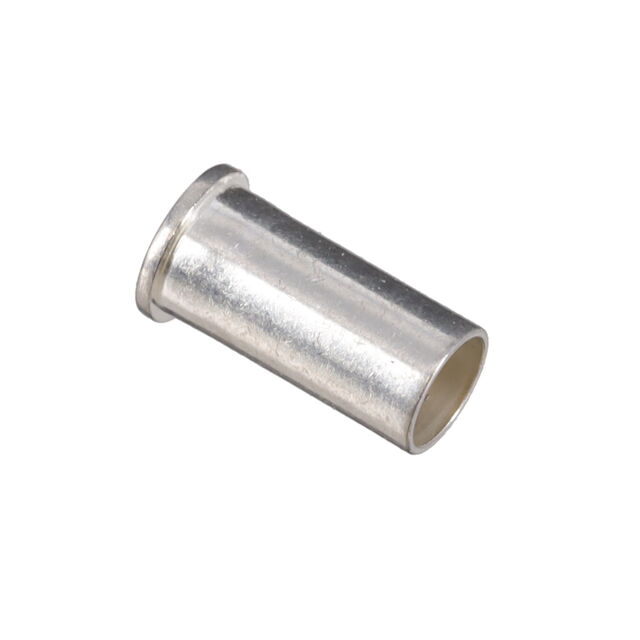

Mill-Max Manufacturing Corp. 0372-0-15-01-13-14-10-0	-55 C	125 °C	Gold	Beryllium Copper	5.72 mm	0.225 in	1.22 mm	0.064 in	0.048 in	1.63 mm	0.25 Ám	10 Áin	2.24 mm	0.088 "	Solder	3 mm	0.118 in	No Tail	0.102 in	2.59 mm	5.72 mm	0.225 in
Mill-Max Manufacturing Corp. 0372-0-15-80-13-80-10-0	-55 C	125 °C	Tin	Beryllium Copper	5.72 mm	0.225 in	1.22 mm	0.064 in	0.048 in	1.63 mm	5.08 Ám	200 Áin	2.24 mm	0.088 "	Solder	3 mm	0.118 in	No Tail	0.102 in	2.59 mm	5.72 mm	0.225 in
Mill-Max Manufacturing Corp. 0372-0-15-01-13-01-10-0	-55 C	125 °C	Tin-Lead	Beryllium Copper	5.72 mm	0.225 in	1.22 mm	0.064 in	0.048 in	1.63 mm	5.08 Ám	200 Áin	2.24 mm	0.088 "	Solder	3 mm	0.118 in	No Tail	0.102 in	2.59 mm	5.72 mm	0.225 in

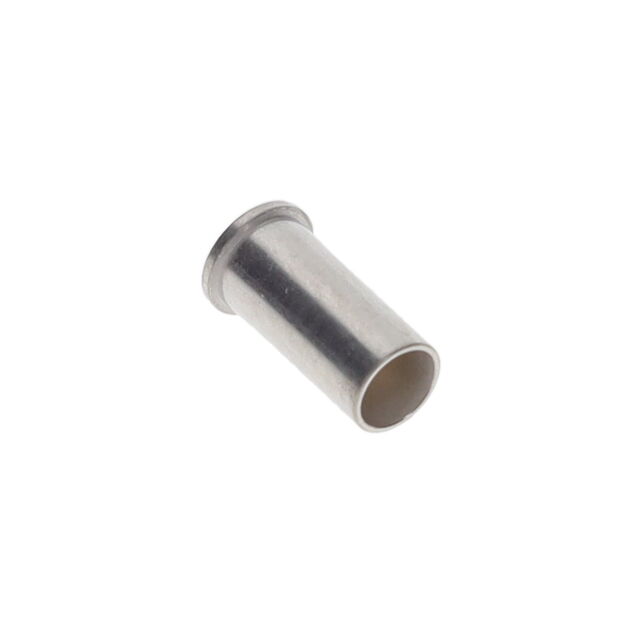

Mill-Max Manufacturing Corp. 0372-0-15-80-13-27-10-0	-55 C	125 °C	Gold	Beryllium Copper	5.72 mm	0.225 in	1.22 mm	0.064 in	0.048 in	1.63 mm	0.76 Ám	30 Áin	2.24 mm	0.088 "	Solder	3 mm	0.118 in	No Tail	0.102 in	2.59 mm	5.72 mm	0.225 in
Mill-Max Manufacturing Corp. 0372-0-15-01-13-27-10-0	-55 C	125 °C	Gold	Beryllium Copper	5.72 mm	0.225 in	1.22 mm	0.064 in	0.048 in	1.63 mm	0.76 Ám	30 Áin	2.24 mm	0.088 "	Solder	3 mm	0.118 in	No Tail	0.102 in	2.59 mm	5.72 mm	0.225 in
