A3CA-90A Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH PUSHBUTTON DPST 1A 125V
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [diameter] | Mounting Type | Current Rating (Amps) | Color - Actuator/Cap | Circuit | Termination Style | Switch Function | Voltage Rating - AC | Type | Ingress Protection | Actuator Type | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

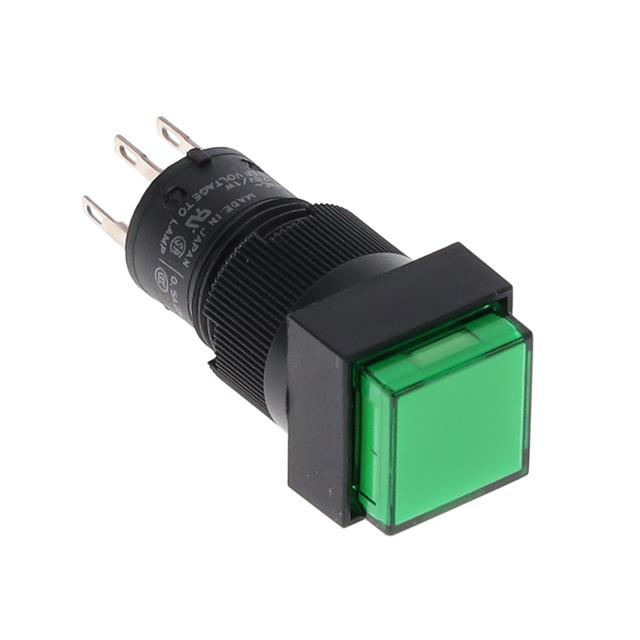

 Omron Automation and Safety | 100000 Cycles | 1000000 Cycles | 12 mm | Panel Mount Front | 1 A | Green | DPST-NO/NC | Solder Lug | Off-Mom On-Mom | 125 V | Standard | IP40 | Button Square | No Marking | 55 °C | -10 °C | 30 V |

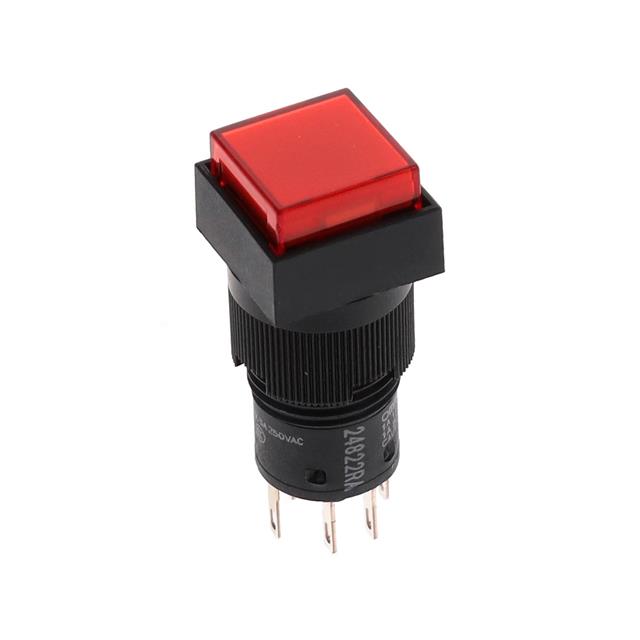

 Omron Automation and Safety | 100000 Cycles | 1000000 Cycles | 12 mm | Panel Mount Front | 1 A | Red | DPST-NO/NC | Solder Lug | Off-Mom On-Mom | 125 V | Standard | IP40 | Button Square | No Marking | 55 °C | -10 °C | 30 V |
