782001 Series

Catalog

HOOK-UP SOLID 20AWG RED 1000'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand	Jacket (Insulation) Material	Voltage	Conductor Material	Length	Length	Wire Gauge	Length [x]	Length [x]
ALPHA WIRE 782001 RD001	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	Red	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned	304.8 m	1000 ft	20 AWG
ALPHA WIRE 782001 YL001	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	Yellow	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned	304.8 m	1000 ft	20 AWG
ALPHA WIRE 782001 RD005	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	Red	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned			20 AWG	100 ft	30.5 m

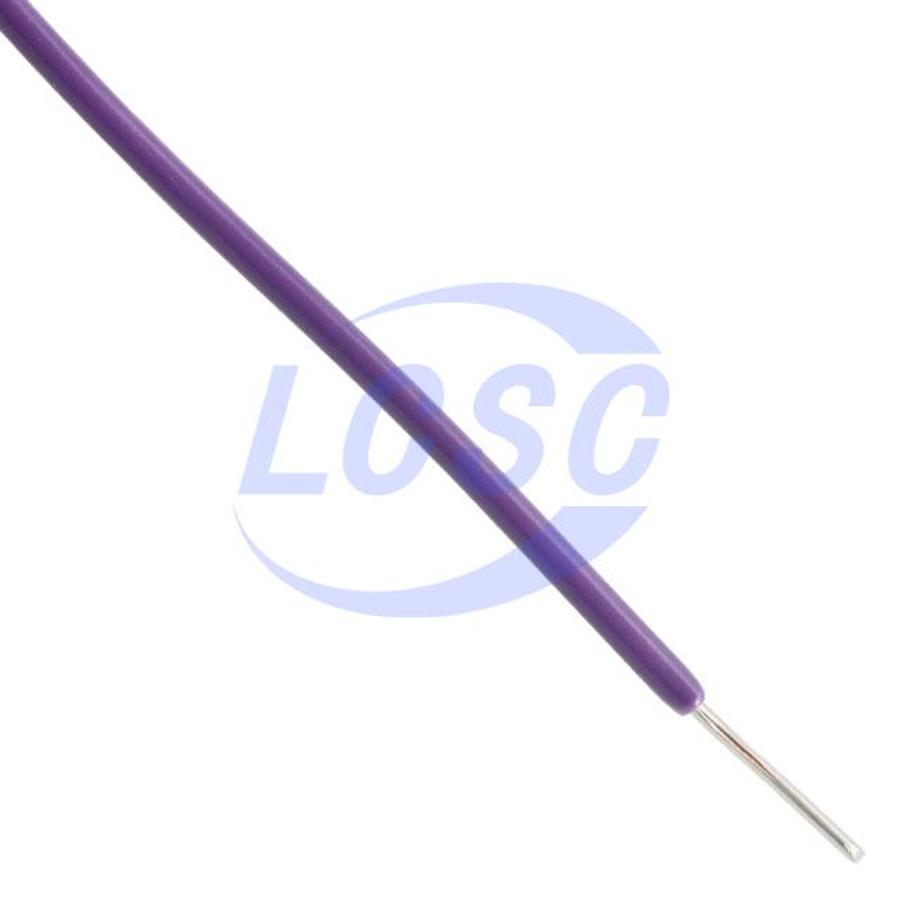

ALPHA WIRE 782001 VI001	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	Violet	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned	304.8 m	1000 ft	20 AWG
ALPHA WIRE 782001 SL005	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	Slate	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned			20 AWG	100 ft	30.5 m
ALPHA WIRE 782001 OR005	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	Orange	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned			20 AWG	100 ft	30.5 m
ALPHA WIRE 782001 BK001	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	Black	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned	304.8 m	1000 ft	20 AWG
ALPHA WIRE 782001 WH005	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	White	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned			20 AWG	100 ft	30.5 m
ALPHA WIRE 782001 GR005	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	Green	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned			20 AWG	100 ft	30.5 m
ALPHA WIRE 782001 WH001	2.44 mm	0.096 "	Hook-Up	-20 ░C	105 ░C	UL Style 1015/1230	0.81 mm	0.032 in	White	Solid	Poly-Vinyl Chloride (PVC)	600 V	Copper Tinned	304.8 m	1000 ft	20 AWG
