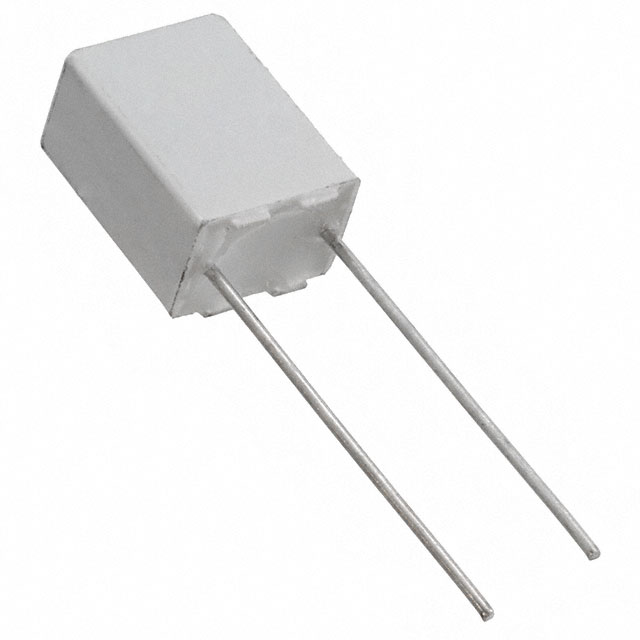

MMK10 Series

Manufacturer: KEMET

Catalog

CAP FILM 0.1UF 10% 250VDC RADIAL

Part	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Voltage Rating - DC	Capacitance	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Voltage Rating - AC	Mounting Type	Package / Case	Applications	Voltage Rating - DC
KEMET MMK10104K250A01L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	250 V	100000 pF	10 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	160 V	Through Hole	Radial	General Purpose
KEMET MMK10474K100A01L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	100 V	0.47 µF	10 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	63 V	Through Hole	Radial	General Purpose
KEMET MMK10223K400A01L16.5TR18	0.394 in	10 mm	100 °C	-55 C	PC Pins	400 V	0.022 µF	10 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	200 V	Through Hole	Radial	General Purpose
KEMET MMK10104K100A01L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	100 V	100000 pF	10 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	63 V	Through Hole	Radial	General Purpose
KEMET MMK10104J100A01L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	100 V	100000 pF	5 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	63 V	Through Hole	Radial	General Purpose

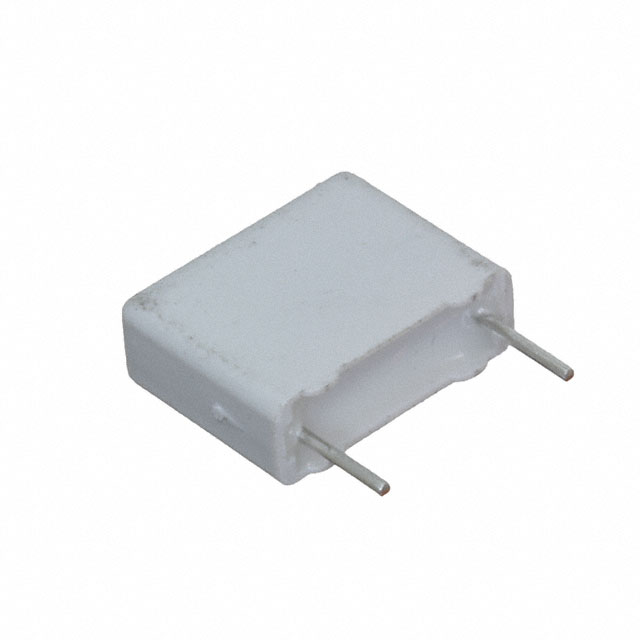

KEMET MMK10105J63A02L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	63 VDC	1 µF	5 %	13 mm	4.5 mm	0.512 "	0.177 "	10.5 mm	0.413 "	Polyester Metallized	40 V	Through Hole	Radial	General Purpose
KEMET MMK10472J1000A01L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	1 kVDC	0.0047 µF	5 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	250 V	Through Hole	Radial	General Purpose	1 kV
KEMET MMK10474J63A01L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	63 VDC	0.47 µF	5 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	40 V	Through Hole	Radial	General Purpose
KEMET MMK10473K250A01L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	250 V		10 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	160 V	Through Hole	Radial	General Purpose
KEMET MMK10102K400A01L4BULK	0.394 in	10 mm	100 °C	-55 C	PC Pins	400 V	0.001 µF	10 %	13 mm	4 mm	0.512 "	0.157 "	9 mm	0.354 in	Polyester Metallized	200 V	Through Hole	Radial	General Purpose
