FFB1324 Series
Manufacturer: Delta Electronics
Beta
⌘K

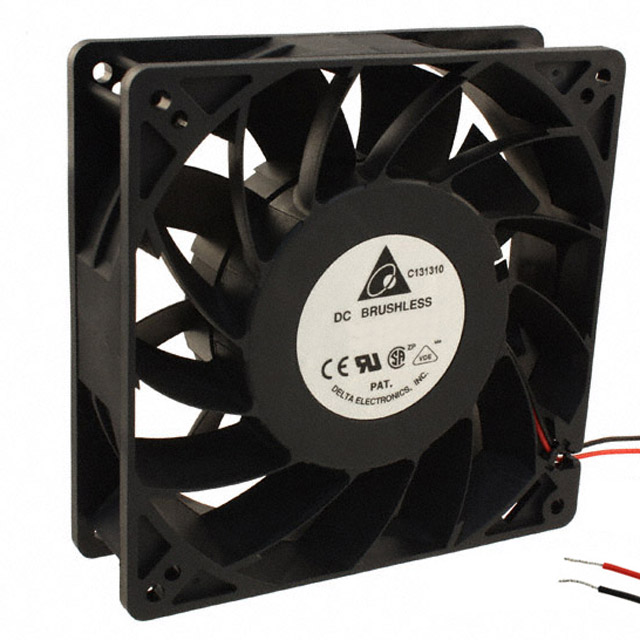

DC FAN AXIAL BALL BEARING 24V 14V TO 26.4V 160.01CFM 53DB 127 X 127 X 38MM
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Material - Blade | Lifetime @ Temp. | Approval Agency | Static Pressure | Static Pressure | Width [y] | Termination | Fan Type | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Voltage - Rated | Weight | Weight | Noise | Power (Watts) | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 600 mA | 14 VDC | 26.4 VDC | Plastic | Plastic | 70000 Hrs | CE CSA UL VDE | 125.5 Pa | 0.504 in H2O | 38 mm | 2 Wire Leads | Tubeaxial | 5 in | 5 " | 160 CFM | 4.48 m³/min | 70 °C | -10 °C | Ball | 24 VDC | 499 g | 1.1 lbs | 53 dB | 14.4 W | |
 Delta Electronics | 0.84 A | 14 VDC | 26.4 VDC | Plastic | Plastic | 70000 Hrs | CE CSA UL VDE | 159.9 Pa | 0.642 in H2O | 38 mm | 2 Wire Leads | Tubeaxial | 5 in | 5 " | 180 CFM | 5.04 mł/min | 70 °C | -10 °C | Ball | 24 VDC | 499 g | 1.1 lbs | 56.5 dB | 20.16 W | 3450 RPM |
 Delta Electronics | |||||||||||||||||||||||||
 Delta Electronics | 1.2 A | 14 VDC | 26.4 VDC | Plastic | Plastic | 70000 Hrs | CE CSA UL VDE | 38 mm | 2 Wire Leads | Tubeaxial | 5 in | 5 " | 200 CFM | 5.6 mł/min | 70 °C | -10 °C | Ball | 24 VDC | 499 g | 1.1 lbs | 59.5 dB | 28.8 W | 3850 RPM | ||
 Delta Electronics | 600 mA | 14 VDC | 26.4 VDC | Plastic | Plastic | 70000 Hrs | CE CSA UL VDE | 125.5 Pa | 0.504 in H2O | 38 mm | 2 Wire Leads | Tubeaxial | 5 in | 5 " | 160 CFM | 4.48 m³/min | 70 °C | -10 °C | Ball | 24 VDC | 499 g | 1.1 lbs | 53 dB | 14.4 W |
