ATS-02F Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 70X70X25MM XCUT

...

Part	Attachment Method	Type	Fin Height	Fin Height	Shape	Material	Package Cooled	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Width [x]	Width [x]	Material Finish	Width [y]	Width [y]	Fin Height [z]	Fin Height [z]	Width	Width	Length	Length	Fin Height [custom]	Fin Height [custom]
Advanced Thermal Solutions Inc. ATS-02F-30-C1-R0	Push Pin	Top Mount	25 mm	0.984 in	Fins Square	Aluminum	ASIC BGA CPU LGA	5.3 °C/W	2.756 in	70 mm	70 mm	2.756 "	Blue Anodized

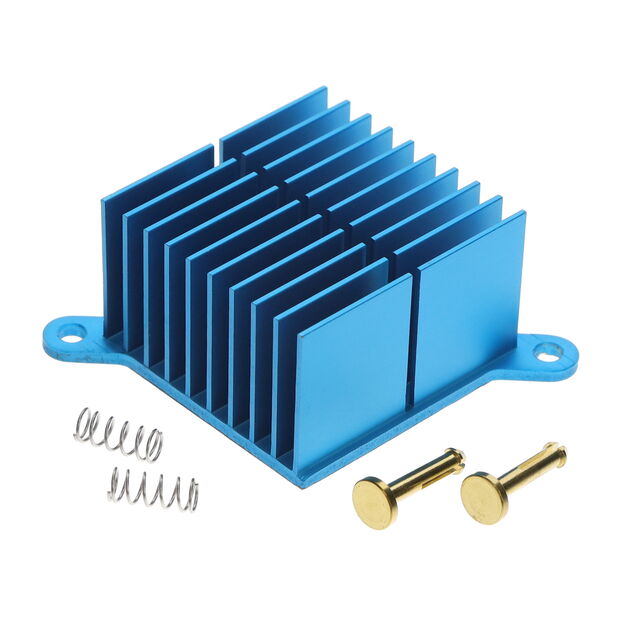

Advanced Thermal Solutions Inc. ATS-02F-184-C2-R0	Push Pin	Top Mount	25 mm	0.984 in	Fins Square	Aluminum	ASIC BGA CPU LGA	4.14 °C/W					Blue Anodized	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02F-14-C3-R0	Push Pin	Top Mount			Fins Square	Aluminum	ASIC BGA CPU LGA	10.05 °C/W	1.969 in	50 mm	50 mm	1.969 in	Blue Anodized			20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-02F-71-C3-R0	Push Pin	Top Mount			Fins Square	Aluminum	ASIC BGA CPU LGA	6.77 °C/W	1.772 in	45 mm			Blue Anodized			30 mm	1.181 in	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-02F-178-C3-R0	Push Pin	Top Mount	25 mm	0.984 in	Fins Square	Aluminum	ASIC BGA CPU LGA	4.95 °C/W	1.378 "				Blue Anodized	1.378 "	35 mm					35 mm

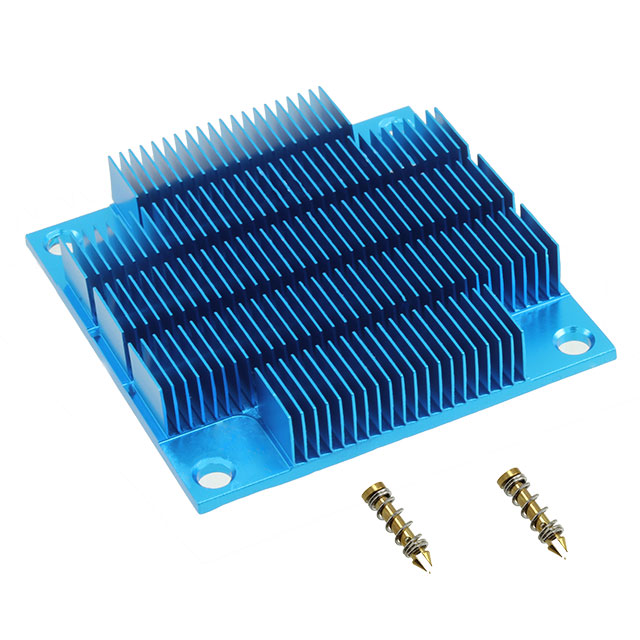

Advanced Thermal Solutions Inc. ATS-02F-107-C3-R1	Push Pin	Top Mount	9.5 mm	0.374 in	Fins Square	Aluminum	ASIC BGA CPU LGA	28.03 °C/W	1.969 in	50 mm	50 mm	1.969 in	Blue Anodized
Advanced Thermal Solutions Inc. ATS-02F-141-C2-R0	Push Pin	Top Mount			Fins Square	Aluminum	ASIC BGA CPU LGA	15.71 °C/W			30 mm	1.181 in	Blue Anodized							0.03 m	1.181 in	0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-02F-59-C3-R0	Push Pin	Top Mount			Fins Square	Aluminum	ASIC BGA CPU LGA	8.08 °C/W	1.378 "				Blue Anodized	1.378 "	35 mm	30 mm	1.181 in			35 mm

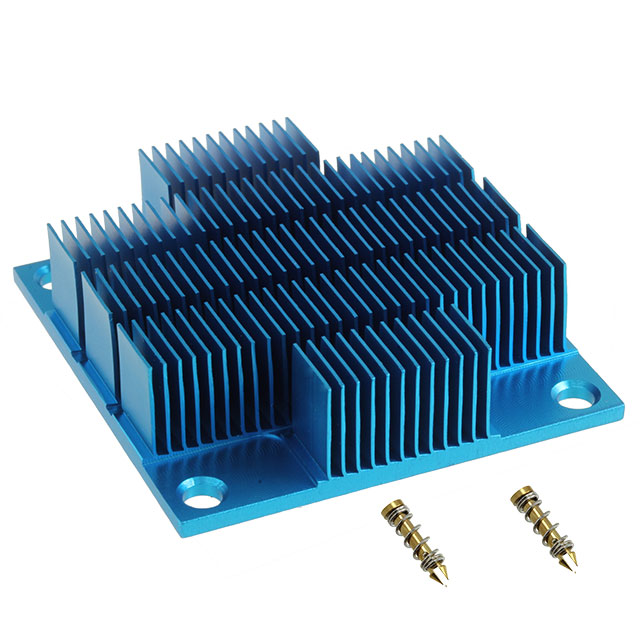

Advanced Thermal Solutions Inc. ATS-02F-106-C1-R1	Push Pin	Top Mount	12.7 mm	0.5 "	Fins Square	Aluminum	ASIC BGA CPU LGA	26.57 °C/W	1.772 in	45 mm			Blue Anodized					1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-02F-43-C2-R0	Push Pin	Top Mount			Fins Square	Aluminum	ASIC BGA CPU LGA	28.85 °C/W	0.984 in		25 mm	0.984 "	Blue Anodized							25 mm		0.394 "	10 mm
