396-019 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 19POS 0.125

...

Part	Termination Rows	Material - Insulation	Contact Finish	Number of Positions	Read Out	Color	Number of Positions/Bay/Row	Gender	Pitch	Pitch	Termination	Flange Feature	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Material	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Features

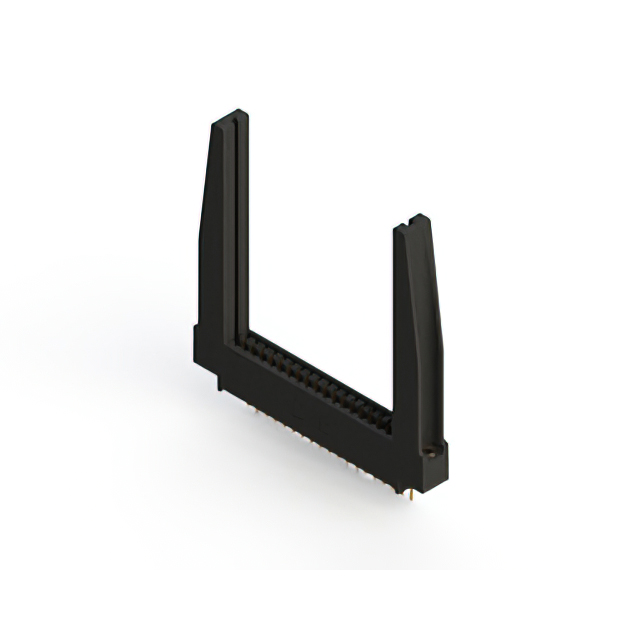

EDAC Inc. 396-019-522-678	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Solder	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1
EDAC Inc. 396-019-541-602	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Wire Wrap		0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1	3.25 mm	0.128 "
EDAC Inc. 396-019-540-112	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Wire Wrap	Flush Mount Side Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1	3.25 mm	0.128 "
EDAC Inc. 396-019-520-103	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Solder	Floating Bobbin Flush Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1	2.95 mm	0.116 "

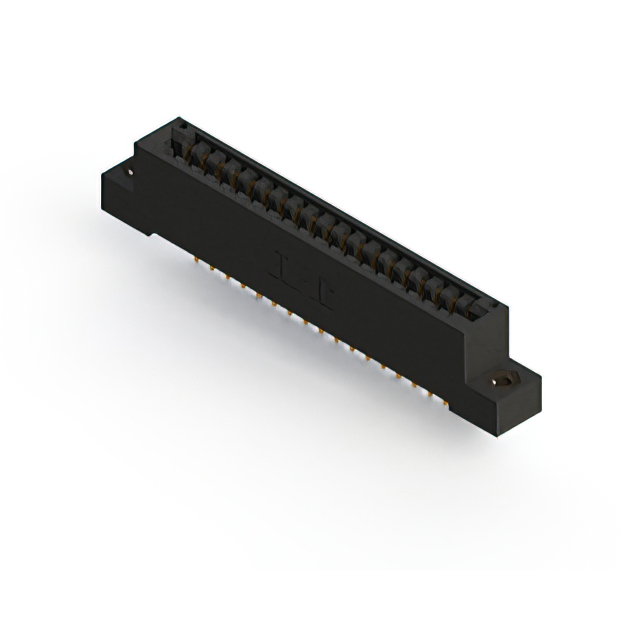

EDAC Inc. 396-019-541-108	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1
EDAC Inc. 396-019-520-107	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Solder	Flush Mount M3 Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1

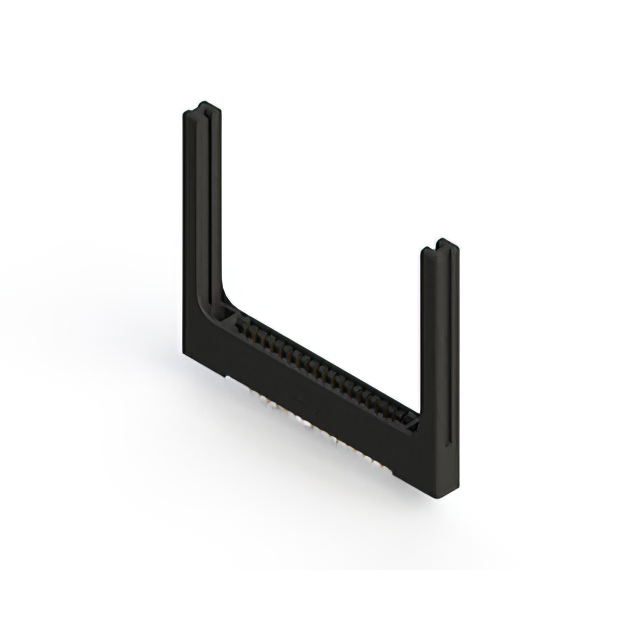

EDAC Inc. 396-019-540-158	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1			Card Guides
EDAC Inc. 396-019-521-658	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Solder	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1			Card Guides

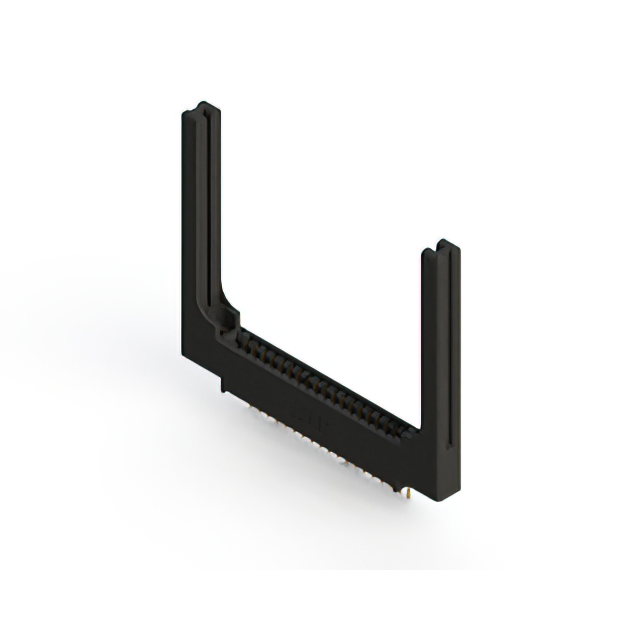

EDAC Inc. 396-019-526-658	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Solder	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1			Card Guides

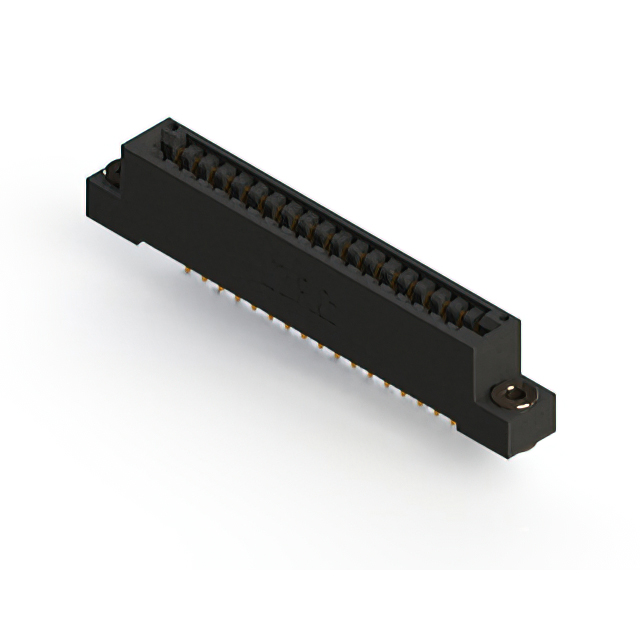

EDAC Inc. 396-019-540-103	1	Polyester Thermoplastic	Gold	19	Single	Black	19	Female	3.18 mm	0.125 in	Wire Wrap	Floating Bobbin Flush Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Cantilever	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Single Edge	Copper Alloy	1	2.95 mm	0.116 "
