627W17W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB PLG 17POS PNL MT SLDR

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Dielectric Material	Contact Type	Connector Type	Flange Feature	Number of Positions	Features	Termination	Mounting Type	Number of Rows [custom]	Ingress Protection	Connector Style	Shell Material, Finish	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Current Rating (Amps)	Flange Feature
EDAC Inc. 627W17W2624-1ND	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Board Side (M3)	17	Board Lock Grounding Indents Shielded	Solder	Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	30 Áin	0.76 Ám	Gold	10A 5A
EDAC Inc. 627W17W2624-3N5	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Board Side (4-40)	17	Board Lock Grounding Indents Shielded	Solder	Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	30 Áin	0.76 Ám	Gold		5 A 30 A
EDAC Inc. 627W17W2624-1NA	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Housing/Shell (M3)	17	Grounding Indents Shielded	Solder	Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	30 Áin	0.76 Ám	Gold	10A 5A
EDAC Inc. 627W17W2324-4N5	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Board Side (4-40)	17	Board Lock Grounding Indents Shielded	Solder	Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	15 µin	0.38 µm	Gold		5 A 40 A
EDAC Inc. 627W17W2624-3ND	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Board Side (M3)	17	Board Lock Grounding Indents Shielded	Solder	Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	30 Áin	0.76 Ám	Gold		5 A 30 A
EDAC Inc. 627W17W2124-3NA	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Housing/Shell (M3)	17	Grounding Indents Shielded	Solder	Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	5 µin	0.127 µm	Gold		5 A 30 A

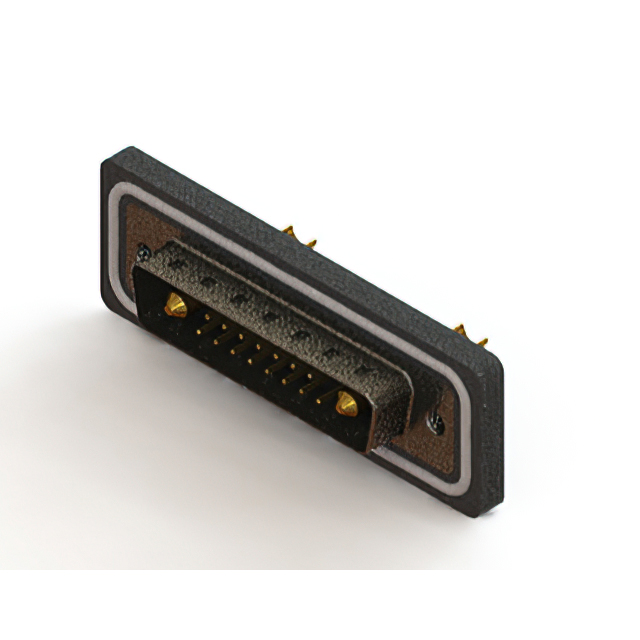

EDAC Inc. 627W17W2622-3N2	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Housing/Shell	17	Grounding Indents Shielded		Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	30 Áin	0.76 Ám	Gold		5 A 30 A	4-40

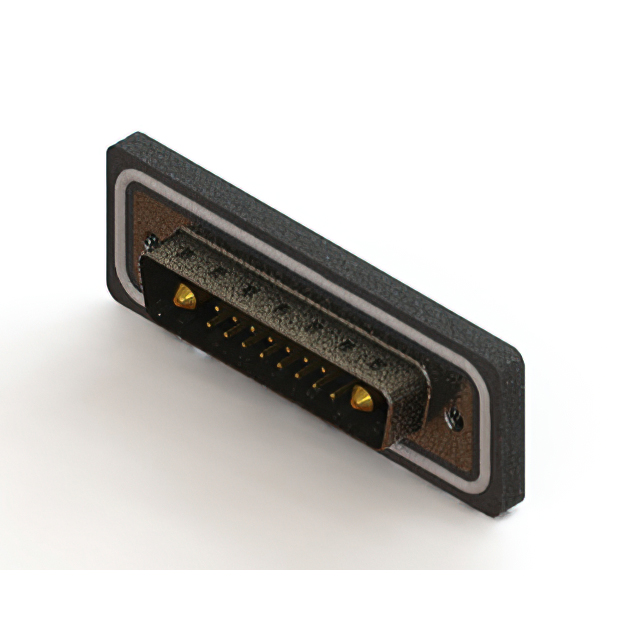

EDAC Inc. 627W17W2624-3N2	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Housing/Shell	17	Grounding Indents Shielded	Solder	Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	30 Áin	0.76 Ám	Gold		5 A 30 A	4-40
EDAC Inc. 627W17W2322-2NA	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Housing/Shell (M3)	17	Grounding Indents Shielded		Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	15 µin	0.38 µm	Gold	20A 5A
EDAC Inc. 627W17W2624-1N2	Copper Alloy	85 °C	-25 °C	125 VDC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Signal and Power	Plug Male Pins	Housing/Shell	17	Grounding Indents Shielded	Solder	Panel Mount Through Hole	2	IP67 - Dust Tight Waterproof	Combo D-Sub	Nickel Plated Steel	UL94 V-0	B DB	17W2	3	30 Áin	0.76 Ám	Gold	10A 5A		4-40
