VBA100 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

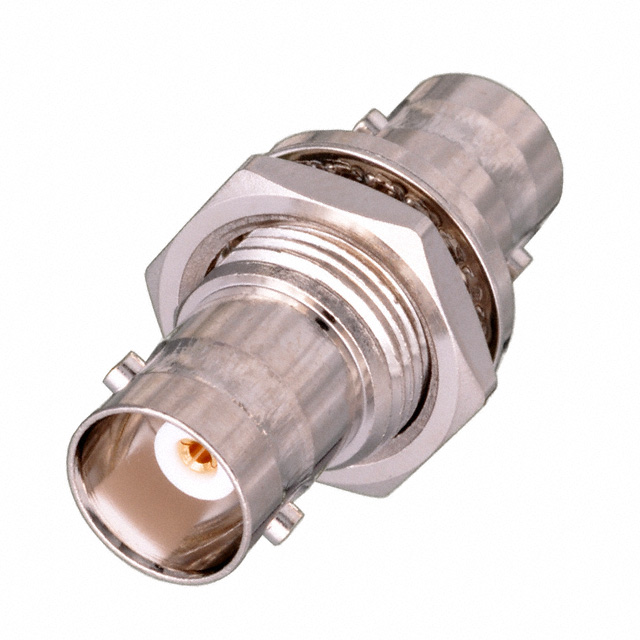

CONN ADAPT JACK-JACK BNC 50 OHM
| Part | Body Material | Mating Cycles | Dielectric Material | Body Finish | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Center Contact Material | Frequency - Max [Max] | Center Gender | Impedance | Mounting Type | Convert To (Adapter End) | Conversion Type | Center Contact Plating | Mounting Feature | Fastening Type | Style | Adapter Series | Convert From (Adapter End) | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Brass | 500 | Polyoxymethylene (POM) | Nickel | 1 Connector 1 Lockwasher 1 Nut | -55 C | 85 °C | 0.2 dB | Brass | 4 GHz | Female to Female | 50 Ohms | Panel Mount | BNC Jack Female Socket | Same Series | Gold | Bulkhead | Bayonet Lock | Straight | BNC to BNC | BNC Jack Female Socket | Jack to Jack |
 Cinch Connectivity Solutions | Female to Female | 75 Ohms | Panel Mount | BNC Jack Female Socket | Same Series | Bulkhead | Bayonet Lock | BNC to BNC | BNC Jack Female Socket | Jack to Jack |
