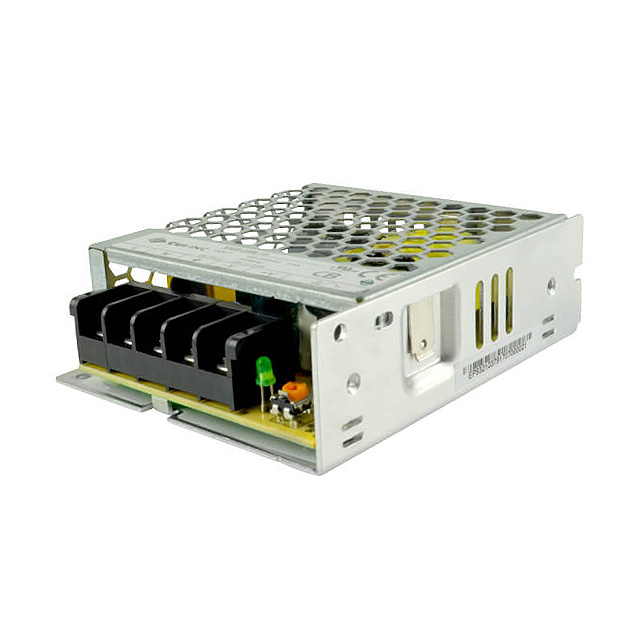

VGS-35B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 48V 36W
| Part | Number of Outputs | Current - Output 1 | Voltage - Isolation | Applications | Efficiency | Voltage - Output 1 | Features | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Type | Mounting Type | Approval Agency | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 | 750 mA | 1.5 kV | ITE (Commercial) | 88 % | 48 V | Adjustable Output Universal Input | 264 VAC | 90 VAC | 70 °C | -20 °C | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | Enclosed | Chassis Mount | CB Scheme EN FCC IEC SIQ TUV UL | 36 W | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in |
CUI Inc. | 1 | 3 A | 1.5 kV | ITE (Commercial) | 85 % | 12 V | Adjustable Output Universal Input | 264 VAC | 90 VAC | 70 °C | -20 °C | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | Enclosed | Chassis Mount | CB Scheme EN FCC IEC SIQ TUV UL | 36 W | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in |
 CUI Inc. | 1 | 1.5 A | 1.5 kV | ITE (Commercial) | 88 % | 24 V | Adjustable Output Universal Input | 264 VAC | 90 VAC | 70 °C | -20 °C | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | Enclosed | Chassis Mount | CB Scheme EN FCC IEC SIQ TUV UL | 36 W | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in |
