M80-703 Series

Catalog

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 45 CONTACTS, THROUGH HOLE

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Color	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Fastening Type	Contact Finish - Post	Termination	Features	Contact Shape	Contact Finish - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Material Flammability Rating	Mounting Type	Voltage Rating	Contact Material	Insulation Material	Shrouding	Style	Number of Positions

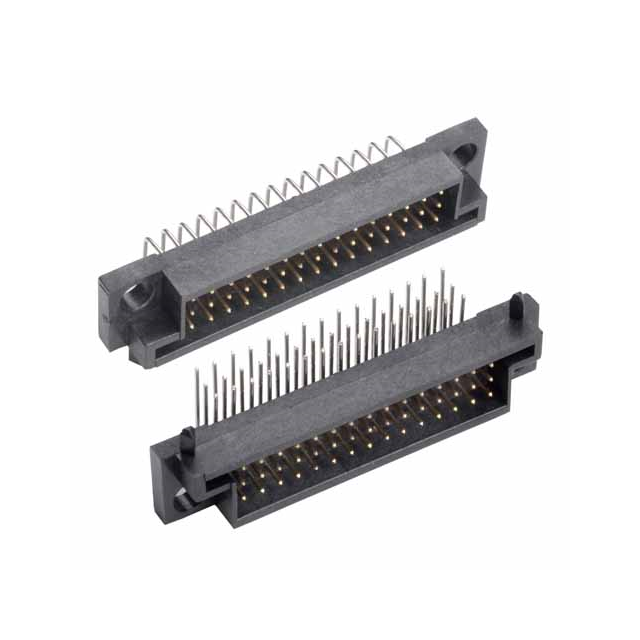

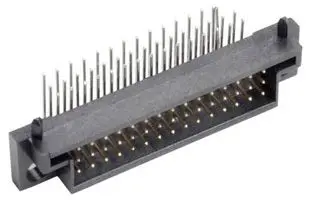

Harwin Inc. M80-7034522	118.1 µin	3 µm	Black	Header	2 mm	0.079 in	3	All	0.079 "	2 mm	2.2 A	Push-Pull	Tin-Lead	Solder	Board Guide Mating Flange	Circular	Gold	Male Pin	-55 C	125 °C	29.5 µin	0.75 µm	0.091 "	2.3 mm	0.358 "	9.1 mm	UL94 V-0	Right Angle Through Hole	120 VDC	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Shrouded - 4 Wall	Board to Board Cable	45
Harwin Inc. M80-7035122	118.1 µin	3 µm	Black	Header	2 mm	0.079 in	3	All	0.079 "	2 mm	2.2 A	Push-Pull	Tin-Lead	Solder	Board Guide Mating Flange	Circular	Gold	Male Pin	-55 C	125 °C	29.5 µin	0.75 µm	0.091 "	2.3 mm	0.358 "	9.1 mm	UL94 V-0	Right Angle Through Hole	120 VDC	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Shrouded - 4 Wall	Board to Board Cable	51

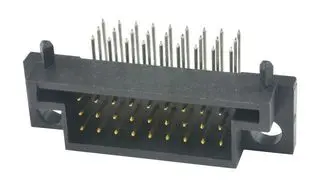

Harwin Inc. M80-7032722	118.1 µin	3 µm	Black	Header	2 mm	0.079 in	3	All	0.079 "	2 mm	2.2 A	Push-Pull	Tin-Lead	Solder	Board Guide Mating Flange	Circular	Gold	Male Pin	-55 C	125 °C	29.5 µin	0.75 µm	0.091 "	2.3 mm	0.358 "	9.1 mm	UL94 V-0	Right Angle Through Hole	120 VDC	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Shrouded - 4 Wall	Board to Board Cable	27
