845-112 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 112POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Read Out	Contact Type	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Material	Pitch	Pitch	Features
EDAC Inc. 845-112-540-212	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Wire Wrap	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm

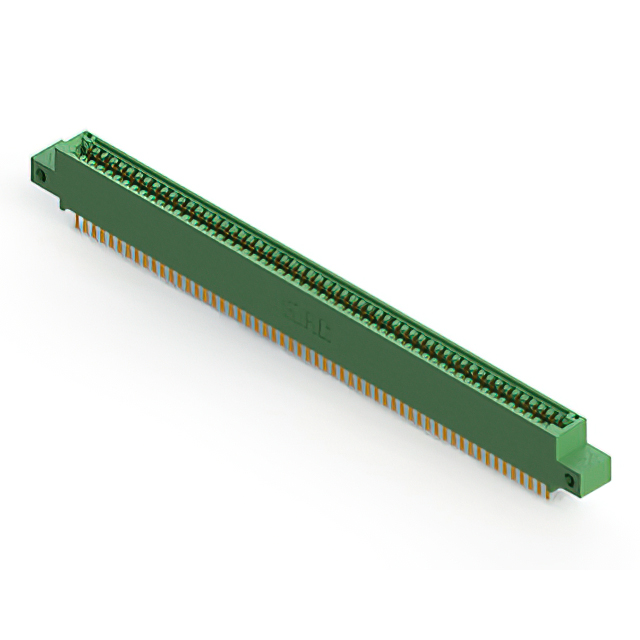

EDAC Inc. 845-112-520-512	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	Side Mount Opening Unthreaded	0.128 "	3.25 mm	2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm
EDAC Inc. 845-112-524-808	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	4-40 Threaded Insert Top Mount Opening			2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm
EDAC Inc. 845-112-521-203	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	Floating Bobbin Flush Mount	0.116 "	2.95 mm	2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm
EDAC Inc. 845-112-540-201	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Wire Wrap	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56				2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm
EDAC Inc. 845-112-542-212	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Wire Wrap	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm
EDAC Inc. 845-112-544-807	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Wire Wrap	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	M3 Threaded Insert Top Mount Opening			2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm

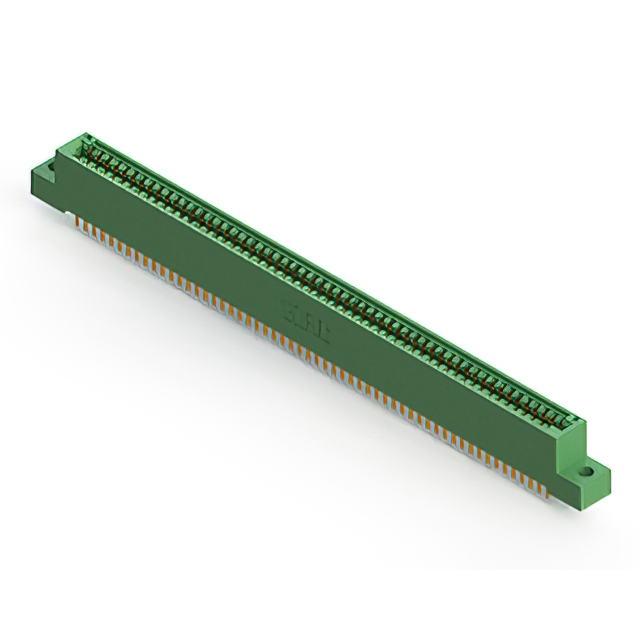

EDAC Inc. 845-112-521-204	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm

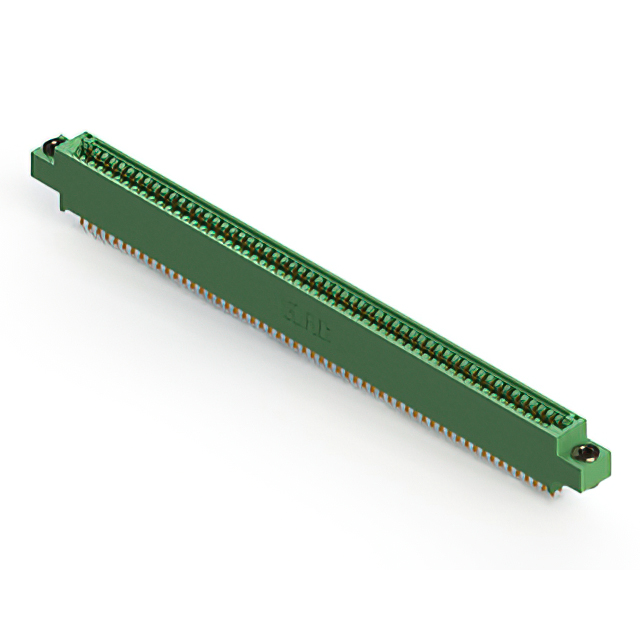

EDAC Inc. 845-112-556-803	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Copper Alloy	0.1 "	2.54 mm	Card Extender
EDAC Inc. 845-112-500-508	Diallyl Phthalate (DAP)	2	112	Green	125 °C	-40 C	Solder Eyelet(s)	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	56	4-40 Threaded Insert Top Mount Opening			2	Dual	Cantilever	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	0.1 "	2.54 mm
