837-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K

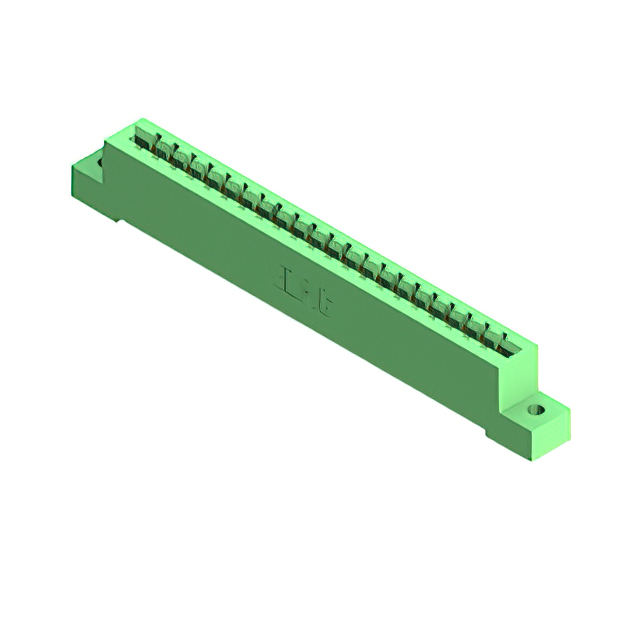

CONN EDGE SGL FMALE 21POS 0.156
| Part | Termination Rows | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Rows | Contact Finish | Termination | Pitch | Pitch | Color | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Read Out | Number of Positions/Bay/Row [custom] | Contact Type | Number of Positions | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Solder | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Through Hole | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Single Edge | Female |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Solder | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Through Hole | 3.25 mm | 0.128 " | Non Specified - Single Edge | Female | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Solder | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Right Angle Through Hole | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " | Non Specified - Single Edge | Female |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Wire Wrap | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Through Hole | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Single Edge | Female |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Solder | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Through Hole | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Female | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Solder | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Right Angle Through Hole | Non Specified - Single Edge | Female | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Solder | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Right Angle Through Hole | 3.96 mm | 0.156 " | Non Specified - Single Edge | Female | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Solder | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Through Hole | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " | Non Specified - Single Edge | Female |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Wire Wrap | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Through Hole | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Single Edge | Female |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Copper Alloy | 1 | Gold | Solder | 3.96 mm | 0.156 in | Green | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 21 | Cantilever | 21 | Right Angle Through Hole | 3.96 mm | 0.156 " | Non Specified - Single Edge | Female |
