895-016 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 16POS 0.100

...

Part	Material - Insulation	Termination Rows	Read Out	Flange Feature	Gender	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions/Bay/Row	Number of Rows	Number of Positions	Termination	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Finish	Pitch	Pitch	Contact Material	Color	Termination Rows [custom]	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]

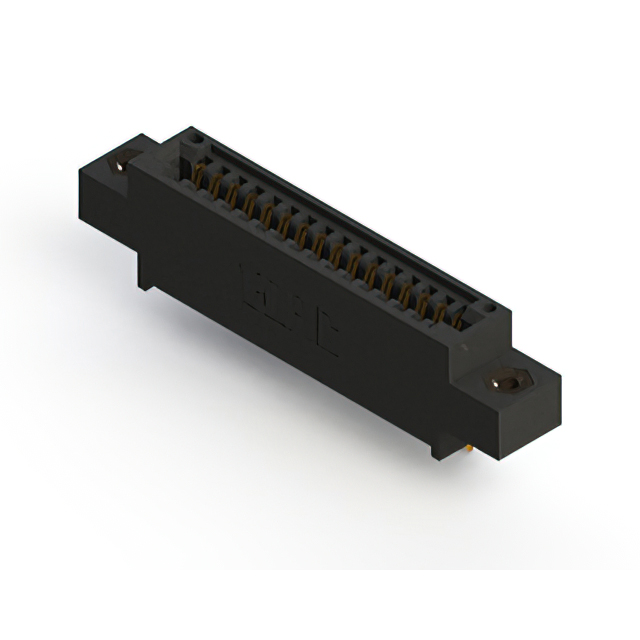

EDAC Inc. 895-016-500-608	Polyphenylene Sulfide (PPS)	1	Single	4-40 Threaded Insert Top Mount Opening	Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	16	1	16	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black

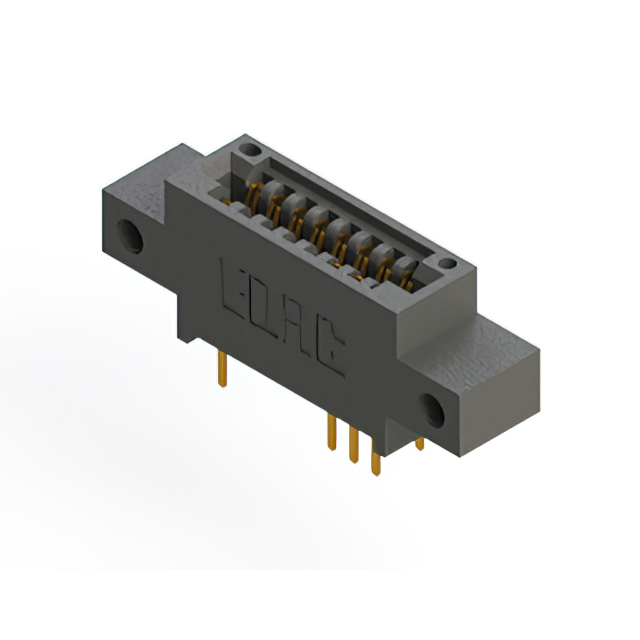

EDAC Inc. 895-016-520-812	Polyphenylene Sulfide (PPS)		Dual	Side Mount Opening Unthreaded	Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	8		16	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black	2	2	0.128 "	3.25 mm

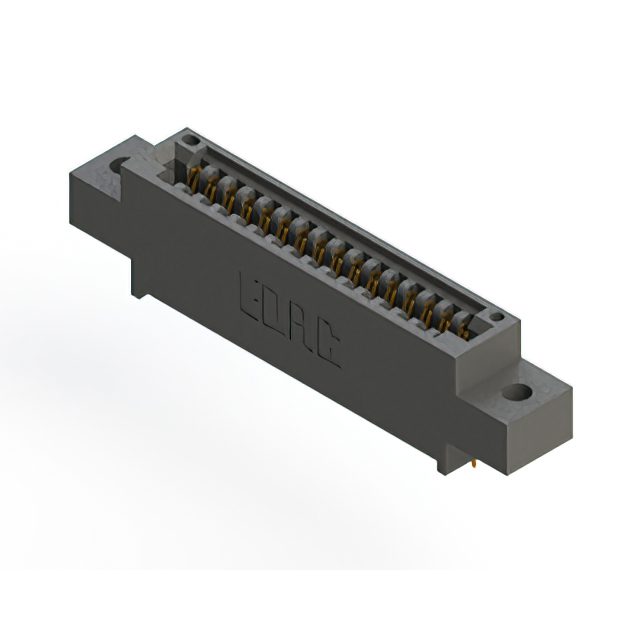

EDAC Inc. 895-016-524-602	Polyphenylene Sulfide (PPS)	1	Single		Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	16	1	16	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black			0.128 "	3.25 mm

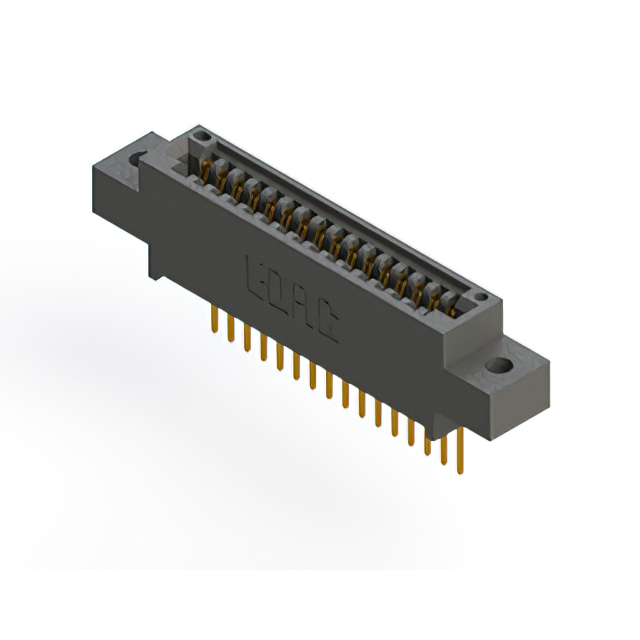

EDAC Inc. 895-016-523-602	Polyphenylene Sulfide (PPS)	1	Single		Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	16	1	16	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black			0.128 "	3.25 mm
EDAC Inc. 895-016-525-201	Polyphenylene Sulfide (PPS)		Dual		Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	8		16	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black	2	2

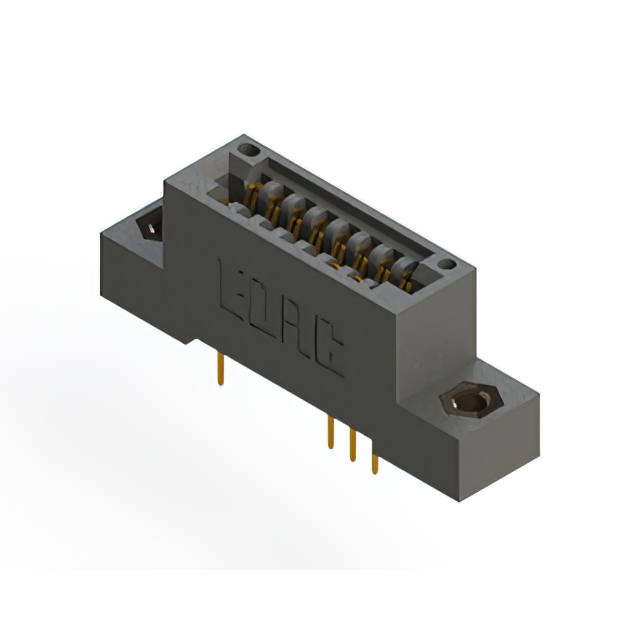

EDAC Inc. 895-016-524-207	Polyphenylene Sulfide (PPS)		Dual	Flush Mount M3 Threaded Insert Top Opening	Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	8		16	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black	2	2

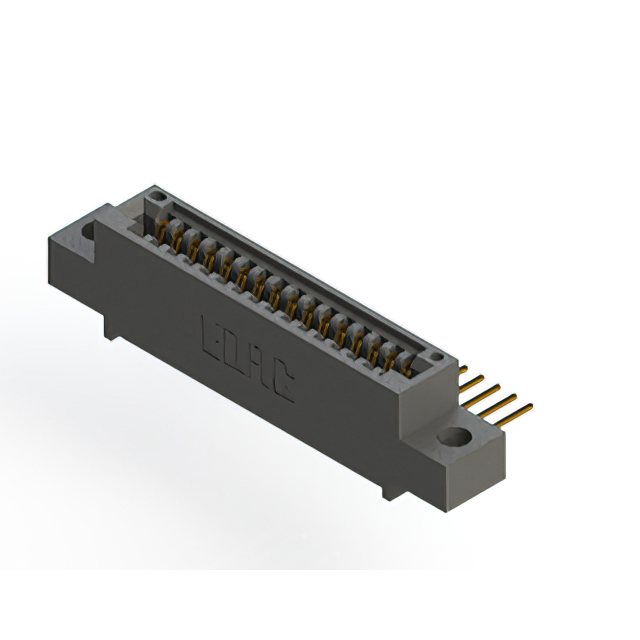

EDAC Inc. 895-016-559-404	Polyphenylene Sulfide (PPS)	1	Single		Female	Right Angle Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	16	1	16	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black			0.156 "	3.96 mm

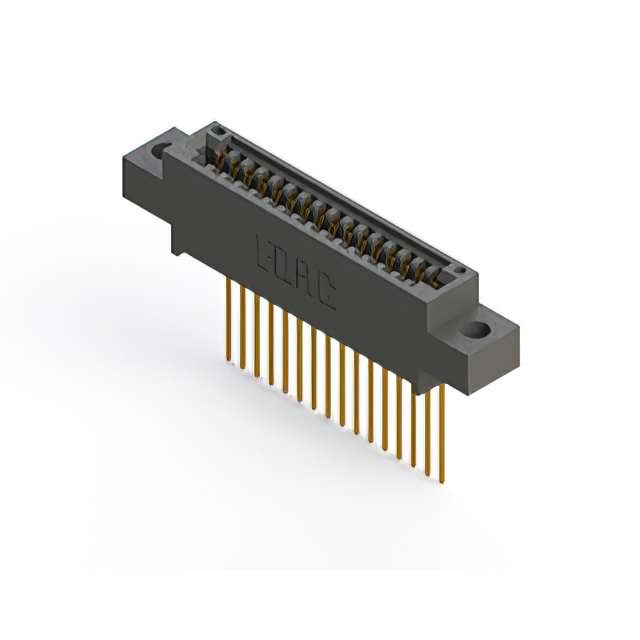

EDAC Inc. 895-016-541-604	Polyphenylene Sulfide (PPS)	1	Single		Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	16	1	16	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black			0.156 "	3.96 mm

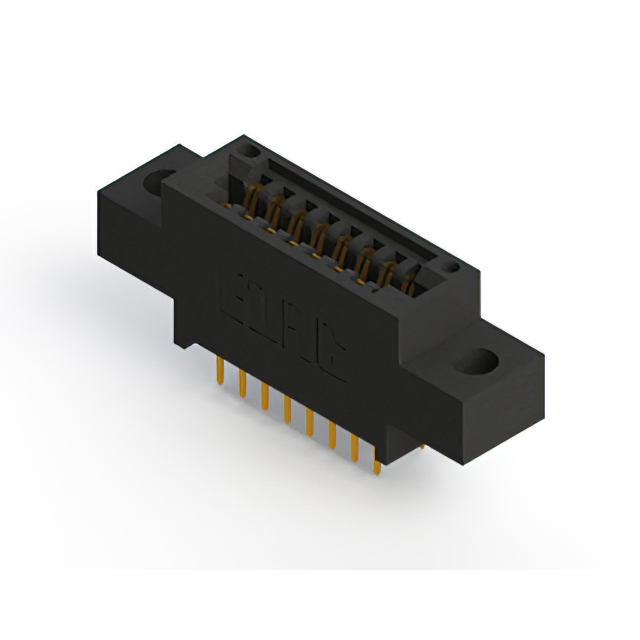

EDAC Inc. 895-016-525-804	Polyphenylene Sulfide (PPS)		Dual		Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	8		16	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black	2	2	0.156 "	3.96 mm

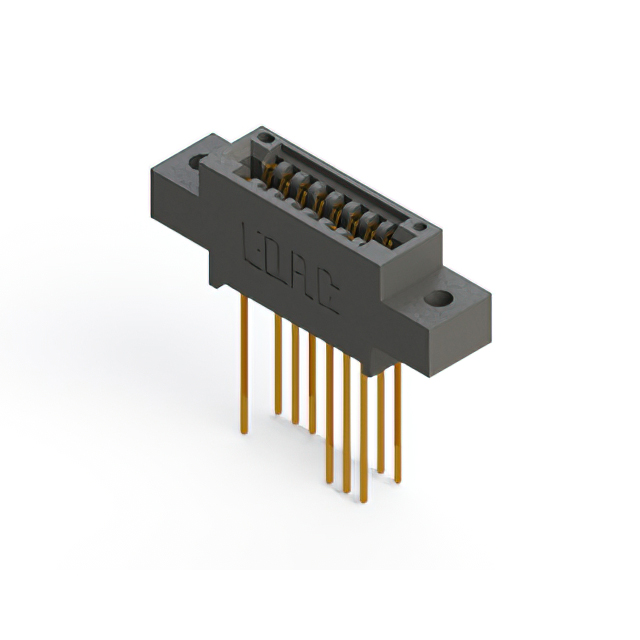

EDAC Inc. 895-016-541-802	Polyphenylene Sulfide (PPS)		Dual		Female	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Cantilever	8		16	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	0.1 "	2.54 mm	Copper Alloy	Black	2	2	0.128 "	3.25 mm
