A-DSF 09 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

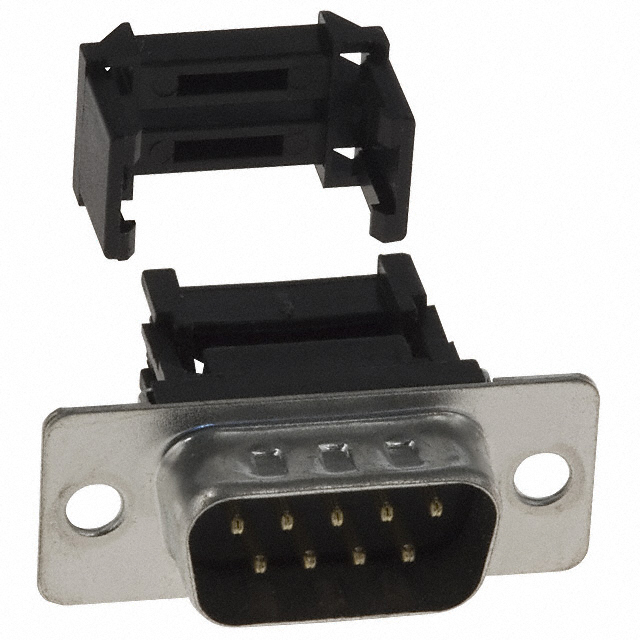

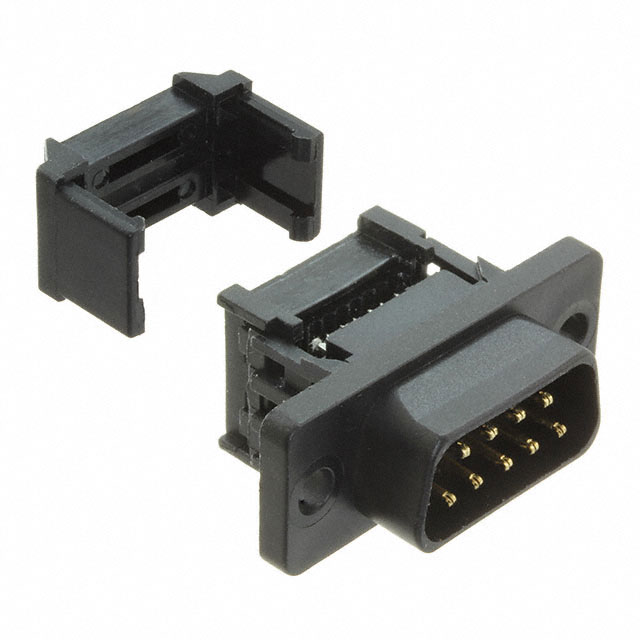

CONN D-SUB PLUG 9POS IDC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Contact Material | Color | Contact Finish Thickness | Number of Positions | Number of Rows [custom] | Connector Type | Connector Style | Flange Feature | Termination | Contact Finish | Features | Current Rating (Amps) | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | Flash | 9 | 2 | Plug Male Pins | D-Sub | Housing/Shell (Unthreaded) | IDC Ribbon Cable | Gold | Feed Through Grounding Indents Strain Relief | 3 A | Free Hanging (In-Line) | 1 | DE E | UL94 V-0 | Signal |
 Assmann WSW Components | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 9 | 2 | Plug Male Pins | D-Sub | Housing/Shell (Unthreaded) | IDC Ribbon Cable | Feed Through Strain Relief | 3 A | Free Hanging (In-Line) | 1 | DE E | UL94 V-0 | Signal |
