SSB7F Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN BARRIER STRIP 2CIRC 0.438"

Part	Material - Insulation	Terminal Screw Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Terminal Screw Finish	Material Flammability Rating	Wire Gauge	Top Termination	Bottom Termination	Current Rating (Amps)	Voltage Rating	Barrier Type	Number of Circuits	Number of Wire Entries	Color	Terminal Block Type	Pitch [x]	Pitch [x]	Number of Rows	Features	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits [custom]

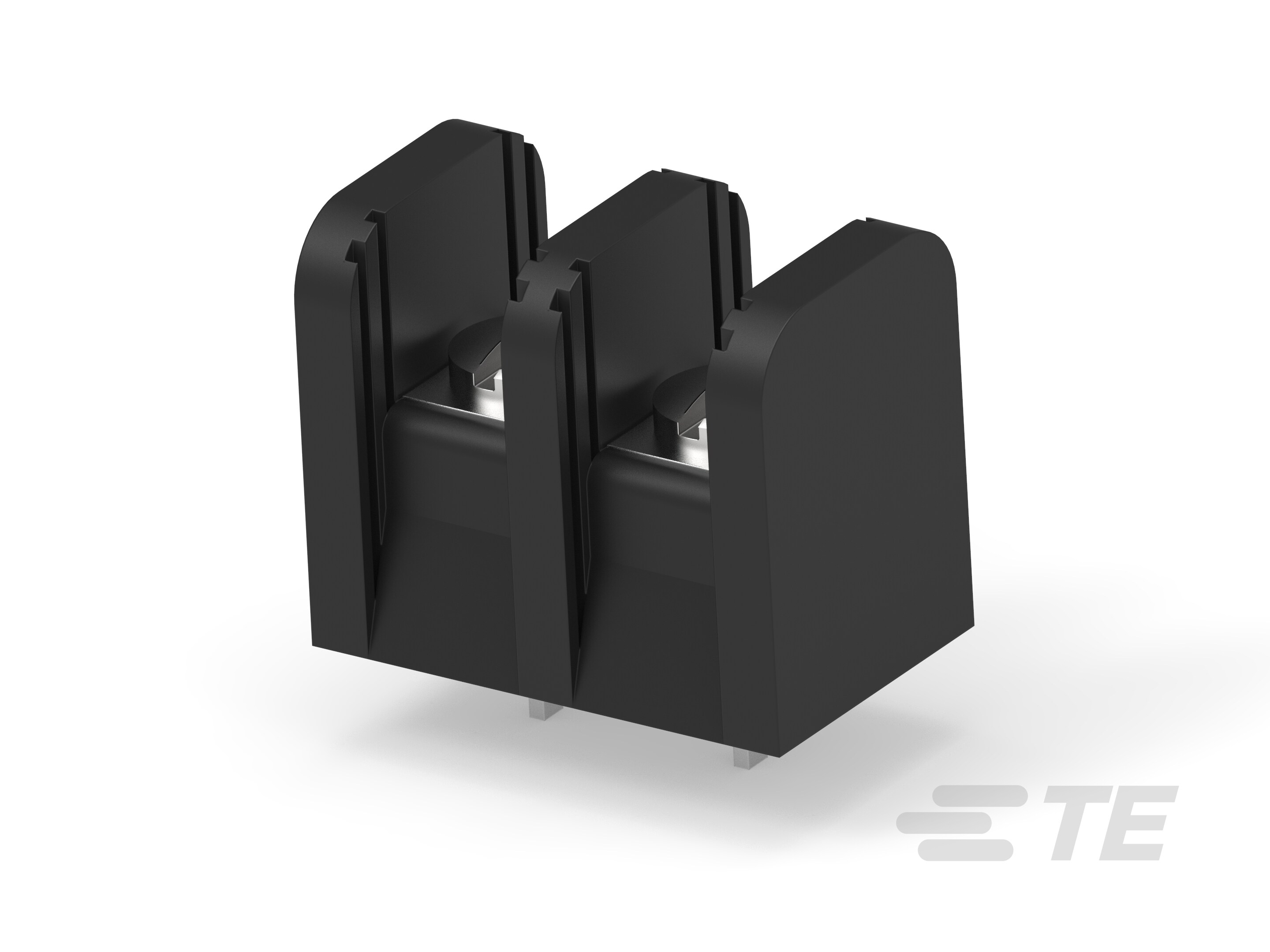

TE Connectivity AMP Connectors SSB7FP020201	Thermoplastic	Steel	Through Hole	105 ░C	-60 °C	Clear Chromate Zinc	UL94 V-2	12 AWG	Screws	PC Pin	20 A	600 V	2 Wall (Dual)	2	2	Black	Barrier Block	0.438 in	11.12 mm	1
TE Connectivity AMP Connectors SSB7FP18020212	Thermoplastic	Steel	Through Hole	105 ░C	-60 °C	Clear Chromate Zinc	UL94 V-2	12 AWG	Screws	PC Pin	20 A	600 V	2 Wall (Dual)	18	18	Black	Barrier Block	0.438 in	11.12 mm	1	Positions Stamped
TE Connectivity AMP Connectors SSB7FP130201	Thermoplastic	Steel	Through Hole	105 ░C	-60 °C	Clear Chromate Zinc	UL94 V-2	12 AWG	Screws	PC Pin	20 A	600 V	2 Wall (Dual)	13	13	Black	Barrier Block	0.438 in	11.12 mm	1
TE Connectivity AMP Connectors SSB7FP050402	Thermoplastic	Steel	Through Hole	105 ░C	-60 °C	Clear Chromate Zinc	UL94 V-2		Screws with Captive Plate	PC Pin	20 A	600 V	2 Wall (Dual)	5	5	Black	Barrier Block	0.438 in	11.12 mm	1		22 AWG	12 AWG
TE Connectivity AMP Connectors SSB7FM030202	Thermoplastic	Steel	Chassis Panel Through Hole	105 ░C	-60 °C	Clear Chromate Zinc	UL94 V-2		Screws with Captive Plate	PC Pin	20 A	600 V	2 Wall (Dual)	3	3	Black	Barrier Block	0.438 in	11.12 mm	1	Flange	22 AWG	12 AWG
TE Connectivity AMP Connectors SSB7FP030202	Thermoplastic	Steel	Through Hole	105 ░C	-60 °C	Clear Chromate Zinc	UL94 V-2	12 AWG	Screws	PC Pin	20 A	600 V	2 Wall (Dual)	3	3	Black	Barrier Block	0.438 in	11.12 mm	1
TE Connectivity AMP Connectors SSB7FP090202	Thermoplastic	Steel	Through Hole	105 ░C	-60 °C	Clear Chromate Zinc	UL94 V-2	12 AWG	Screws	PC Pin	20 A	600 V	2 Wall (Dual)		9	Black	Barrier Block	0.438 in	11.12 mm	1				9
